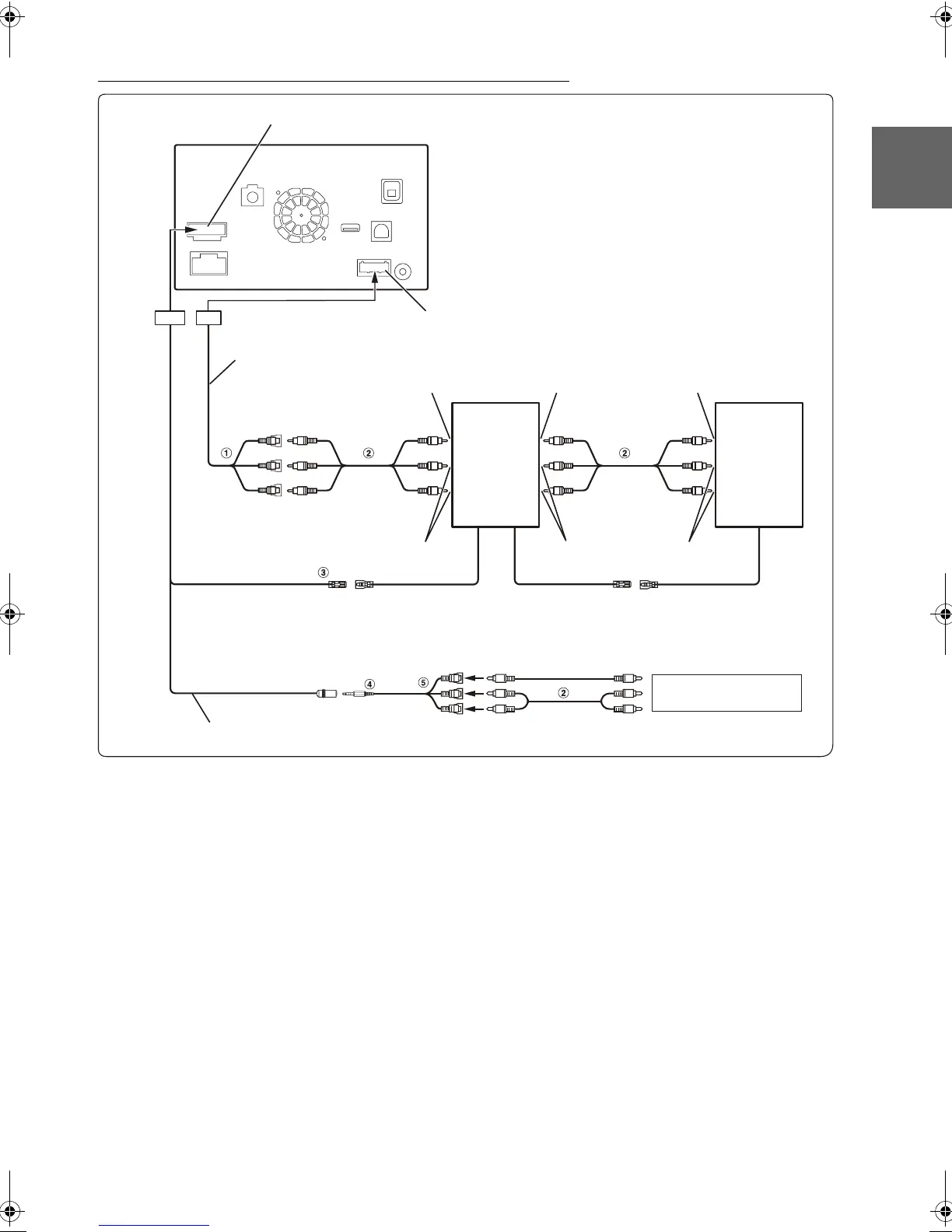

Connection of a Mobile Digital TV Receiver/USB Player and DVD Changer
1 Video/Audio Input Connectors (AUX INPUT)
2 RCA Extension Cable (Sold Separately)
3 Remote Control Output Lead (Brown)
Connect this lead to the remote control input lead. This lead
outputs the controlling signals from the remote control.
4 AV/RCA interface cable (4-pole mini AV plug to 3-
RCA) (sold separately)
5 Video/Audio Input Connectors
YELLOW is for input video, RED is right and WHITE is left
input the audio.
• You can connect one more external input device only when the “Primary Name” is set to “DVB-T.” Refer to “Setting the Primary AUX Name (AUX
Setup)” (page 46).
• To connect an external input device to the iPod VIDEO connector, set “AUX3 In Sel.” to “AUX3.” Refer to “Setting the AUX3” (page47).
Camera/Remote Connector
To Video Output terminal
(Yellow)
(Red)
(White)
AUX/PRE OUT Connector
Mobile Digital
TV Receiver
(Sold
separately) or
USB Player
(sold
separately)
Camera/Remote cable
REMOTE OUT
(Brown)
REMOTE IN
(White/Brown)
REMOTE OUT
(White/Brown)
REMOTE IN
(White/Brown)
To Audio Input
Terminal
DVD Changer
(Sold
separately)
AUX/PRE OUT cable
To Video Input Terminal
To Video Output terminal
To Audio Output Terminal
To Audio Output
Terminal
DVD Player
(Sold separately)
To Video Output terminal
To Audio Output terminal
DVE-5207, etc.
