Alpine LC70-69P - Wiring and Connections; Wire Convergence and LED Connections; Regulator Power and Harness Routing

51 52
V
12.3
DC

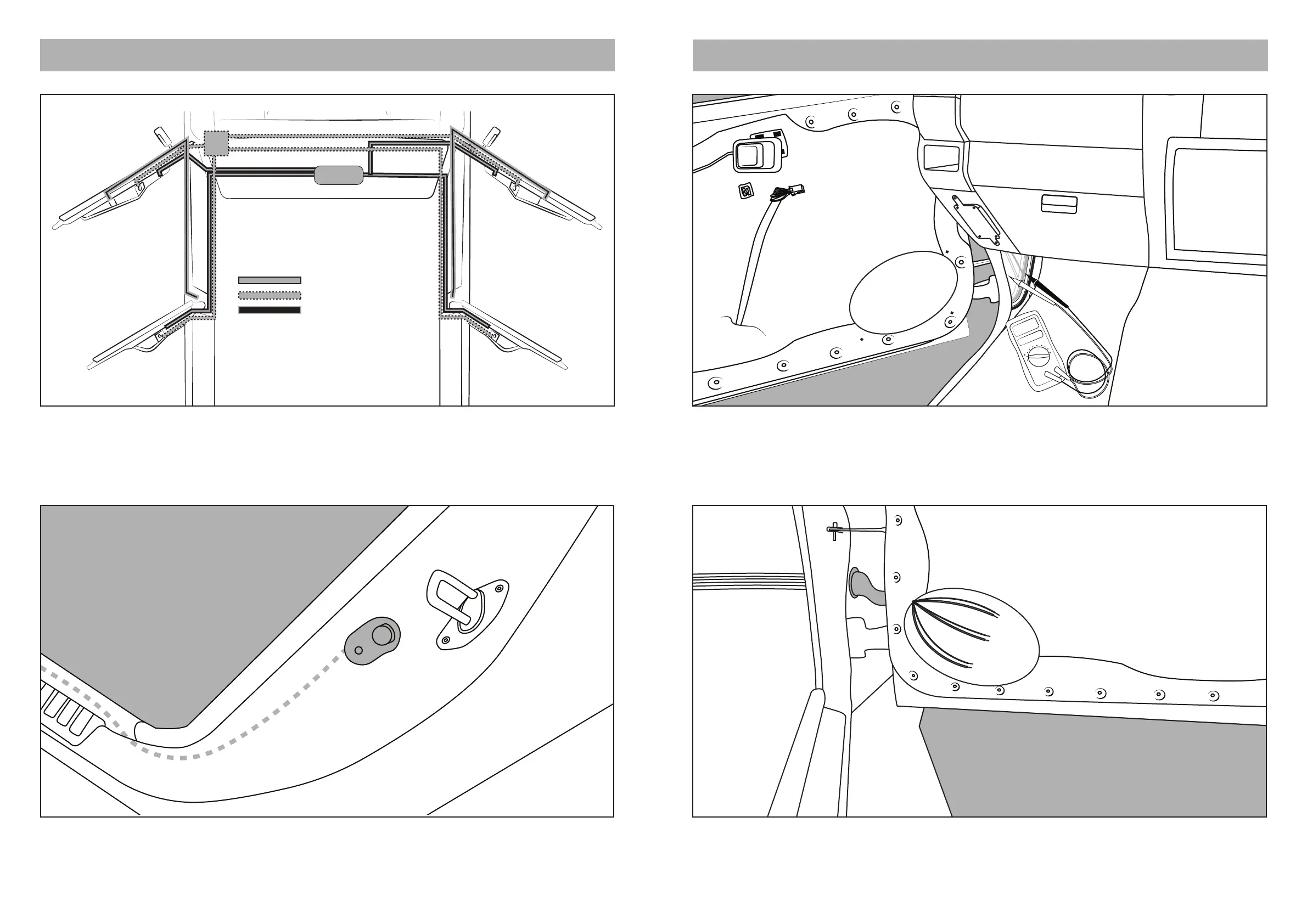

Wiring: Voltage Regulator
81
Enough wire length to converge on each corrosponding wire purpose will be required.
ie. USB’s to Regulator, LED’s to constant power and door trigger and Speakers to
headunit/amplier.
Speakers
USB
LED
The LED lights will need enough length to tap into a CONSTANT power source. The
POSITITIVE wire needs to run along the door sill to tap into the GROUND wire that
comes o the back of the interior light switch in the B pillar.
82
Wiring: LED Lights
Finally nd a accesory power source and suitable ground to connect to the Input of
the regulator.
83
84
Using personally desired method run the wiring harnesses (including +/- Speaker
wire)from the doors into the vehicle. Taking note of the recommendations above.
Enough slack in the door cards to make the nal connections to the exocasing will be
required.
