Installation: Front Exocasing

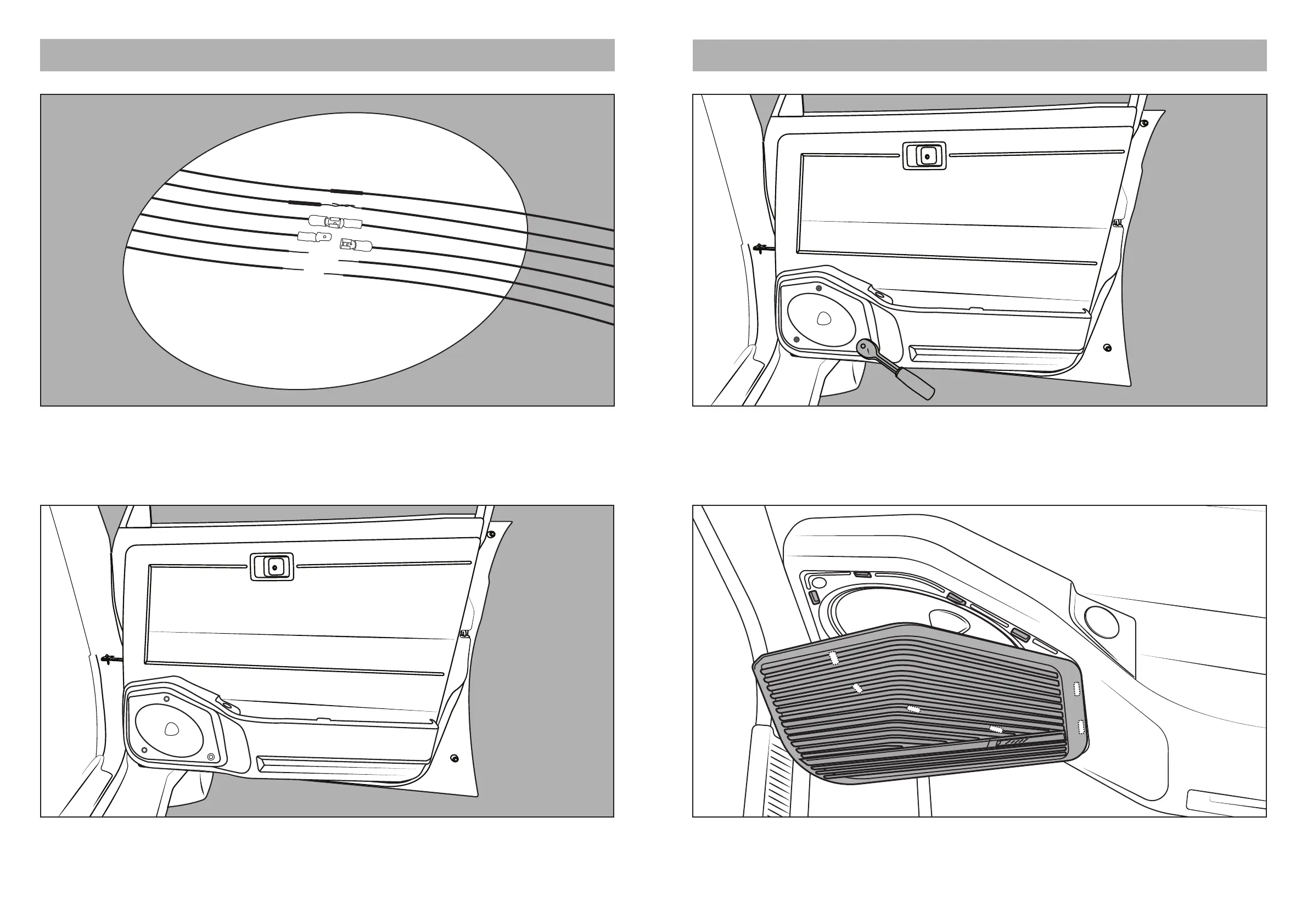

Once the wiring is complete. Mount the assembly to the door. Ensure all plastic push
clips are mounted back onto the door card.
With the +/- Speaker wire,+/- USB wire and +/- LED wire routed into the front doors
of the vehicle. Terminate them into crimp connectors or solder them to the loose wires
on the door/exocasing assembly.
85
86
Installation: Front Exocasing
Attach the Tough Grill. Do this by placing the back edge of the grill into the Pod on a
slight angle. Firmly push in each grill clip in a BACK to FRONT order.
With the door card/assembly mounted, secure it with the M6 bolts supplied with the
10mm socket and wrench.
