Alpine R2-A75M User Manual

ALPINE R2-A75M/R2-A60F 68-44781Z33-B (EN/DE/FR/ES/IT/SE/RU/CS)ALPINE R2-A75M/R2-A60F 68-44781Z33-B (EN/DE/FR/ES/IT/SE/RU/CS)
15-EN
EN
ES
DE
IT
RU
FR
SE
CS
4 Speaker + Subwoofer / 2 Amplifier System (Connection example with R2-A60F)
[LO]
[LO]
Head Unit, etc.
(Top inner panel)
(Top inner panel)
Remote Turn-On Lead
Input Level Switch
Input Level Switch
R2-A75M
R2-A60F
• For details on the connection of R2-A60F, see “Basic Connection Diagram for R2-A60F” (page 15).
Basic Connection Diagram for R2-A60F
Speaker Output Terminals
Remote Bass Control (optional)
Pre-Out Jacks
RCA Input Jacks
Fuse
Power Supply Terminal
Ground Lead (sold separately)
Remote Turn-On Lead (sold separately)
Battery Lead (sold separately)
Head Unit, etc.
Front Output
Rear Output
Subwoofer Output
Front Speakers
Rear Speaker
Subwoofer
Dual Voice Coil Subwoofer
RCA Extension Cable (sold separately)
Speaker-RCA Conversion Cable (sold separately)
Y-Adapter (sold separately)
Front Speakers (Tweeter)
Front Speakers (Midrange)
For R2-A60F, change the Input Channel Selector Switch ( ) setting according to the number of channels of
the speaker input.
4-Channel Input: 2-Channel Input:
Input Channel Selector Switch
(CHANNEL-3/4)
3/4
1/2

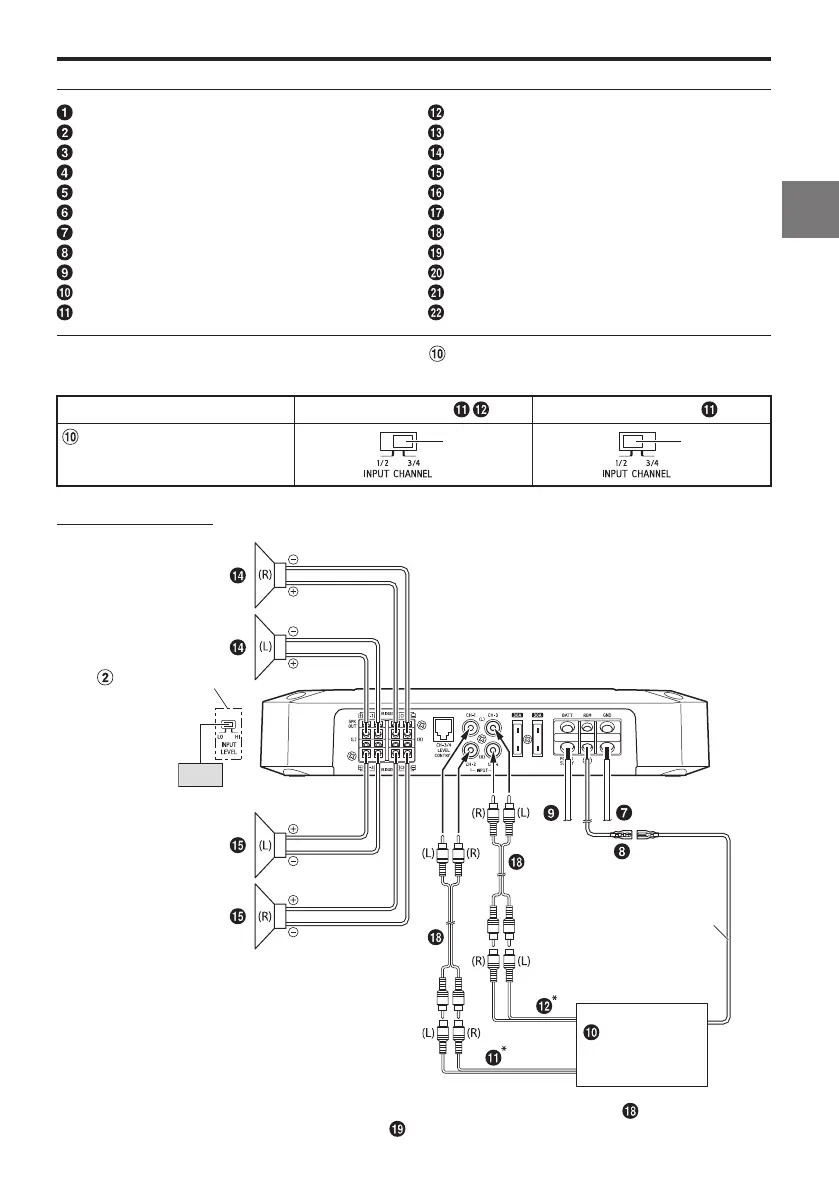

4 Speaker System
[LO]
Head Unit, etc.
Remote Turn-On Lead
(Top inner panel)
Input Level Switch
* If the connected head unit does not have an RCA Output and RCA Extension Cable ( ) cannot be used,
you can use the Speaker-RCA Conversion Cable ( ) (sold separately). For details on how to make a
connection, see “About Connecting to the Speaker Input Level System” (page 19).
