Alpine STi Series Gas Fireplaces
16

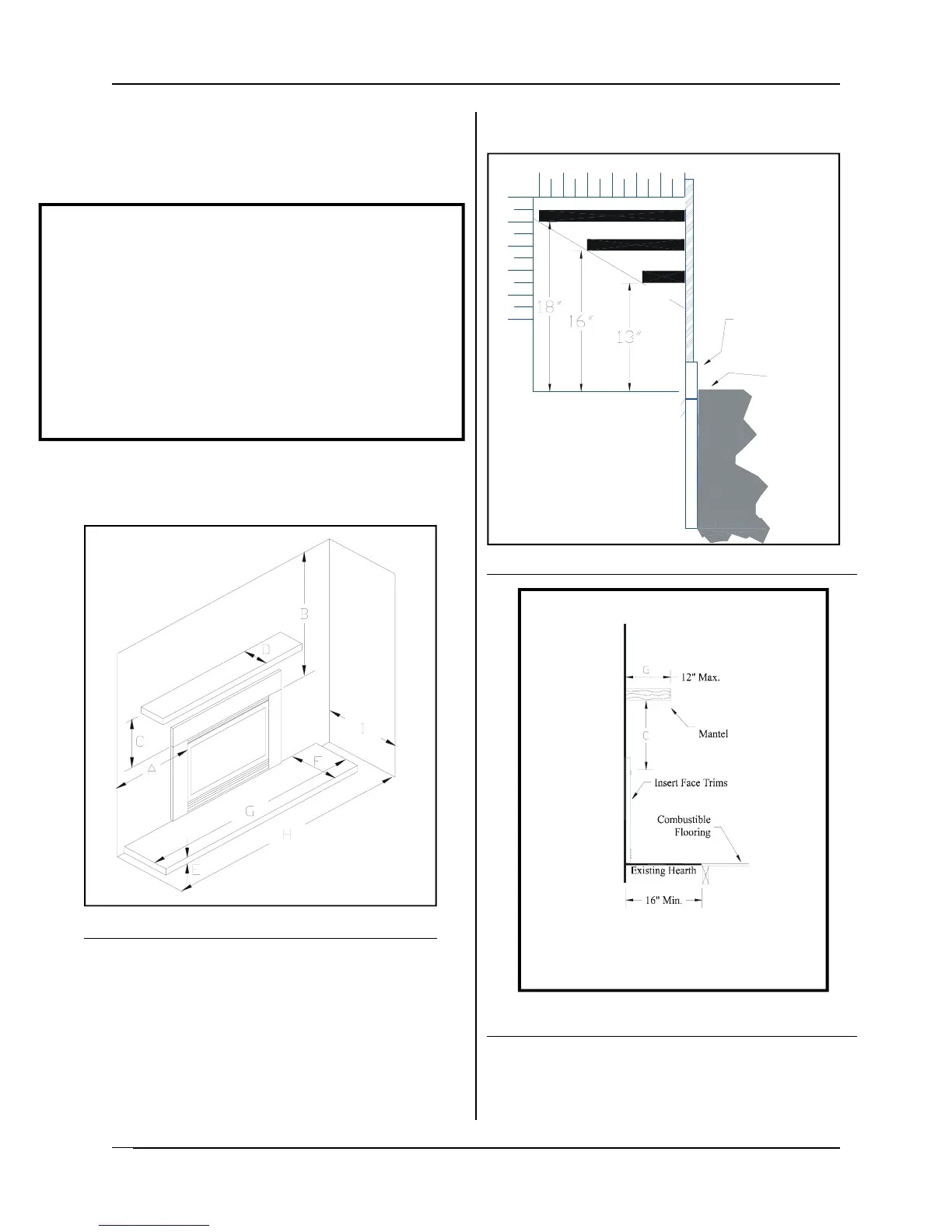

Fig. 16 - Hearth Clearances
Clearances to Combustibles Unless Specified (Fig. 14)
Sides A 10”
Ceiling B 48”
Mantel Clearance C See Figure 15 & 16
Mantle Depth D See Figure 15 & 16
Hearth Height E 0”
Hearth Depth F 16”
Minimum Hearth Width G 48”
CLEARANCE REQUIREMENTS
CLEARANCE REQUIREMENTS
Fig. 15 - Mantel Clearance
Fig. 14 - Insert Clearances
0
24681012
10
12
14
16
18
23
side view of
fireplace
3-1/2"
mantel
8" mantel
12" mantel
top of
fireplace
faceplate top
