Alpine TDA7556R User Manual

TDA-7556R/7659R/ TDA-7556R/7659R/
TDA-7552R/7550R TDA-7552R/7550R

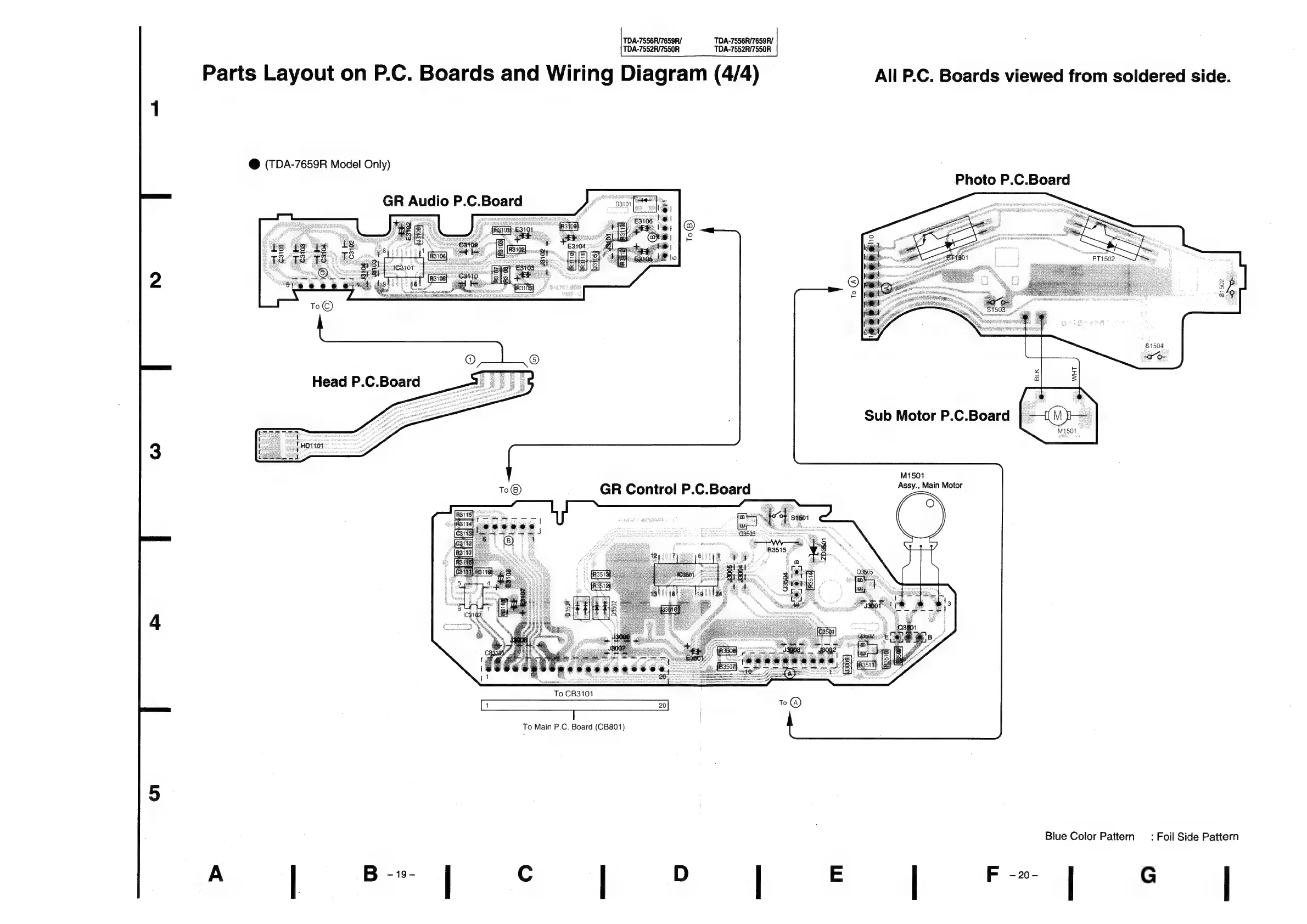

Parts Layout on P.C. Boards and Wiring Diagram (4/4) All P.C. Boards viewed from soldered side.
@ (TDA-7659R Model Only)
Photo P.C.Board
GR Audio P.C.Board
Head P.C.Board
Sub Motor P.C.Board
M1501
Assy., Main Motor
GR Control P.C.Board
To CB3101
To Main P.C. Board (CB801)
Blue Color Pattern _ : Foil Side Pattern
A } Be | Cc D E F -20- G
