TDA-7556R/7659R/
TDA-7552R/7550R

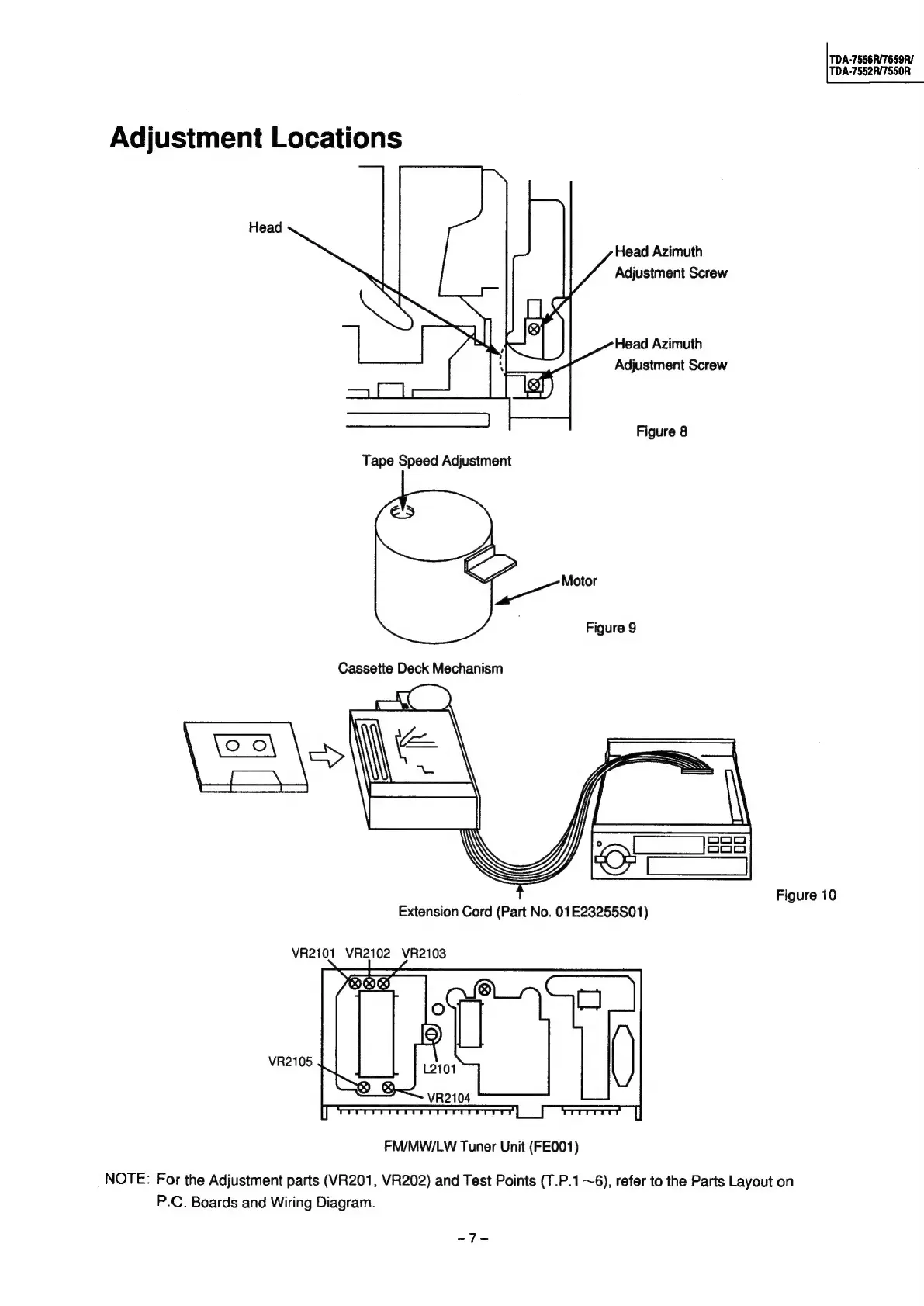

Adjustment Locations
Head
Head Azimuth
Adjustment Screw
Head Azimuth
Adjustment Screw
Figure 8
Tape Speed Adjustment
Pee Motor
Figure 9
Cassette Deck Mechanism
Figure 10
Extension Cord (Part No. 01E23255S01)
VR2101 VR2102 VR2103
VR2105
FM/MW/LW Tuner Unit (FE001)
NOTE:
For
the
Adjustment
parts
(VR201,
VR202)
and
Test
Points
(T.P.1~6),
refer
to
the
Parts
Layout
on
P.C.
Boards and
Wiring
Diagram.
