Alpine X-A90V - Advanced System Wiring Configurations; 4 Speaker + Dual Voice Coil Subwoofer; 2 Speaker + 2 Subwoofer Bridged

17-EN

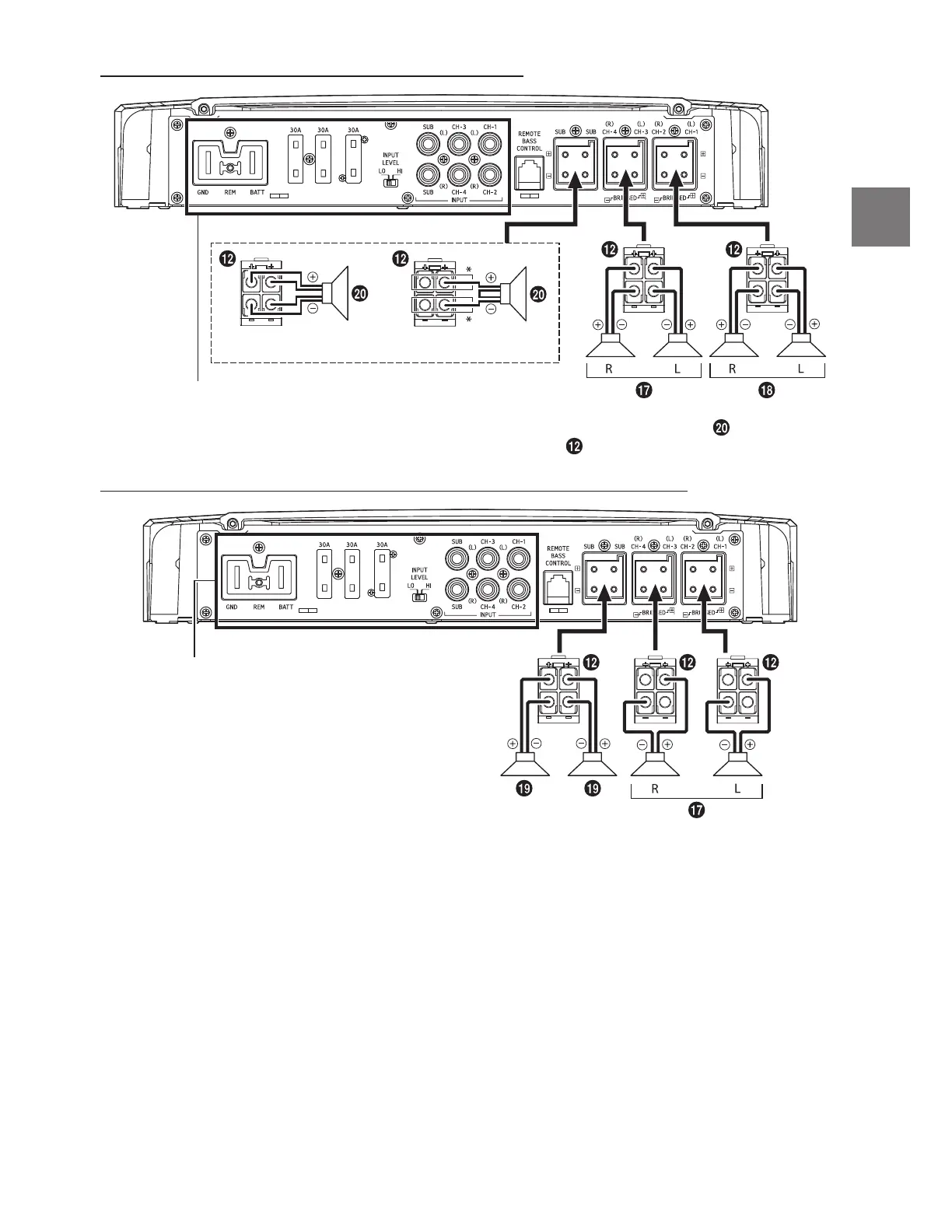

4 Speaker + Dual Voice Coil Subwoofer System
Refer to “4 Speaker + Subwoofer System” (page 16).
Parallel connection Series connection
* In the case of using a series connection, the lead wire of the Dual Voice Coil Subwoofer ( ) can be
connected to either the (+)/(-) terminal of the Speaker Connector (
).
2 Speaker + 2 Subwoofer (MONO) System (Bridged Connections)
Refer to “4 Speaker + Subwoofer System” (page 16).
