Alpine X110 - Page 148

Chevrolet/GMC
FULL SIZE TRUCK z 10/17
To Vehicle Connectors
CAN I/F
GPS
USB
EXT. KEY W.REMOTE POWER
SXM/DAB
PRE OUT
DISP. OUT
HDMI IN HDMI OUT
ANTENNA
iDatalink MAESTRO Module
18-pin Black
Connector
10-pin Black
Connector
3-pin Black
Connector
(Audio)
10-pin Green
Connector
(Vehicle signals)
3-pin Black
Connector
(Power)
4-pin Black
Connector
(Data)
Steering Wheel
T-Harness
10-pin Black
Connector
To OBDII Connector
Power/Speaker
16-pin Green Connector
OEM Audio
20-pin Gray Connector
Main Harness
Blue Power Antenna
Blue/White Amp Turn-on
Direct Camera Input
Key Harness External Display
DVD Player
External Display Power
HDMI Selector Box
AUX Power Connector
Power Harness
Remote Harness
Climate Control
Brown Rear Mon. Remote Out
Brown/White Rear Mon. Remote In
To Climate
Controller
To Steering
Wheel
Black - Ground
Yellow -12V+
Red - Acc 12V+
10-pin Gray
Connector
Direct Camera Adapter
OEM Camera Adapter
12-pin Gray Connector
Chime Speaker
Key Harness
X110-G

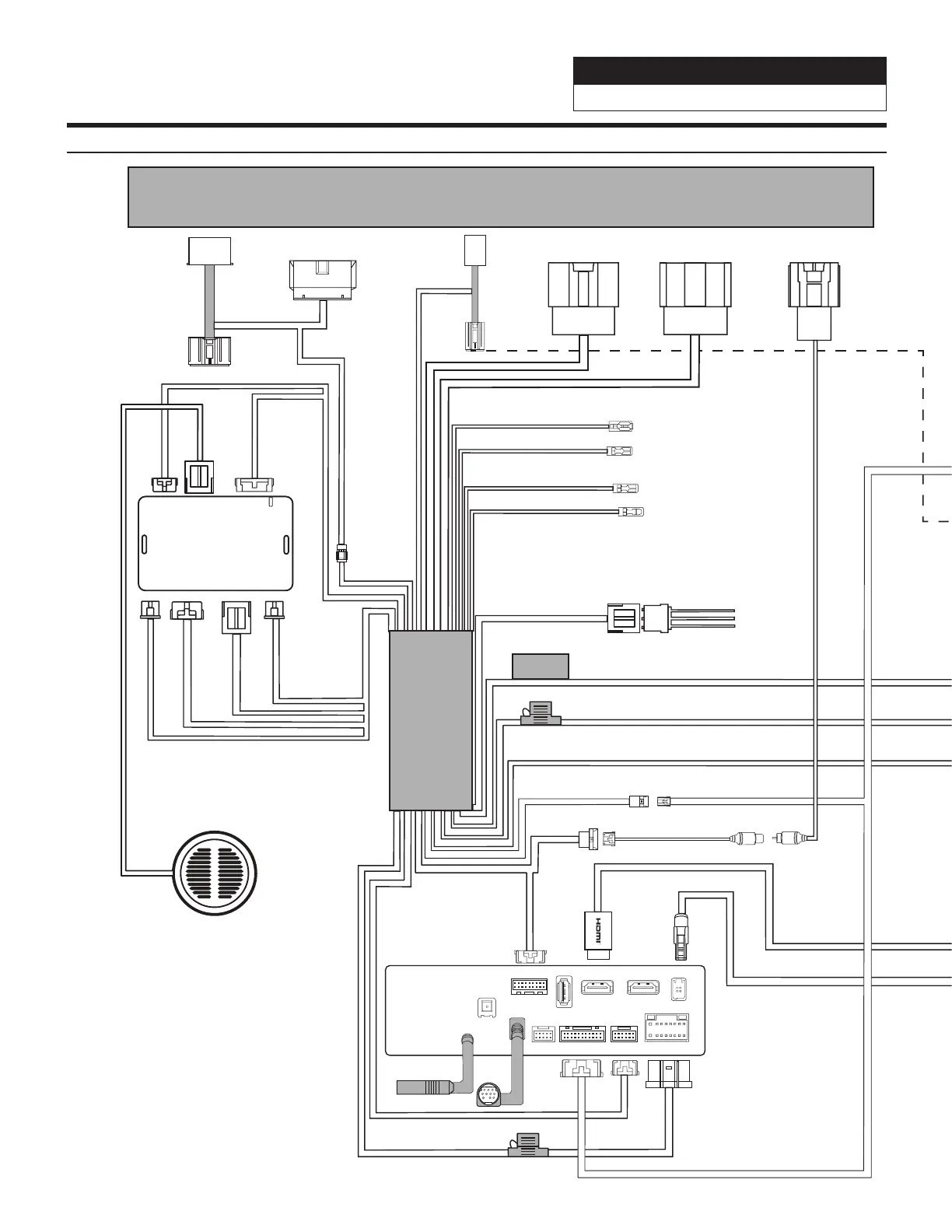

X110-G Wiring Diagram
