Alpine X110 - Page 149

Chevrolet/GMC
FULL SIZE TRUCK z 11/17

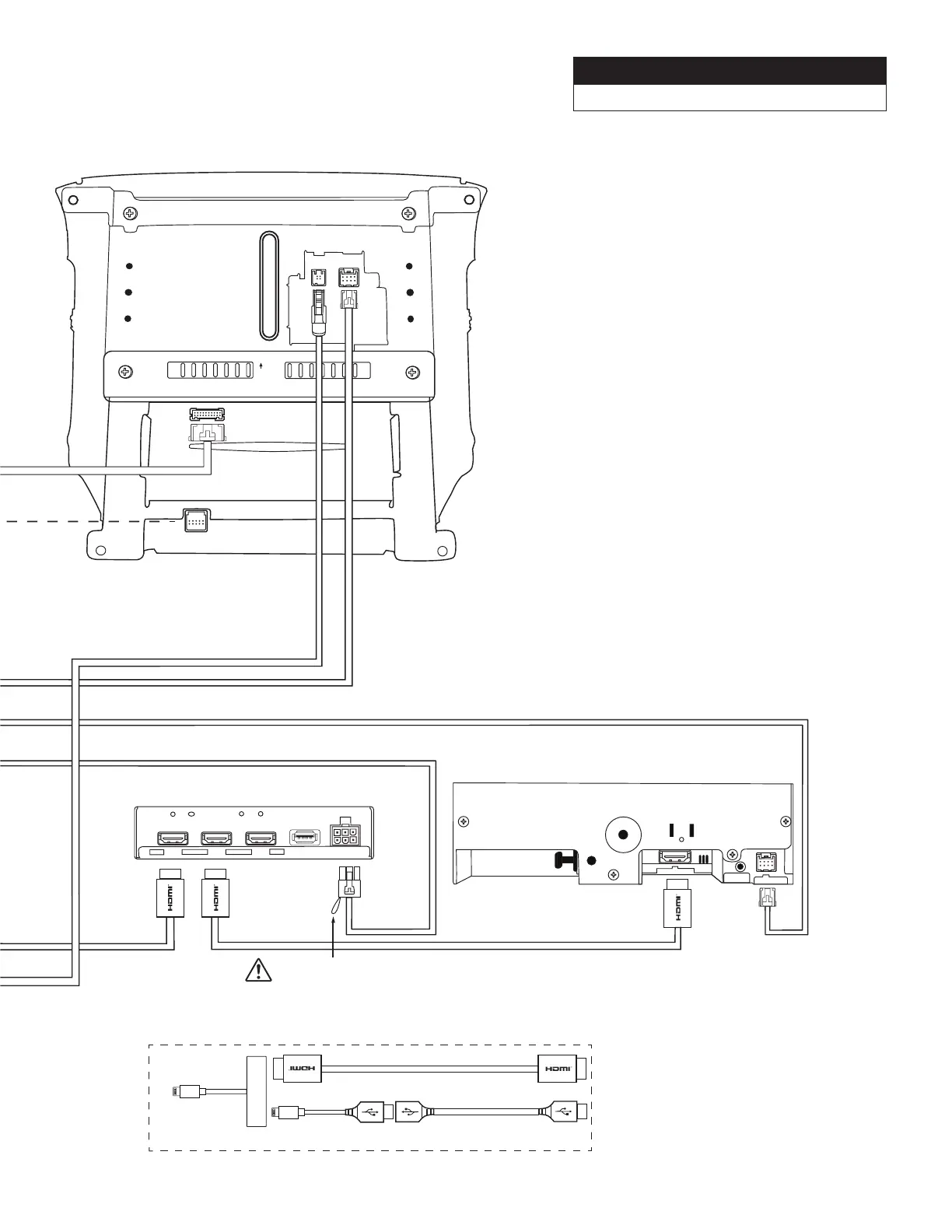

Cut loop when connecting
HDMI interface box.
HDMI IN 1 HDMI IN 2HDMI OUT
USB POWER
POWER
KCX-630HD (Optional) HDMI Selector Interface
(Sold Separately) KCE-220UB
For USB Charging ONLY
(Sold Separately) KCU-610HD HDMI Cable
(Sold Separately)
KCE-461iV USB to
Lightning Cable
(Sold by Apple)
Lightning Digital AV Adapter
Remote In
DVE-5300X DVD PLAYER
BRKT MONITOR
UPR 10GM
UP
BRKT MONITOR
LWR 10GM
DISPLAY MONITOR
HARD KEY BUTTONS
(Optional) iPhone Connection
CLIMATE CONTROLLER
HDMI OutOpt. Out
