pag. 29
MDE/C133 2561 001
MX3IPG2A

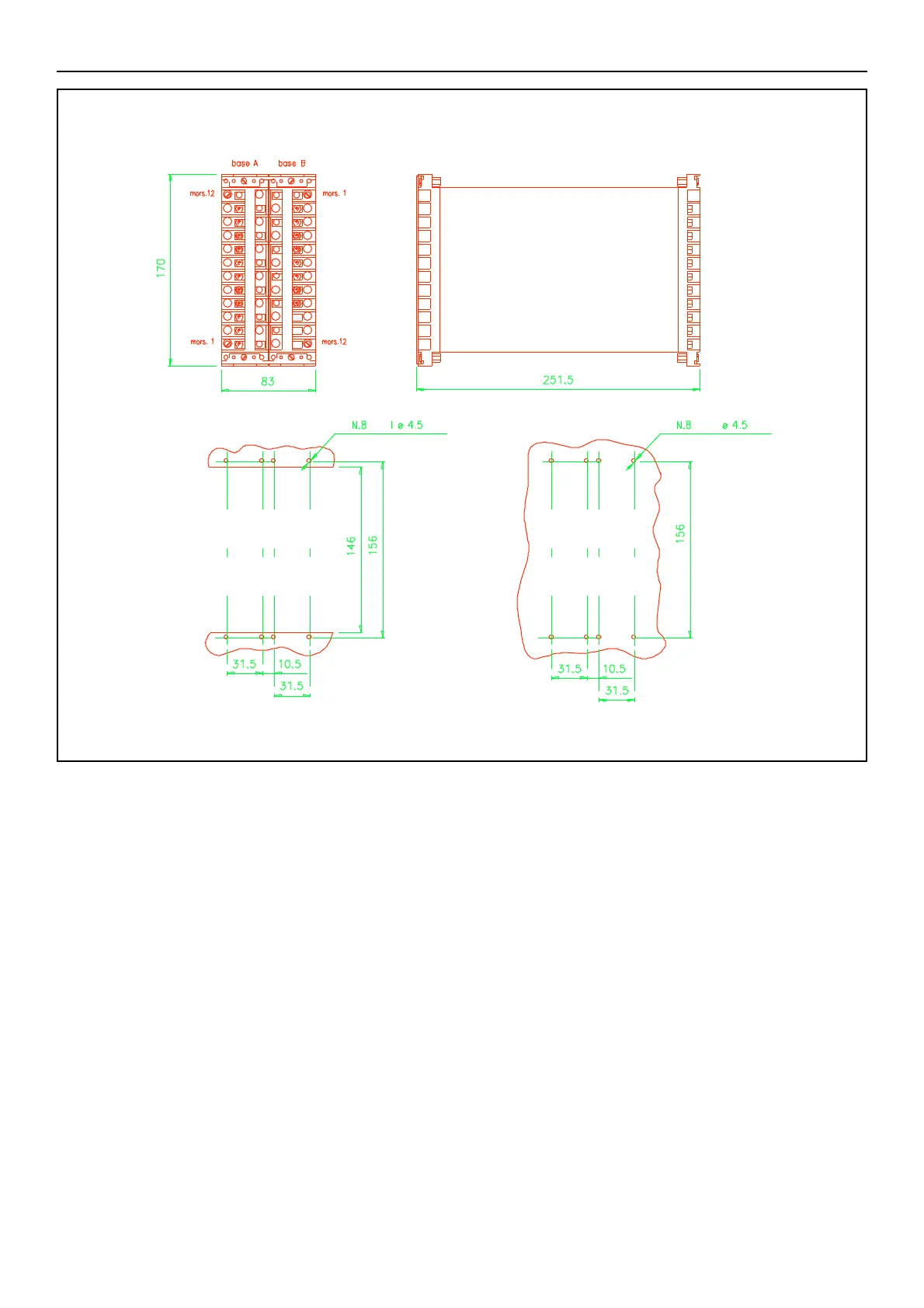

OVERALL DIMENSIONS AND DRILLING DIME - ATTACHMENT X2
fig. 7
HOLES HOLES
DRILLING WITH REAR CONNECTIONS DRILLING WITH REAR CONNECTIONS
