Mounting of A8n (ac) 2.4GHz Panel antenna
1. Mount the 2.4GHz radio antenna to the pole. It is recommended
that to install the standard A8n (ac) 2.4GHz antenna with the RF
ports facing downward, as shown in Figure 17.
2. Adjust the direction and down-tilt angle of the A8n (ac) 2.4GHz
antenna to align, as shown in Figure 18.

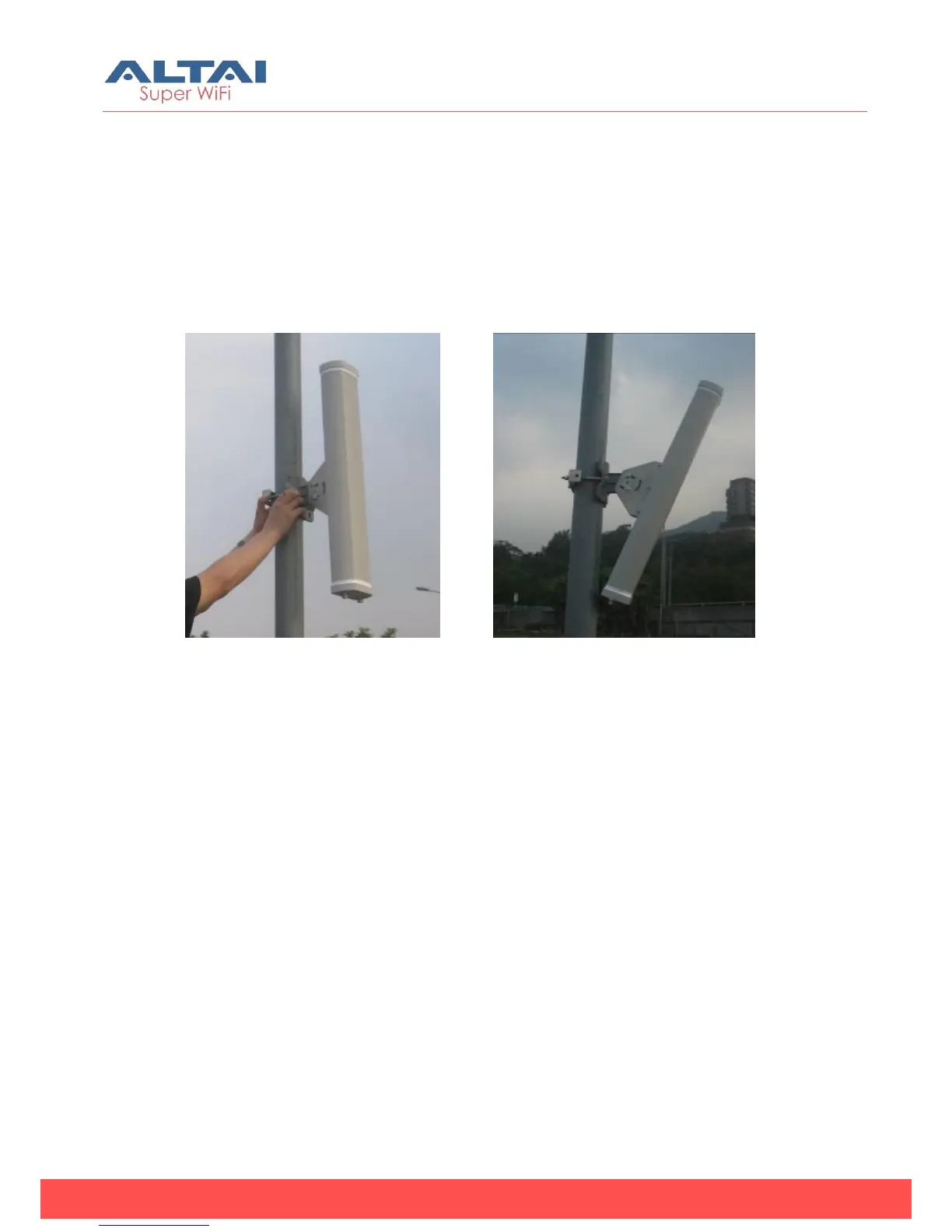

Figure 17. Standard A8n (ac) 2.4GHz Antenna
Figure 18. Adjust A8n (ac) 2.4GHz Antenna
tilting
