RF Cables Connection and Mounting of
5GHz Radio Antenna
1. The standard A8n (ac) series 5GHz antenna has two RF ports.
2. Connect RF cables from the A8n (ac) series 5GHz antenna RF
ports which marked “a0” and “a1”next to the RF ports.
3. It is recommended to seal the A8n (ac) series 5GHz antenna RF
ports with weatherproof materials to get the best performance
according to the procedure in chapter 6 of this document

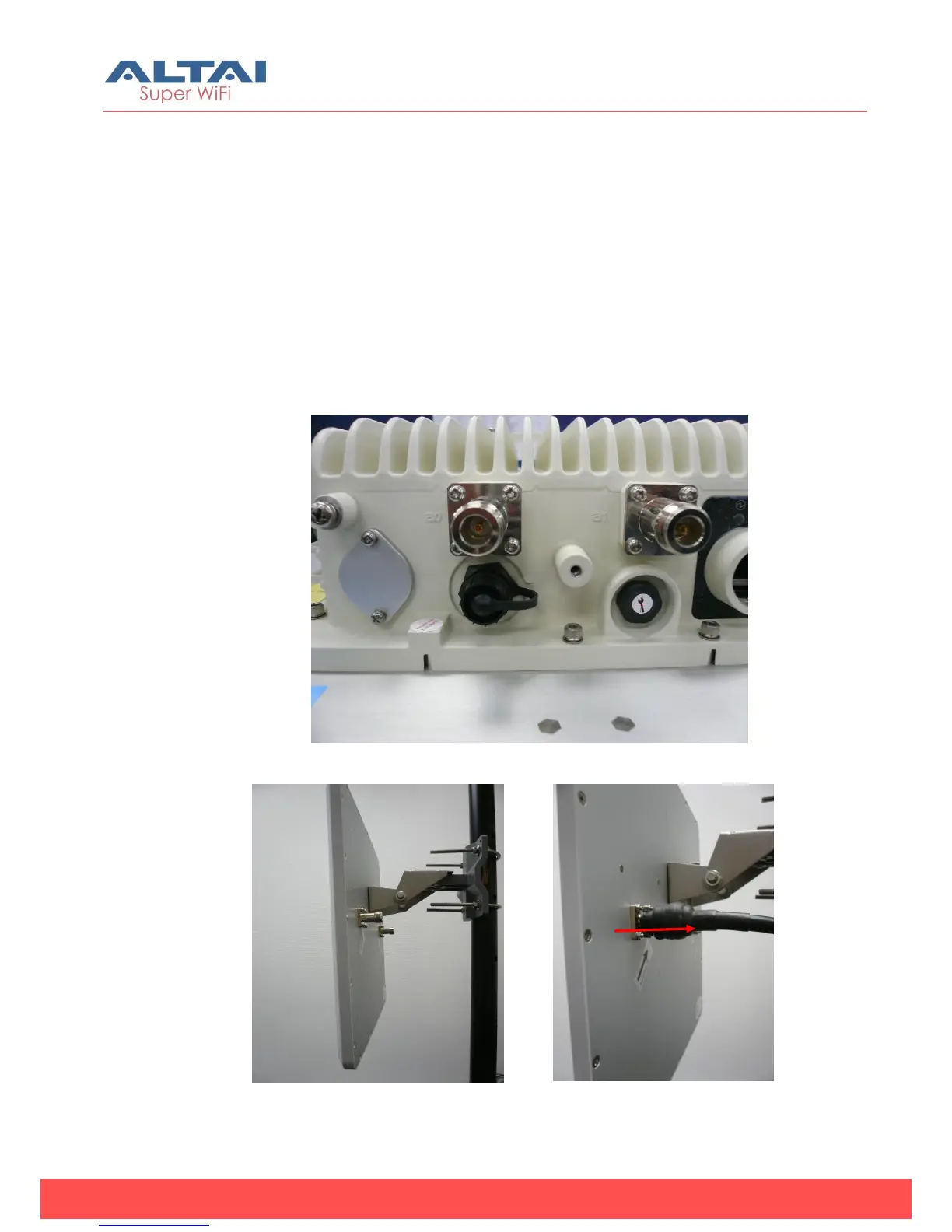

Figure 22. 5GHz “a0 & a1” antenna RF ports
