1. Cut the butyl rubber tape into 1/5” (5mm) by 4” (100mm) strips.
2. Wrap a strip of butyl rubber tape around the base of each antenna
port in the clockwise direction. Take extra care to make sure that
the resulting butyl rubber ring would not hinder the tightening of the
RF cable connector around the antenna port.

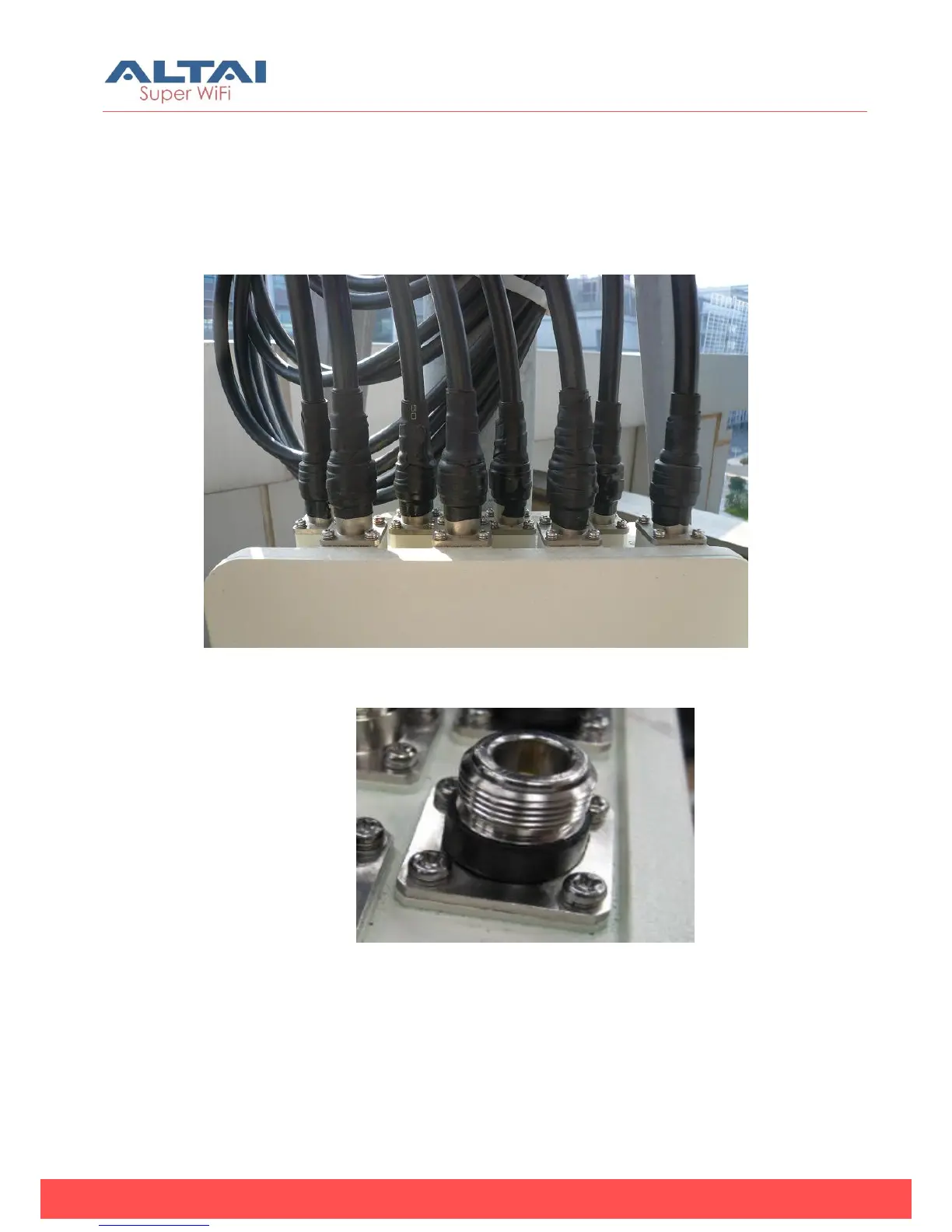

Figure 27. Wrap the Butyl Rubber Strip
Figure 28. Butyl Rubber Ring Finished
Connecting RF Cables
1. Make sure each RF cable and its connectors are absolutely dry.
