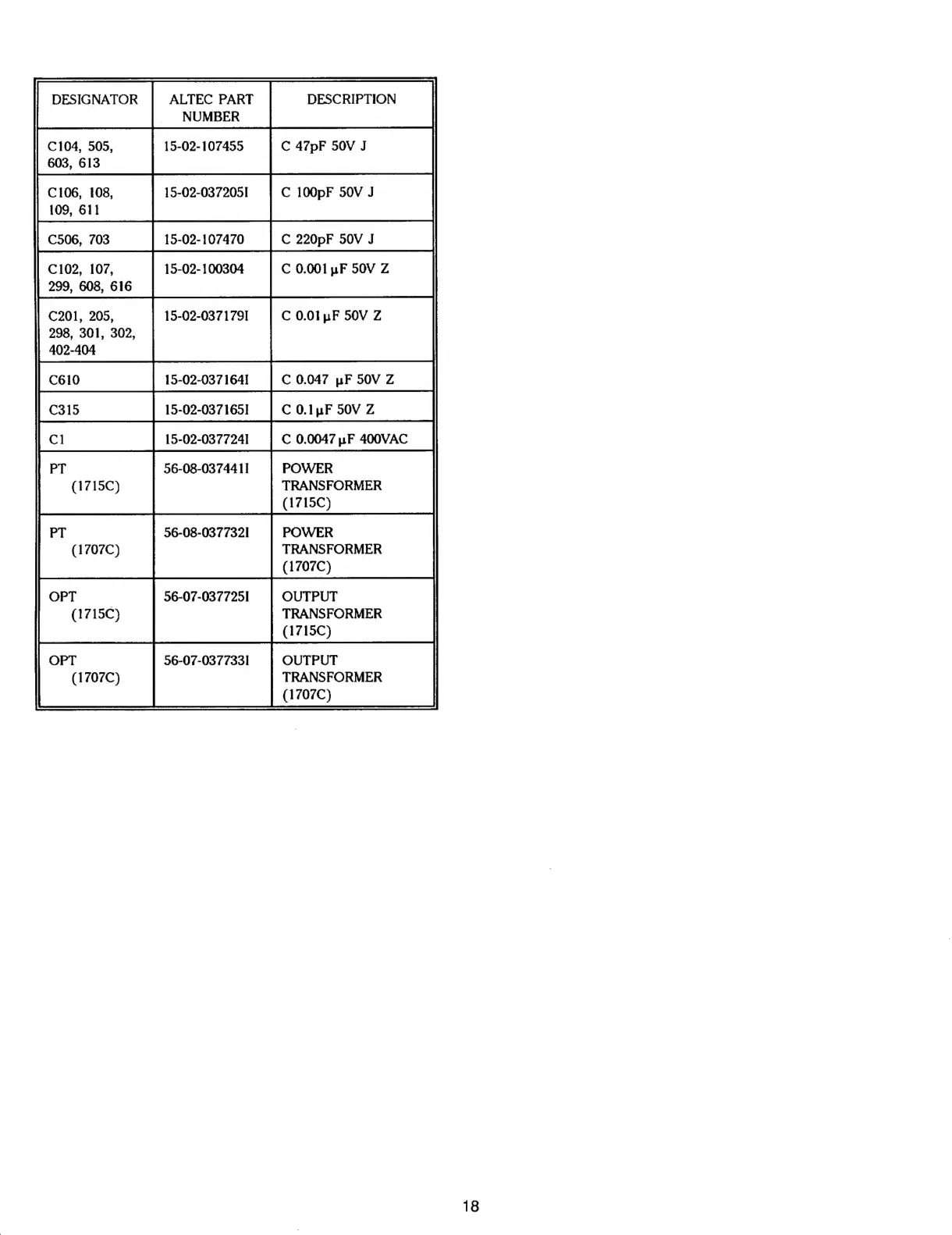

Altec Lansing 1707C - Page 24

DESIGNATOR ALTEC PART DESCRIPTION
- NUMBER
C104, 505, 15-02-107455 C 47pF 50V J
603, 613
C106, 108, 15-02-0372051 C 100pF 50V J
109, 611
C506, 703 15-02-107470 C 220pF 50V J
C102, 107, 15-02-100304 C 0.001 uF 50V Z
299, 608, 616
C201, 205, 15-02-0371791 C 0.01 pF 50V Z
298, 301, 302,
402-404
C610 15-02-0371641 C 0.047 pF 50V Z
C315 15-02-0371651 C 0.1uF 50V Z
FEE 15-02-0377241 C 0.0047 pF 400VAC
Cl
PT 56-08-0374411 | POWER
(1715C) TRANSFORMER
(1715C)
PT 56-08-0377321
(1707C)
OPT 56-07-0377251
(1715C) TRANSFORMER
(1715C)
OPT 56-07-0377331 | OUTPUT
(1707C) TRANSFORMER
(1707C)
POWER
TRANSFORMER
(1707C)
OUTPUT
18
