V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
23
■ The unit must be securely fixed, or else, noise and shaking will be resulted.
■ Make sure that there’s no remora around the unit.
■ In the place where there is strong wind like seashore, fix the unit in the location protected from the
wind.
■ Carry the unit onto the site
1) In order to avoid scratch or deformation of the unit surface, apply guard boards to the contacting
surface.
2) No contact of fingers and other things with the vanes.
3) Don’t incline the unit more than 45° in moving, and keep it vertical when installing.
■ Install the unit.
1) The circulating air for every unit should be more than 700m3/h.
2) Make sure there is enough Installation space.
3) Outline dimensional drawing

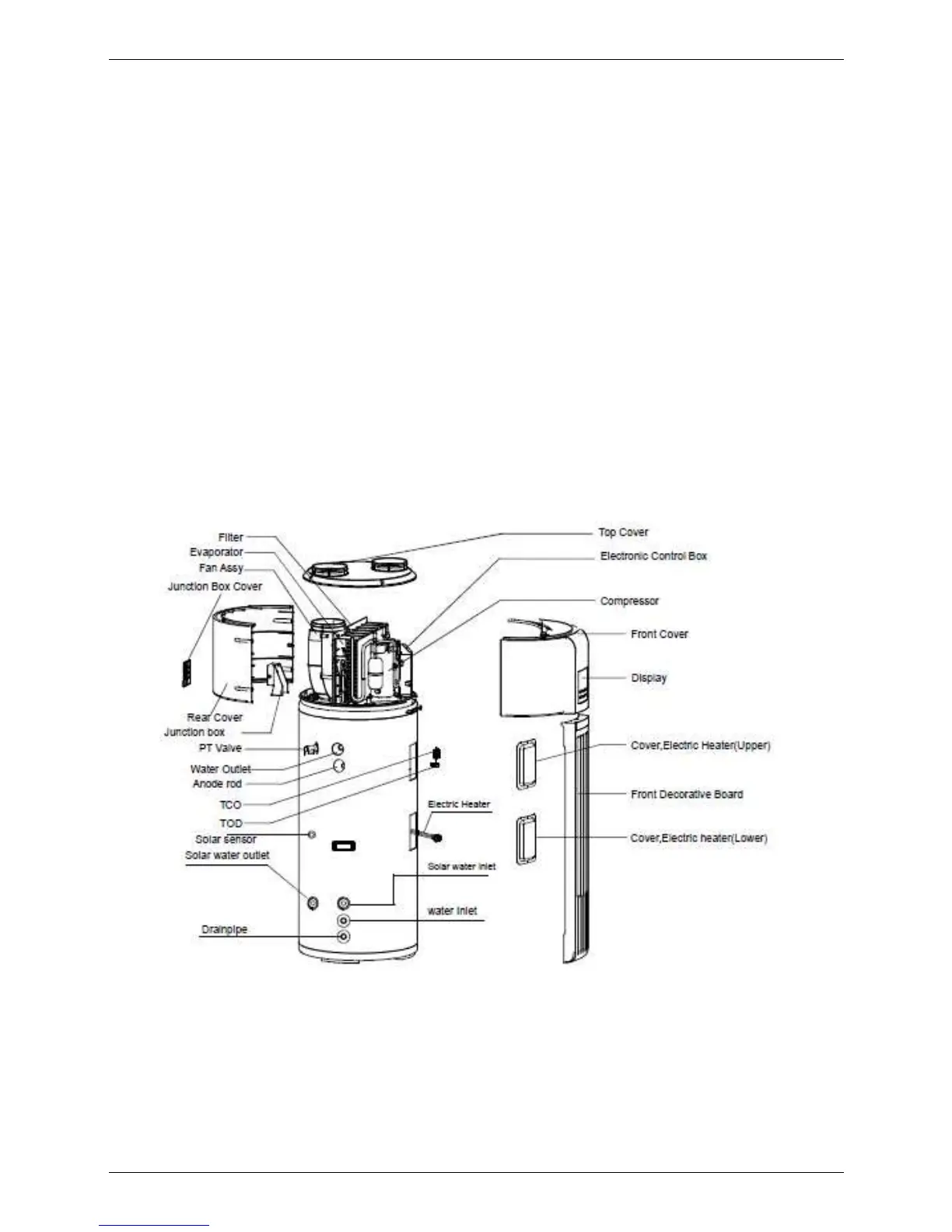

3. Unit Appearance and Composition
To Next Page
