4. Accessories
Check whether the following assemblies are complete.
Name Quantity Note Purpose
Installation& Operation Manual 1 —— Installation and Operation instruction
Y-sharp Filter 1 —— Inlet water filter
Drain Pipe for Condensate water 2 —— For condensed water discharge use
One Way Valve 1 —— To prevent water from flowing back
Wired Controller (optional) —— —— To control and monitor the unit status
5. Inspecting and Handling the Unit
After delivery, the package should be checked and any damage should be reported immediately to the
carrier claims agent.
When handling the unit, take into account the following:
1. Fragile, handle the unit with care.
Keep the unit upright in order to avoid compressor damage.
2. Choose before hand the path along which the unit is to be brought in.
3. Move this unit with original package.
4. When lifting the unit , always use protectors to prevent belt damage and pay attention to the balance of
the unit’s gravity.
6. Electric Wiring
6.1 Attention
● The water heater should powered separately and the power voltage should be in line with rated voltage..
● The power supply circuit of the water heater should be earthed, the power cord should be connected
with the external earthing line in reliable state and all the external earthing cables are effective.
● The construction of the wiring should be carried out by professionals in accordance with the circuit diagram.
● Set up leakage protection devices in accordance with the requirements of the relevant national
technical standards.
● The power cord and the signal line should be laid neatly without cross-interfere and should not contact
with the connecting pipe and the valves.
● The unit is not equipped with power cord. Please refer to the prescribed power specification for
selecting the power cord and cross-connection between two lines are not allowed.
● Check whether all the connections are correct before powering the unit.

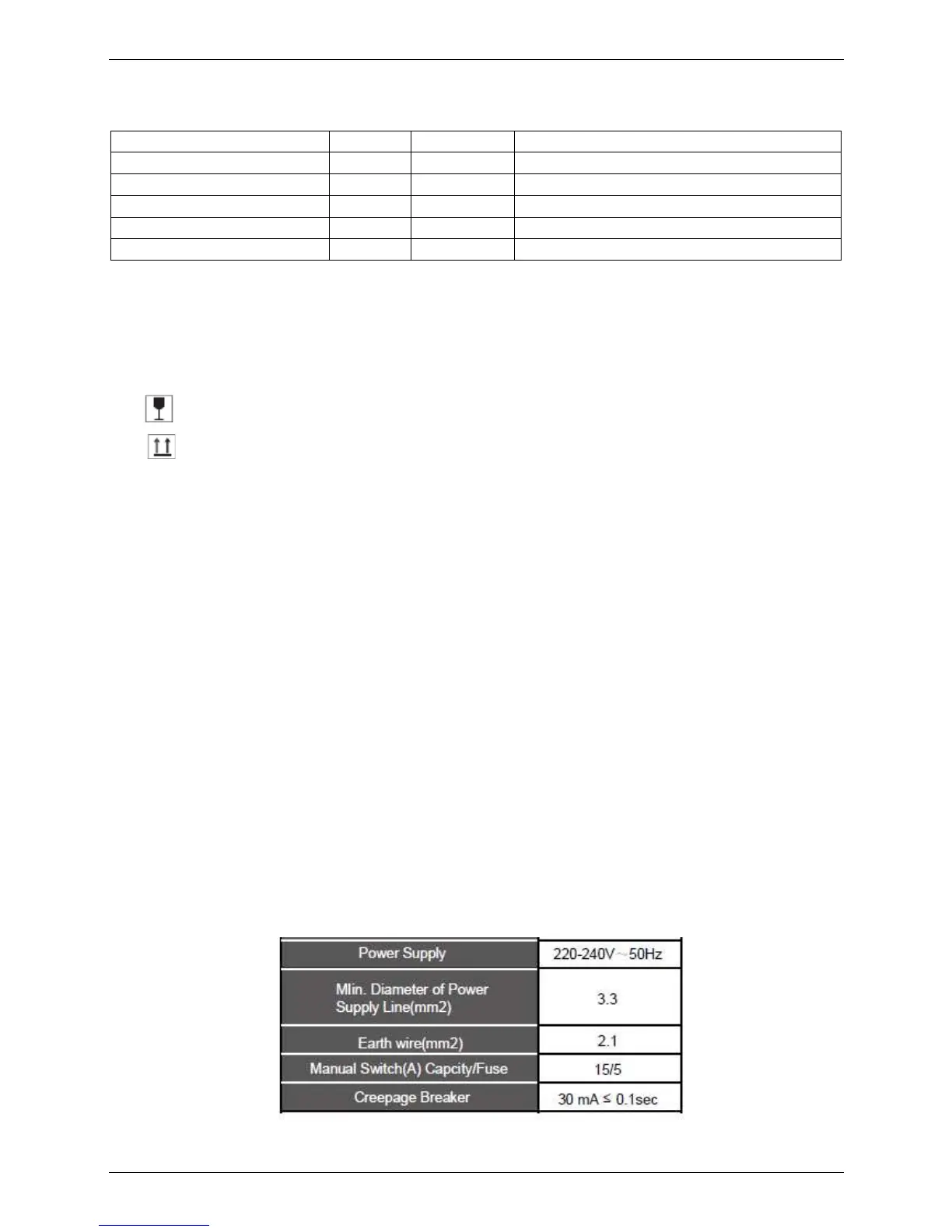

6.2 Power specification
