V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
39

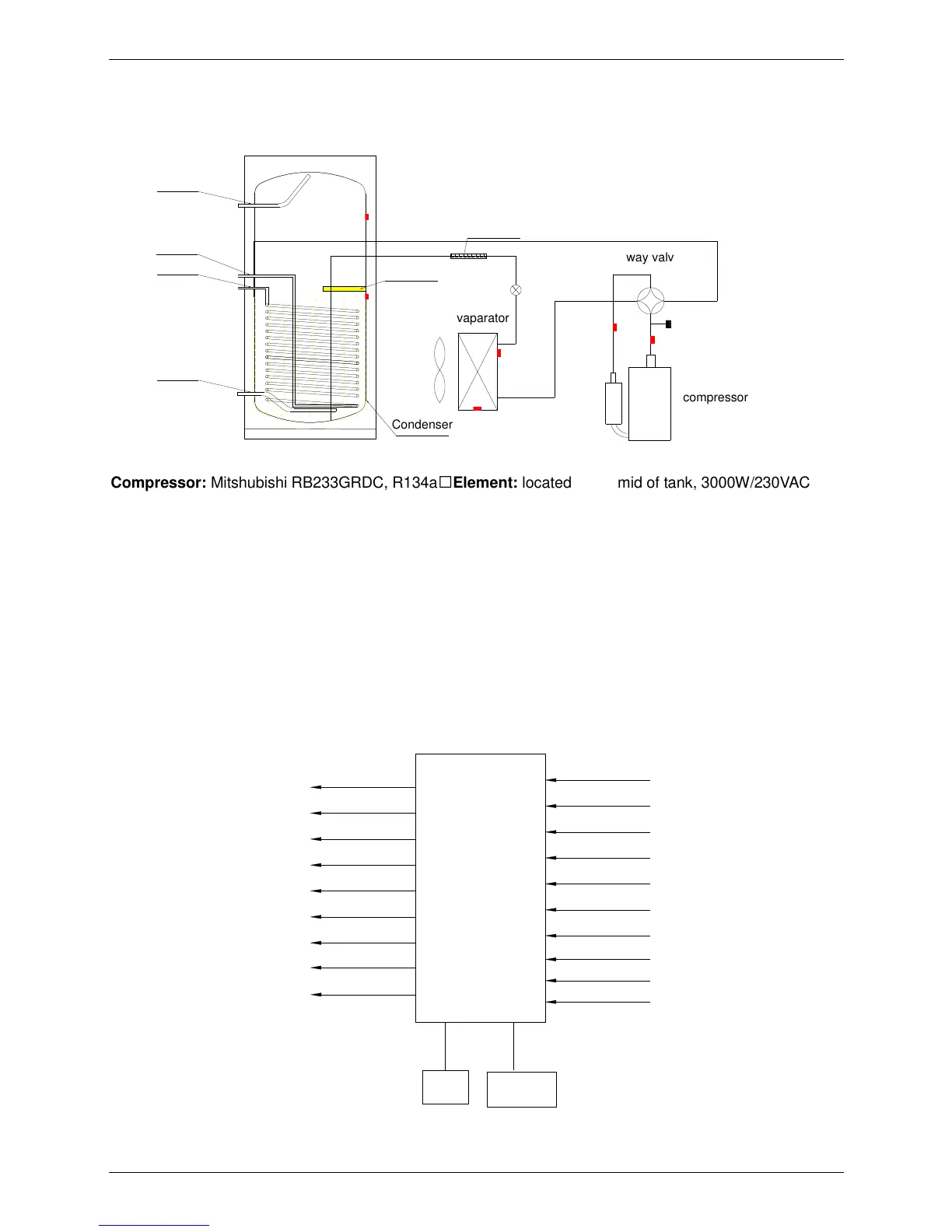

2.4 Refrigerant figure
2.4.1 System Piping figure
way valve
Element
Evaparator
Condenser
compressor
Compressor: Mitshubishi RB233GRDC, R134aElement: located in the mid of tank, 3000W/230VAC;
TCO (Temp. Switch): when water Temp. 80, switch OFF, when water Temp. 60, switch ON;
High Pressure Switch: switch OFF when 3.0MPa; switch ON when 2.4MPa;Fan: Centrifugal type,
220V—240V/50Hz3 Speeds; EEV: Sanhua 1.3 EEV; 4-Way Valve: Hualu STF-02BN2
Compressor crankcase belt heater: DJRD-390A-1300-25W; Wire controller(Optional)KJR-90B
2.4.2 System I/O figure
PCB
!"#
$
%&'&((!"#
)""!"#
*
+
,
-
.+
/!"#
-
0
!"#
(!"#
%&'&((!"#
