The DE2-70 package includes:
• The DE2-70 board
• USB Cable for FPGA programming and control
• DE2-70 System CD containing the DE2-70 documentation and supporting materials,
including the User Manual, the Control Panel utility, reference designs and demonstrations,
device datasheets, tutorials, and a set of laboratory exercises
• CD-ROMs containing Altera’s Quartus
®
II Web Edition and the Nios
®
II Embedded Design
Suit Evaluation Edition software.
• Bag of six rubber (silicon) covers for the DE2-70 board stands. The bag also contains some
extender pins, which can be used to facilitate easier probing with testing equipment of the
board’s I/O expansion headers
• Clear plastic cover for the board
• 12V DC wall-mount power supply
1.2 The DE2-70 Board Assembly
To assemble the included stands for the DE2-70 board:
• Assemble a rubber (silicon) cover, as shown in Figure 1.2, for each of the six copper stands
on the DE2-70 board
• The clear plastic cover provides extra protection, and is mounted over the top of the board
by using additional stands and screws

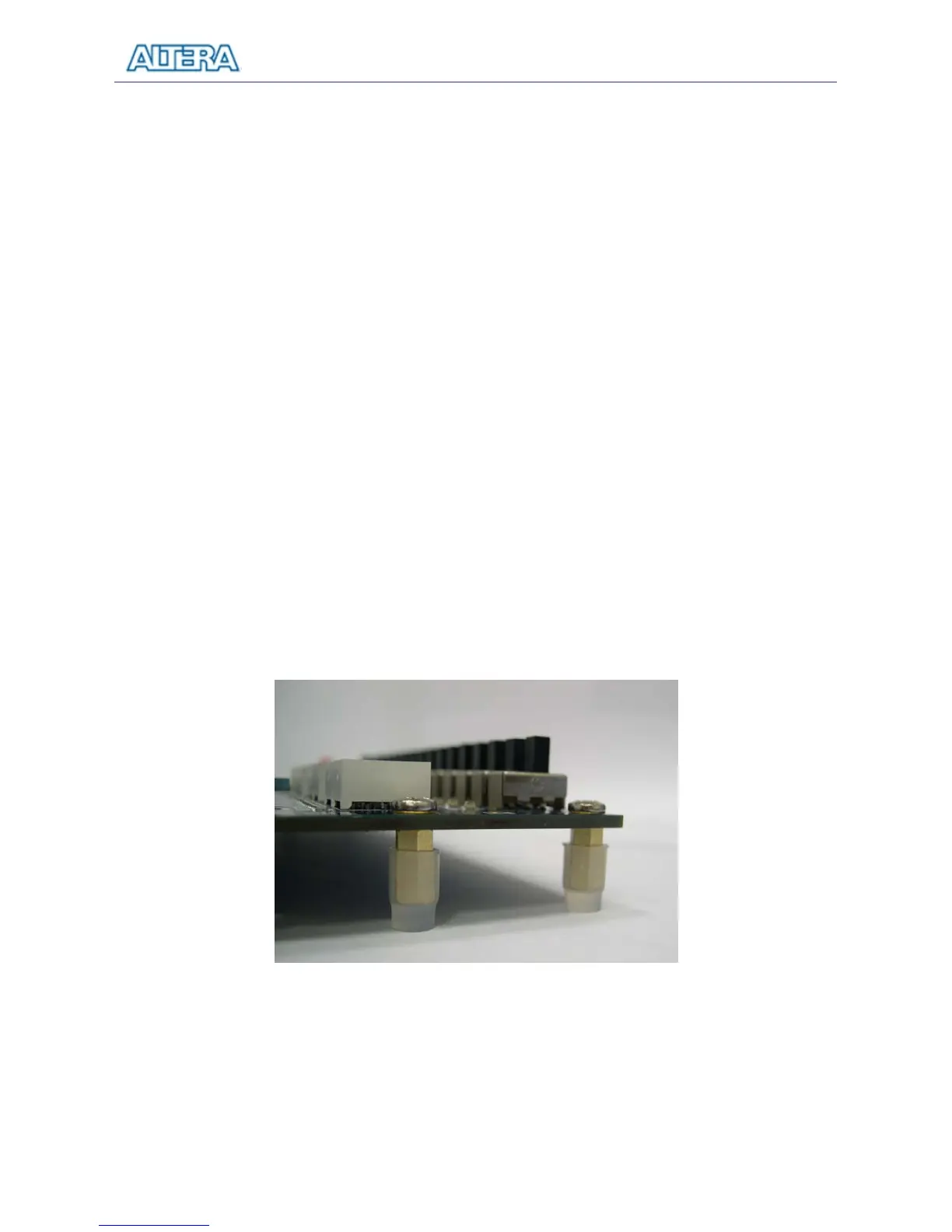

Figure 1.2. The feet for the DE2-70 board.
