28. #852 AR-7E ROTISSERIE INSTALLATION/OPERATION/SERVICE MANUAL
UNPACKING and SET-UP
The Alto-Shaam Ventless Hood has been
thoroughly tested and inspected to ensure only the
highest quality unit is provided. When you receive
your hood, check for any possible shipping damage
and report it at once to the delivering carrier.
Save all the information and instructions packed
inside the carton. Complete and return the warranty
card to the factory as soon as possible to assure
prompt service in the event of a warranty parts and
labor claim.
NOTE
:All claims for warranty must include the full
model number and serial number of the hood.
ELECTRICAL
1. An identification tag is permanently mounted on
the back of the ventless hood.
2. The interconnect cord from the ventless hood to
the rotisserie oven provides full power connection.
HOOD OPERATION
The Ventless Hood is factory installed directly on
the top of the Alto-Shaam
® Rotisserie oven. The
hood is designed to vent clean air back into the
kitchen, filtering vapors and grease. A high-power
fan draws fumes and steam into the hood intake
and out the top surface exhaust vent. Fumes and
vapors are circulated through filters draining the
condensation through a drain into the rotisserie drip
pan. An activated charcoal filter cleans the air
before venting it out the top of the hood.
Turn the ventless hood ON before operating the
rotisserie oven. There are a number of safety
features incorporated into the operation of the hood
which are directly related to the interaction of hood
function and the operation of the rotisserie oven.
VENTLESS HOOD INTERLOCK SWITCHES
— CHARCOAL FILTER SWITCH
GREASE FILTER SWITCH:
Prevents both hood and oven operation if any
filter is not in place or is improperly installed.
— FAN PRESSURE SWITCH: Prevents rotisserie
oven operation if hood fan is not operating or if
the filters are more than 25% blocked.
TIMED LATCHING MECHANISM
— In order to evacuate grease-laden air
and steam from the oven interior, this
mechanism briefly prevents the operator
from fully opening the rotisserie oven
door. The mechanism automatically
disengages at the end of a pre-set time
allowing full door extension.
(
NOT AVAILABLE ON 230VAC HOODS)
RESET SWITCH
— The Reset has to be used if the rotisserie
oven is turned on before the hood or if the
hood was opened. It resets the pressure switch
circuit and provides power to the rotisserie
control circuit. This switch must also be used to
reset hood controls after any problem with the
filters, or the improper latching of the ventless
hood door. See illustrations on following pages
of this manual.

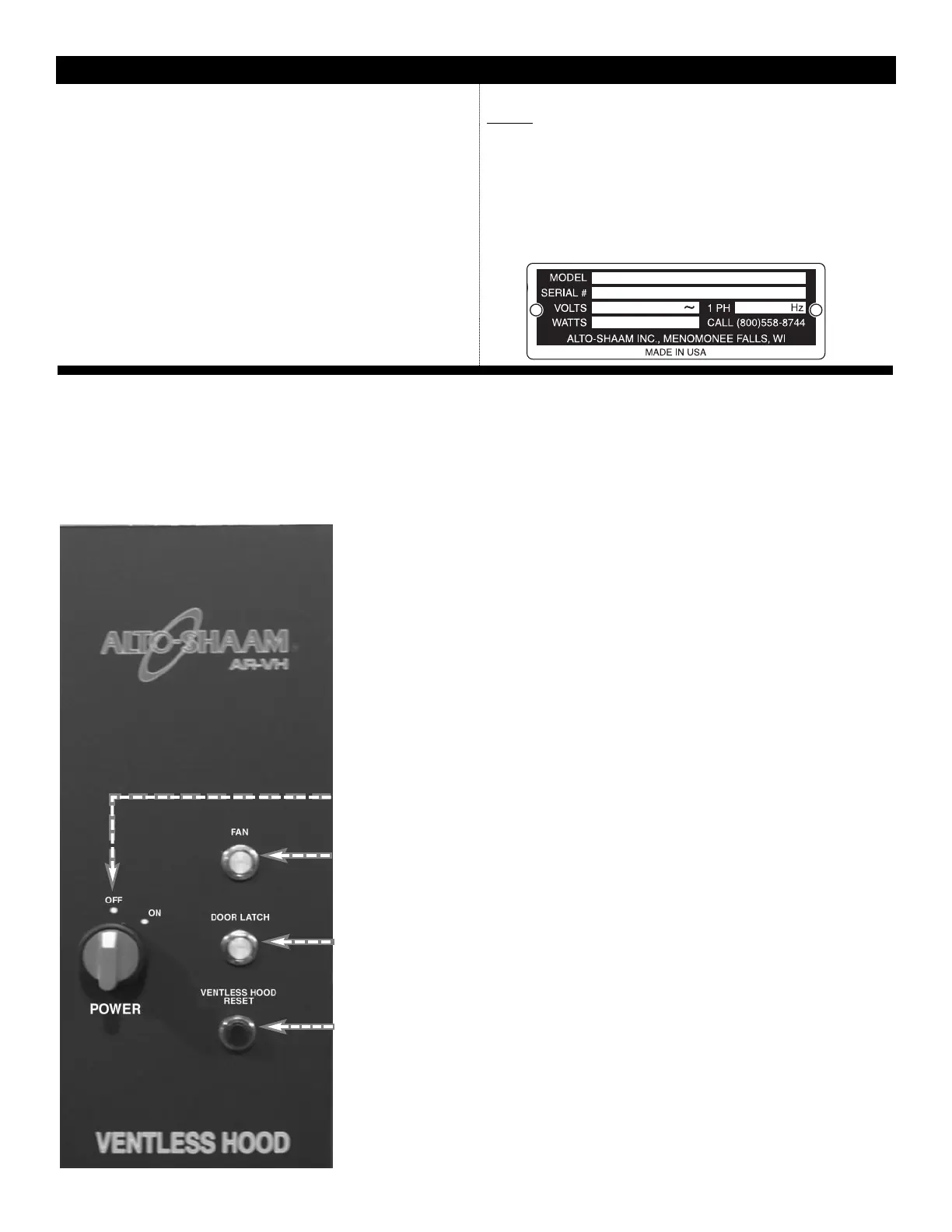

FAN INDICATOR LIGHT
Illuminates when
fan is running.
DOOR LATCH INDICATOR
LIGHT
Illuminates when latch
is engaged.
ON/OFF SWITCH
RESET BUTTON
Press after correction of any
problem with hood or oven.
SECTION 4 VENTLESS HOOD OPTION SECTION 4
VENTLESS
HOOD
CONTROL
