Alto-Shaam CombiMate 10-18W User Manual

#891/3 • INSTALLATION/OPERATION/SERVICE MANUAL • 5.

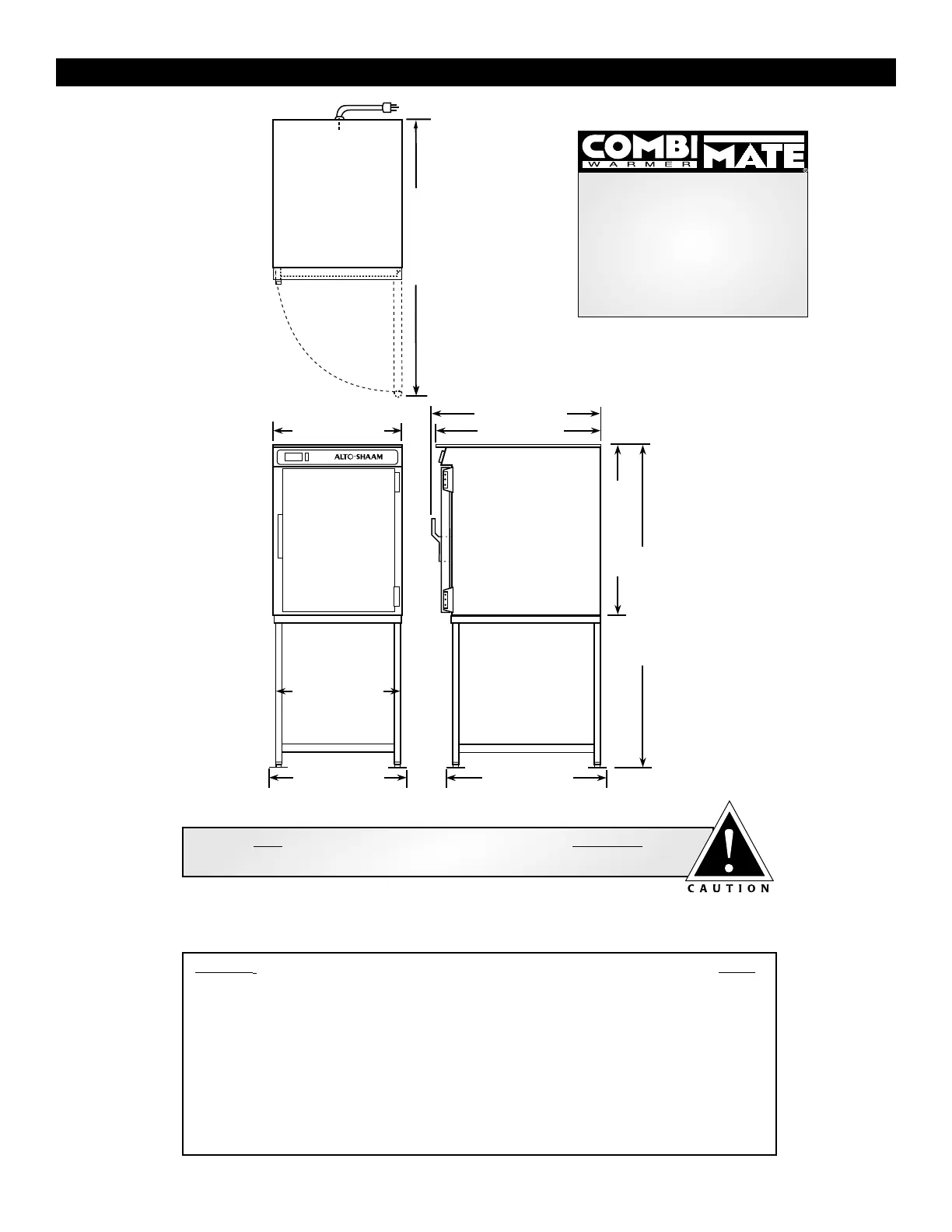

28-1/4" (718mm)
34-5/16" (872mm)
33-3/8" (848mm)
37-9/16" (954mm)
70-13/16" (1799mm)
ADJUSTABLE
®
Electrical
Connection
2-3/4" (70mm)
from top
C
L
28-1/8" (714mm)
30-1/8" (765mm)
32-3/4" (832mm)
59-5/16 " (1507mm)
Do not operate this holding cabinet without its
appropriate Slide-in Pan Rack and Trolley
DESCRIPTION P
ART
NO
Slide-In-Pan-Rack (Fits 7•14 Combitherm Oven & QC-40 Quickchiller) . . . . . . . . . . . . . . . . . . . . . . 15639
Slide-In-Pan-Rack (Fits 10•10 Combitherm Oven & QC-40 Quickchiller) . . . . . . . . . . . . . . . . . . . . . 15637
Slide-In-Pan-Rack (Fits 10•18 Combitherm Oven & QC-40 Quickchiller) . . . . . . . . . . . . . . . . . . . . . 15638
Rack-Track (Fits inside 7•14 & 10•18 Combitherm Ovens & 10•18W) . . . . . . . . . . . . . . . . . . . . . . . 14582
Rack-Track (Fits inside 10•10 Combitherm Oven) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14940
Trolley Base Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15635
Stainless Steel Wire Shelves for Pan Rack 15638 and 15639 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SH-22473
Stainless Steel Wire Shelves for Pan Rack 15637 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SH-2903
Options & Accessories
Models 7•14, 10•10, and 10•18
INSTALLATION
10•18W
Max. Load Capacity
240 lbs. (108 kg)
Volume Max.
150 Quarts (190 liters)

Alto-Shaam CombiMate 10-18W Specifications
