Alto-Shaam Vector VMC-H4H

COMPONENTS
Vector™ H Seri es ▪ Serv ic e M anua l ▪ MN- 4654 4 ▪ Re v 01 ▪ 1 1/19
36

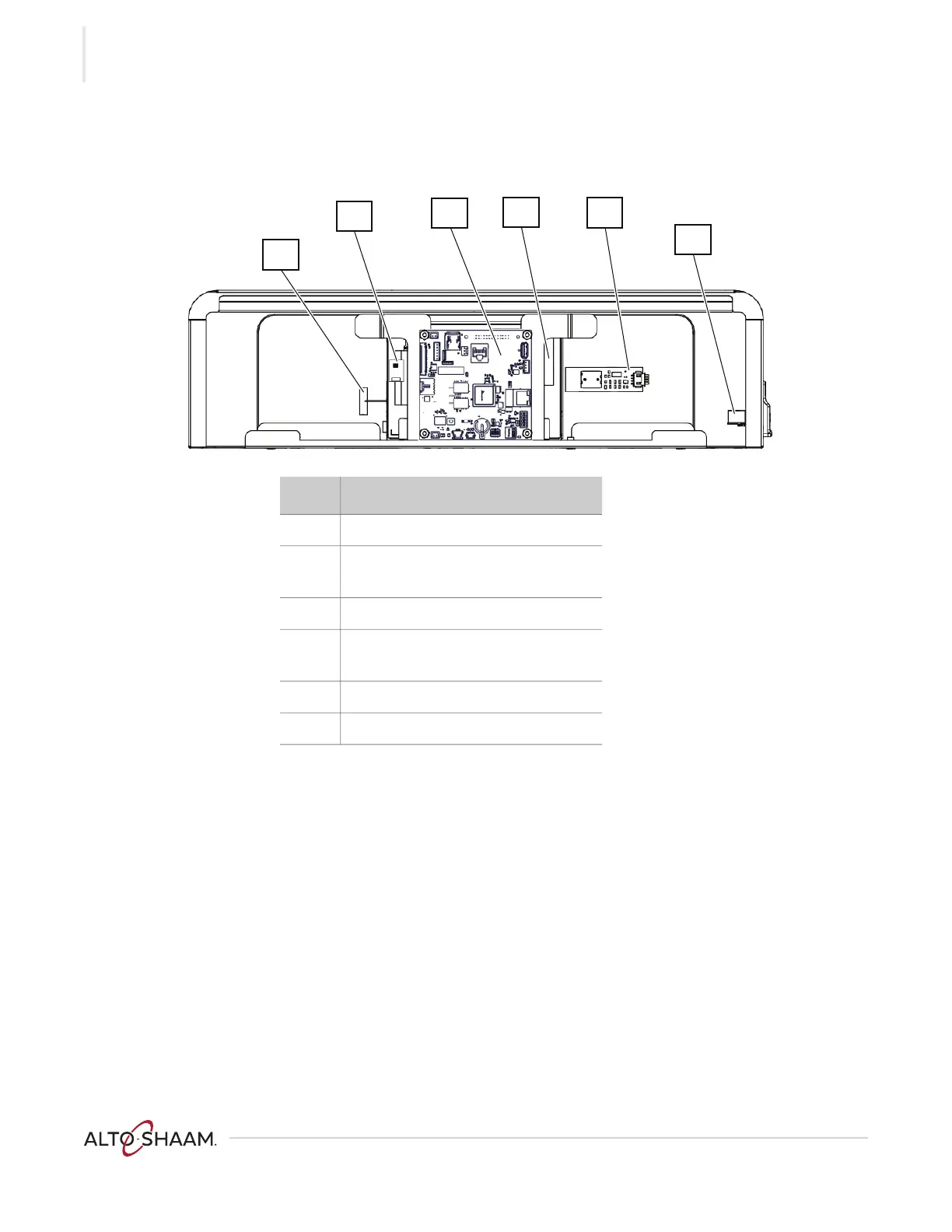

Control Panel
VMC-PHD-007596
1
2
3
4
5
6
Ref. Description
1 WIFI antenna (Not serviceable)
2 Capacitive touch controller board
(Not serviceable)
3 Interface board
4 Liquid Crystal Display (LCD)
(Not serviceable)
5 ON/OFF board (Not serviceable)
6 USB port
