Connect the wiring To connect the wiring, do the following.

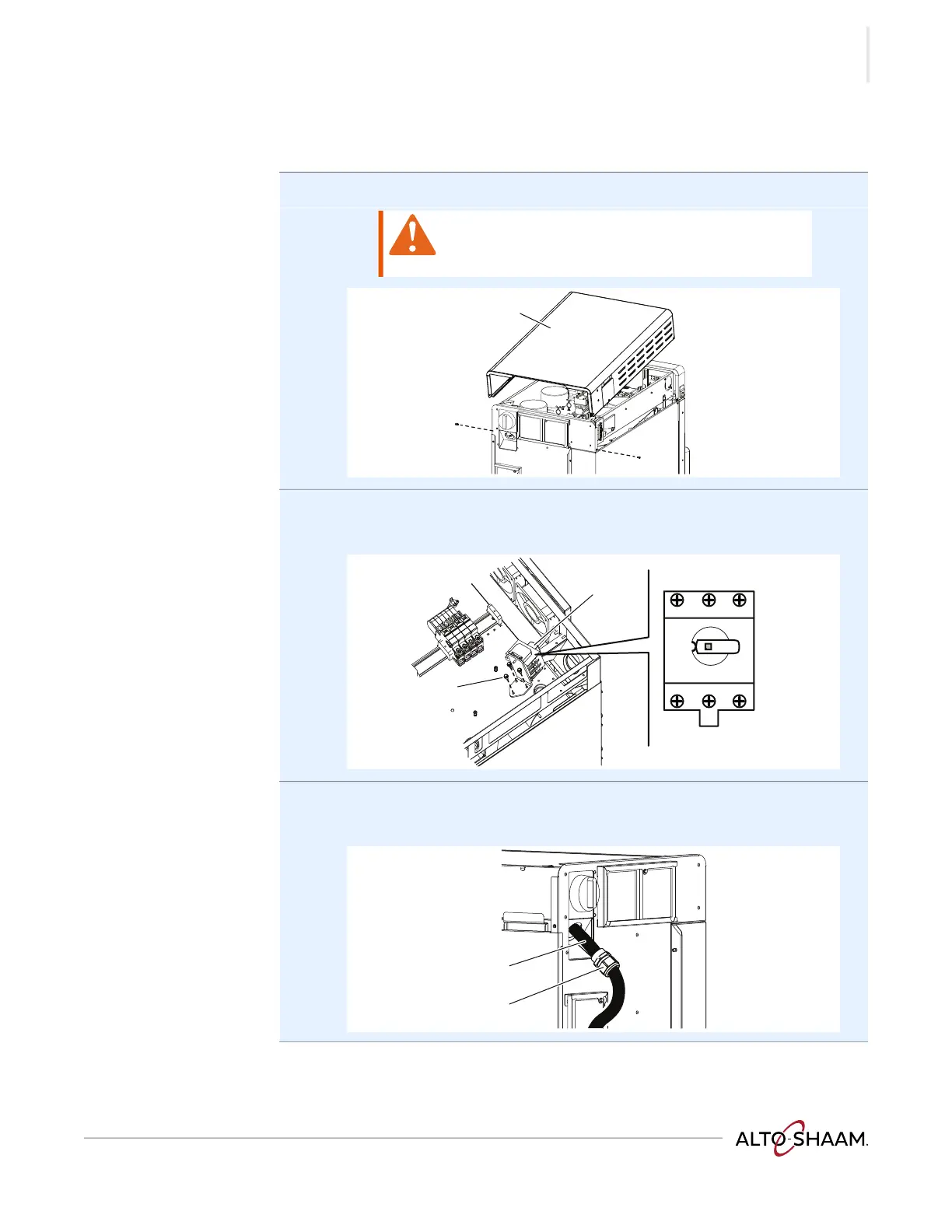

4. Remove the pivot screws. Remove the top cover a.
5. Remove the bottom 3 screws b from the mounting bracket.
Remove the main disconnect switch c from the mounting bracket.
6. Install the cord d through the cord grip e and install to oven.
Install the lock nut onto the cord grip.
Continued on next page
WARNING: Electric shock hazard.
Make sure the supply cord is not connected to a
power supply.
VMC-TS-001815
1L1
2T1
3L2
4T2
5L3
6T3
c
b
To Next Page
