Alto 2000 - Scrub Deck Assembly (46”)

AMERICAN-LINCOLN TECHNOLOGY 2-17
SMART 2000

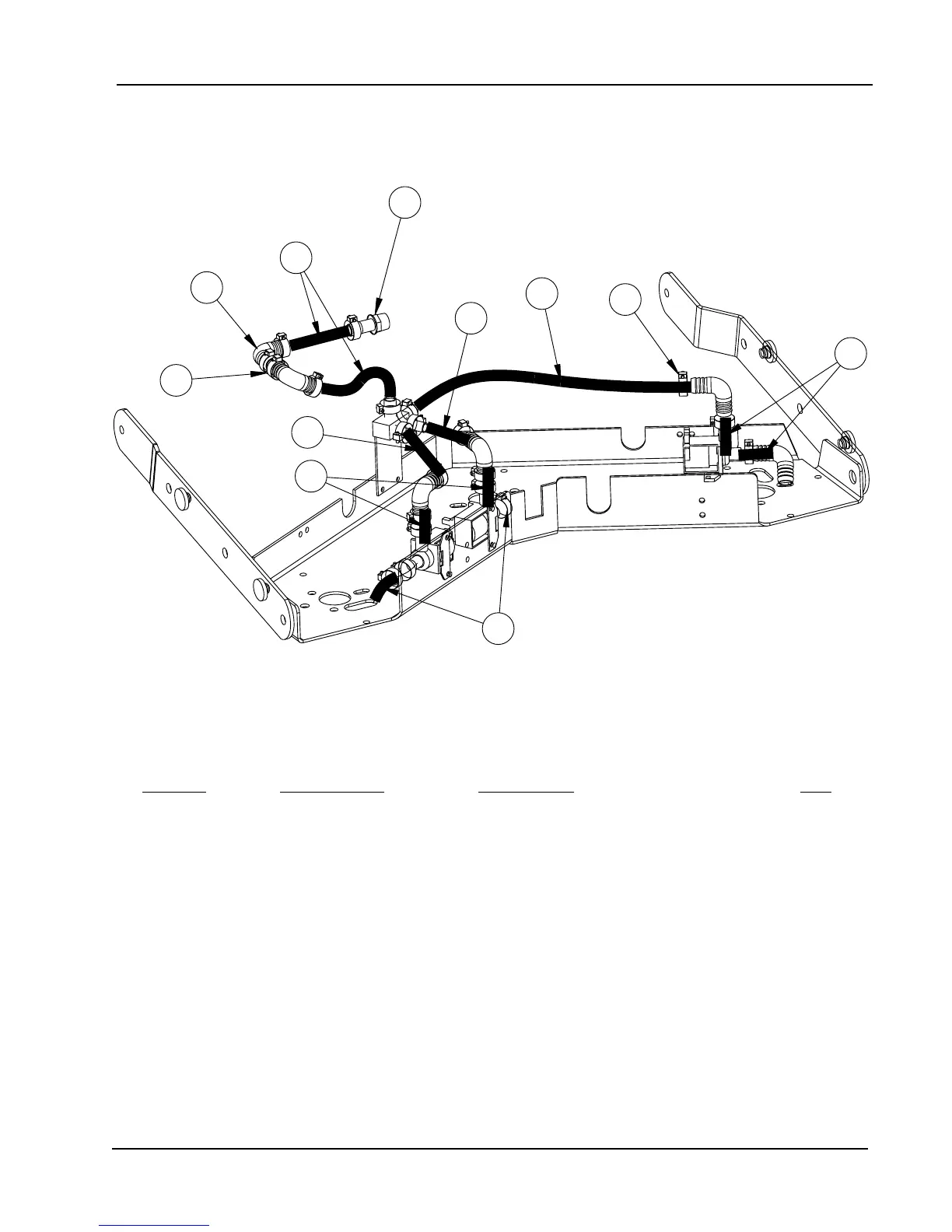

SCRUB DECK ASSEMBLY (46”)
5
7
2
4
9
1
6
5
3
5
8
C1959/0102
Key No. Part Number Description Qty.
1 7-33-02445 Heater Hose (¾ x 5.5 lg) 1
2 7-33-02421 Heater Hose (5/8 x 21 lg) 1
3 7-33-02422 Heater Hose (5/8 x 11.5 lg) 1
4 7-33-02423 Heater Hose (5/8 x 6.5 lg) 1
5 7-33-02434 Heater Hose (¾ x 2 lg) 5
6 2-00-05380 Fitting - 90º Elbow 5
7 2-00-02220 Hose Clamps 20
8 7-33-02424 Hose - Heater Hose 2
9 7-25-02012 Hose Fitting - Straight Ref.
C1959/0102
