Alto LYNX-MIX62 Service Manual

1 2 3 4 5 6 7 8
A B C D
87654321
D C B A
LYNX-MIX62/62FX STEREO.sch
Titel Size File: Date:
Drawn By: Sheet
RevisionModel No:
16-Mar-2009
HONG LIN CAO
LYNX-MIX62/62FX
52 of
STEREO CHANALE(2/5)
VER090304
A3

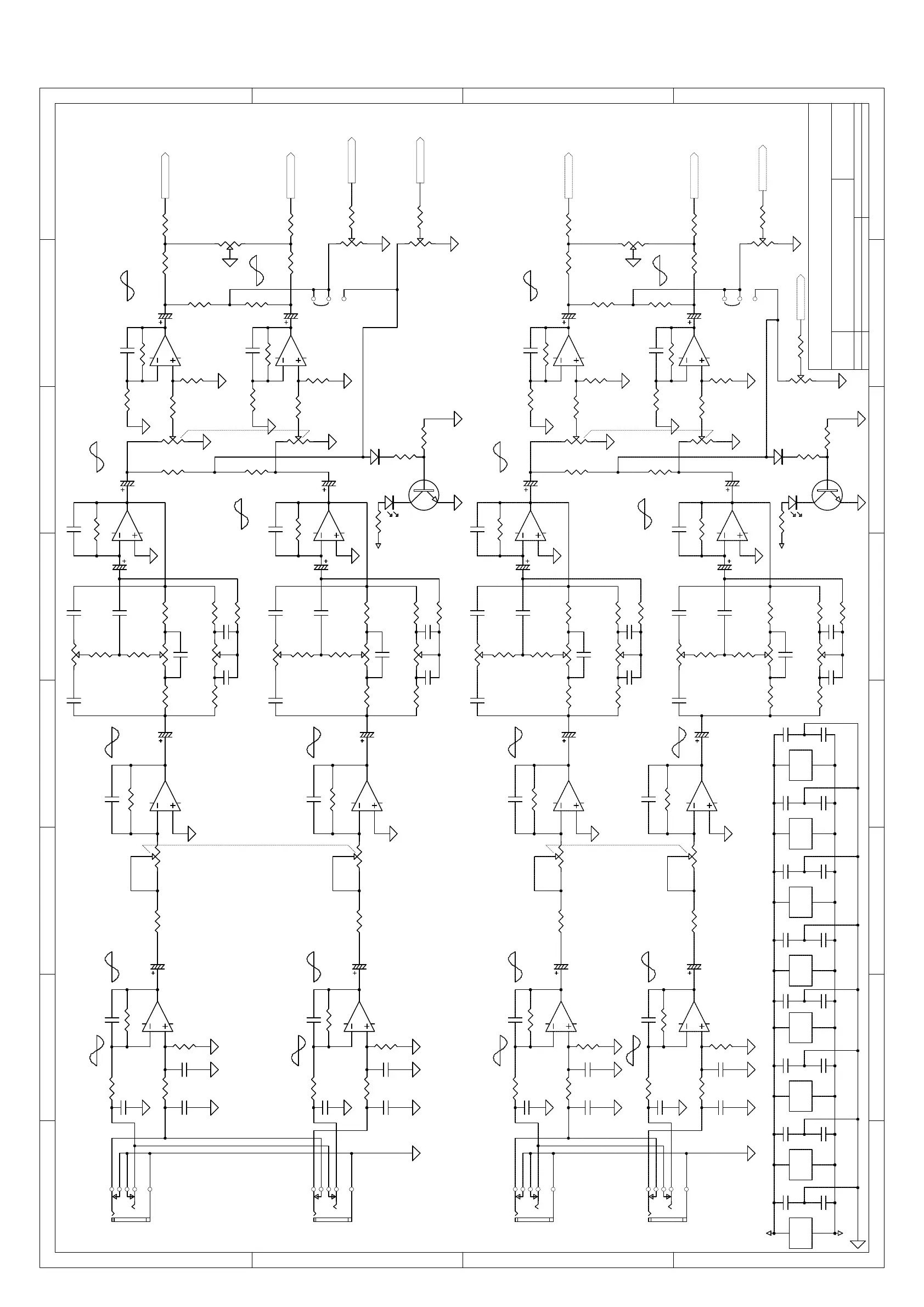

LYNX-MIX62/62FX STEREO CHANALE(2/5)
3c 5e 1a 4d 2b
X5
JY-6351G-02-250
T
R
S
RN TN
3c 5e 1a 4d 2b
X6
JY-6351G-02-250
T
R
S
RN TN
LEFT(MONO)
RIGHT
3 2
1
U7A
4580M
R196 27K0 C32 22P
R192 27K0
C30 22P R186 27K0
C224 100P
R187 27K0
C222 100P
5 6
7
U7B
4580M
R194 27K0
C33 22P
R190 27K0
C28
22P R182
27K0
C225 100P
R184
27K0
C220
100P
3 2
1
U8A 4580M
R207 1K0
C36 22P
C63
47uF/25V
R198 100R0
C64
47uF/25V
5 6
7
U8B 4580M
R205 1K0
C37 22P
EQ HI
12KHZ
C122
18N
VR18A
B50K*2-C
R94
6K8
VR20A
B50K*2-C
R91 6K8
LOW R38
10K
C67
47uF/25V
3 2
1
U9A
4580M
R119
1M
C148
22P
R107
1K1
VR19A
B50K*2-C
R101
1K8
MID
R75
910R
C128
12N
R79 910R
C112
33N
C116
33N
C140
12N
C134
18N
C73
47uF/25V
R141
5K1
3 2
1
U10A
4580M
VR21A
B50K*2
R215 20K
C154
22P
C77
47uF/25V
BAL
80HZ
2.5K
EQ HI
12KHZ
C124
18N
VR18B
B50K*2-C
R95
6K8
VR20B
B50K*2-C
R92
6K8
LOW
C69
47uF/25V
5 6
7
U9B
4580M
R117
1M
C149
22P
R109
1K1
VR19B
B50K*2-C
R102
1K8
MID
R77 910R
C129
12N
R80 910R
C113
33N
C115
33N
C142
12N
C136
18N
C71
47uF/25V
80HZ
2.5K
R209
1K
R211
1K
R142
5K1
5 6
7
U10B
4580M
VR21B B50K*2
R213
20K
C152
22P
C75
47uF/25V
LEVEL
R173
1K
R171
1K
R157
5K1
R159
5K1
R155 22K
VR23 B50K VR24 B50K
R154 22K
AUX-FX LEVEL
AUX-MON LEVEL
J3
POST (PRE)
VR22
W50K
R176 4K7 R175 4K7
R149 8K2
R145 4K32 R146 4K32
R150 8K2
R37
10K
R123 36K
R127 4K7
TR3 3904
R113 1K
LD3 RED
PEAK
AK
D11 4148
VR17A B10K*2
C59
47uF/25V
R199 100R
VR17B B10K*2
C60
47uF/25V
GAIN GAIN
LEFT-BUS
RIGHT-BUS
AUX-1 AUX-2
3c 5e 1a 4d 2b
X7
JY-6351G-02-250
T
R
S
RN TN
3c 5e 1a 4d 2b
X8
JY-6351G-02-250
T
R
S
RN TN
LEFT(MONO)
RIGHT
3 2
1
U11A
4580M
R197 27K0 C34 22P
R193 27K0
C31 22P R188 27K0
C226 100P
R189 27K0
C223 100P
5 6
7
U11B
4580M
R195 27K0
C35 22P
R191 27K0
C29
22P R183
27K0
C227 100P
R185
27K0
C221
100P
3 2
1
U12A 4580M
R208 1K0
C38 22P
C65
47uF/25V
R200 100R0
C66
47uF/25V
5 6
7
U12B 4580M
R206 1K0
C39 22P
EQ HI
12KHZ
C123
18N
VR26A
B50K*2-C
R96
6K8
VR28A B50K*2-C
R93 6K8
LOW R39
10K
C68
47uF/25V
3 2
1
U13A
4580M
R120
1M
C150
22P
R108
1K1
VR27A
B50K*2-C
R103
1K8
MID
R76
910R
C130
12N
R81 910R
C114
33N
C117
33N
C141
12N
C135
18N
C74
47uF/25V
R143
5K1
3 2
1
U14A
4580M
VR29A
B50K*2
R216 20K
C155
22P
C78
47uF/25V
BAL
80HZ
2.5K
EQ HI
12KHZ
C125
18N
VR26B
B50K*2-C
R98
6K8
VR28B
B50K*2-C
R97
6K8
LOW
C70
47uF/25V
5 6
7
U13B
4580M
R118
1M
C151
22P
R110
1K1
VR27B
B50K*2-C
R104
1K8
MID
R78 910R
C131
12N
R82
910R
C118
33N
C119
33N
C143
12N
C137
18N
C72
47uF/25V
80HZ
2.5K
R210
1K
R212
1K
R144
5K1
5 6
7
U14B
4580M
VR29B B50K*2
R214
20K
C153
22P
C76
47uF/25V
LEVEL
R174
1K
R172
1K
R158
5K1
R160
5K1
R153
22K
VR31 B50K
VR32 B50K
R156 22K
AUX-FX LEVEL
AUX-MON LEVEL
J4
POST (PRE)
VR30
W50K
R178 4K7 R177 4K7
R151 8K2
R147 4K32 R148 4K32
R152 8K2
R48
10K
R124 36K
R128 4K7
TR4 3904
R114 1K
LD4 RED
PEAK
D12 4148
VR25A B10K*2
C61
47uF/25V
R201 100R0
VR25B B10K*2
C62
47uF/25V
GAIN GAIN
LEFT-BUS
RIGHT-BUS
AUX-1
AUX-2
LINE IN 3/4
LINE IN 5/6
+VCC
-VCC
84
U7C 4580M
84
U8C 4580M
C183
100N
C184 100N
C161 100N
C162 100N
84
U9C 4580M
84
U10C 4580M
C185
100N
C186 100N
C163 100N
C164 100N
84
U11C 4580M
84
U12C 4580M
C187
100N
C188 100N
C165 100N
C166 100N
84
U13C 4580M
84
U14C 4580M
C189
100N
C190 100N
C167 100N
C168 100N
+VCC +VCC
--- 6 ---
