36
35
37
13
30
- 2-TRACK IN/OUT
Use the Tape input if you wish to listen to your Mix from a Tape Recorder or DAT, you can assign the signal coming
from the Tape Recorder either to a pair of studio monitor using the Control Room assignment on the front panel or
directly to the Main Mix.
Input
Output
These 1/4" TRS sockets will route the main mix into a tape recorder.
These stereo outputs are supplied with 1/4" jack sockets and con-
trolled by the Main Mix Level. The output level can be varied from
- to +10dB.
- MAIN MIX OUTPUT
33
These 1/4" phone sockets will be used to send the signal to Studio Monitor speakers or to a second set of PA.
- CONTROL ROOM OUTPUT
34

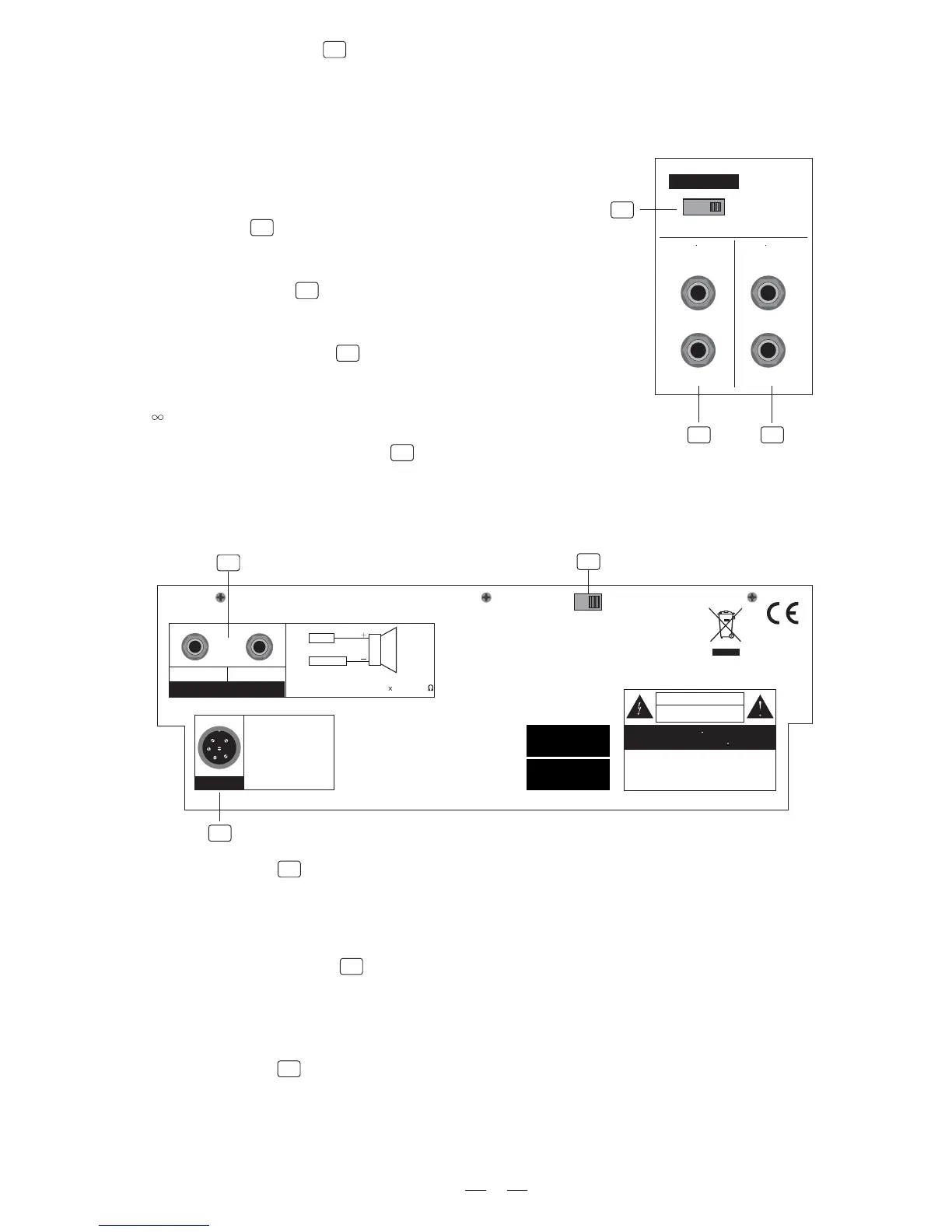

4.12 REAR PANEL
LEFT
RIGHTRIGHT
LEFT
31
- 2TK IN
This control is used to adjust the level of 2TK IN.
34 33
MAIN MIX
OUTPUT
C.R
OUTPUT
35
- POWER IN
Used to connect the power supply box.
36
- SPEAKER OUTPUT
These 1/4" phone sockets are used to connect passive speakers directly, only these output signals through
SPEAKER OUTPUT sockets are amplified by built-in power amplifier.
32
- POWER AMP
This switch is used to turn ON or OFF the built-in power amplifier.
37
- PHANTOM
This switch will apply +18 Volt Phantom Power only to the 5 XLR microphone
Inputs. When these XLR sockets are
connected with devices that do not require Phantom Power, please make sure the Phantom Power is turned off,
otherwise, this may damage the device and mixer.
OFF ON
POWER AMP
32
RIGHT
SPEAKERS
TIP
SLEEVE
POWER IN
ON OFF
LEFT
SERIAL
MODEL
DYNADYNAMIC POWER: 2 480W @4
THIS CONNECTION
FOR ALTO
POWER SUPPLY ONLY!
PHANTOM
REPLACE WITH THE SAME TYPE FUSE AND RATING
DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE
WARNING: SHOCK HAZARD DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTIONCAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO
NOT OPEN
CAUTION:
Note:This connection is for Alto power supply box only!
