3
(1) BI-POLAR MAIN POWER SWITCH
(2) AC POWER SOCKET WITH MAIN FUSE
(3) GROUND SWIT H
(4) SIGNAL LIMIT, GREEN/RED LED
(5) LINK OUT ON XLR CONNECTOR
(6) LINE /MIC INPUT ON CONNECTOR
(7) MAIN CONTROL
C
VOLUME
COMBO
(3)
(5)(6) (7)
(4)

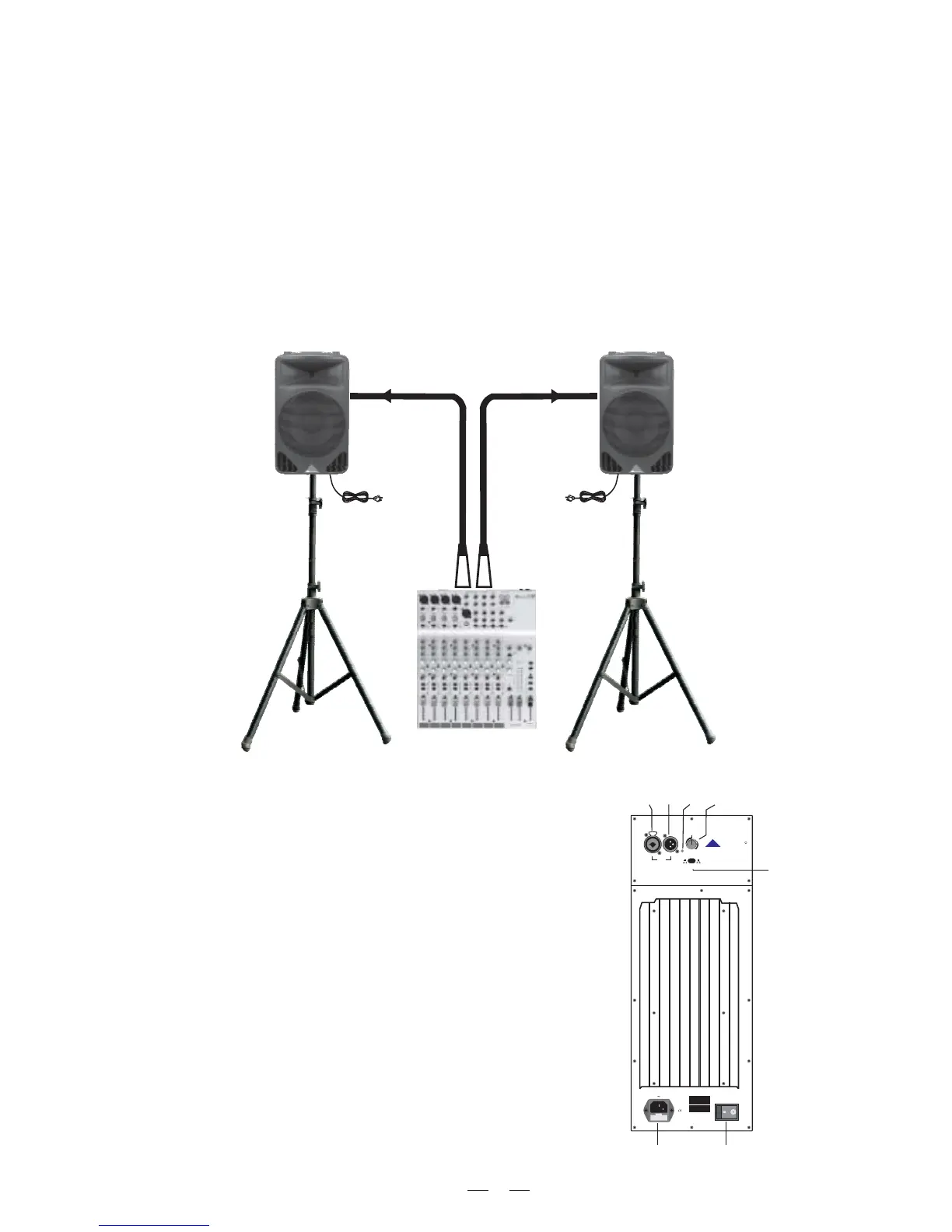

2. PS 4HA ACTIVE SPEAKER CABINET QUICK START
Signal Cable
Power Cord
Tripod
Mount
Main Mix
Left
Output
Mixer
Tripod
Mount
Power Cord
Right
Output
Main Mix
Signal Cable
Make all initial connections with all the equipment powered off, and ensure that all the main volume controls are turned
completely down.
1). Connect one side of the signal cable at your audio mixer into output left /right (with Stereo-Jack or XLR) and the
other side of the cable into the line input (COMBO) of your active speaker cabinet (with Stereo-Jack or XLR).
2). Connect the power cord to mains.
3). Turn on your mixer first, then the active speaker cabinets.
4). Turn up the volume control of the active speaker cabinets.
5). Use PFL function to get the proper input level for the mixer, and adjust the main mix level control to manipulate
the output level.
6). After using, turn off your active speaker cabinets first, then the mixer.
-. CONNECTION PLATE
(1)(2)
SIGNAL
LIMIT
SHIELD
LTO
R
BAL
LINKINPUT
VOLUME
PS 4HAPS 4HA
MAX
MIN
MIN MAX
L
I
N
E
M
I
C
PUSH
1
3
2
NEW TIDE
ACTIVE SPEAKER CABINET
BI-AMP. POWERAMPLIFIER
PROCESSORDSP
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCKDO NOT EXPOSE THIS PRODUCT TORAIN OR MOISTURE.
"WARNING"
POWER
MODEL
SERIAL
230V 50Hz
Useonly with a 250V fuse
