Alto SR Series User Manual

9

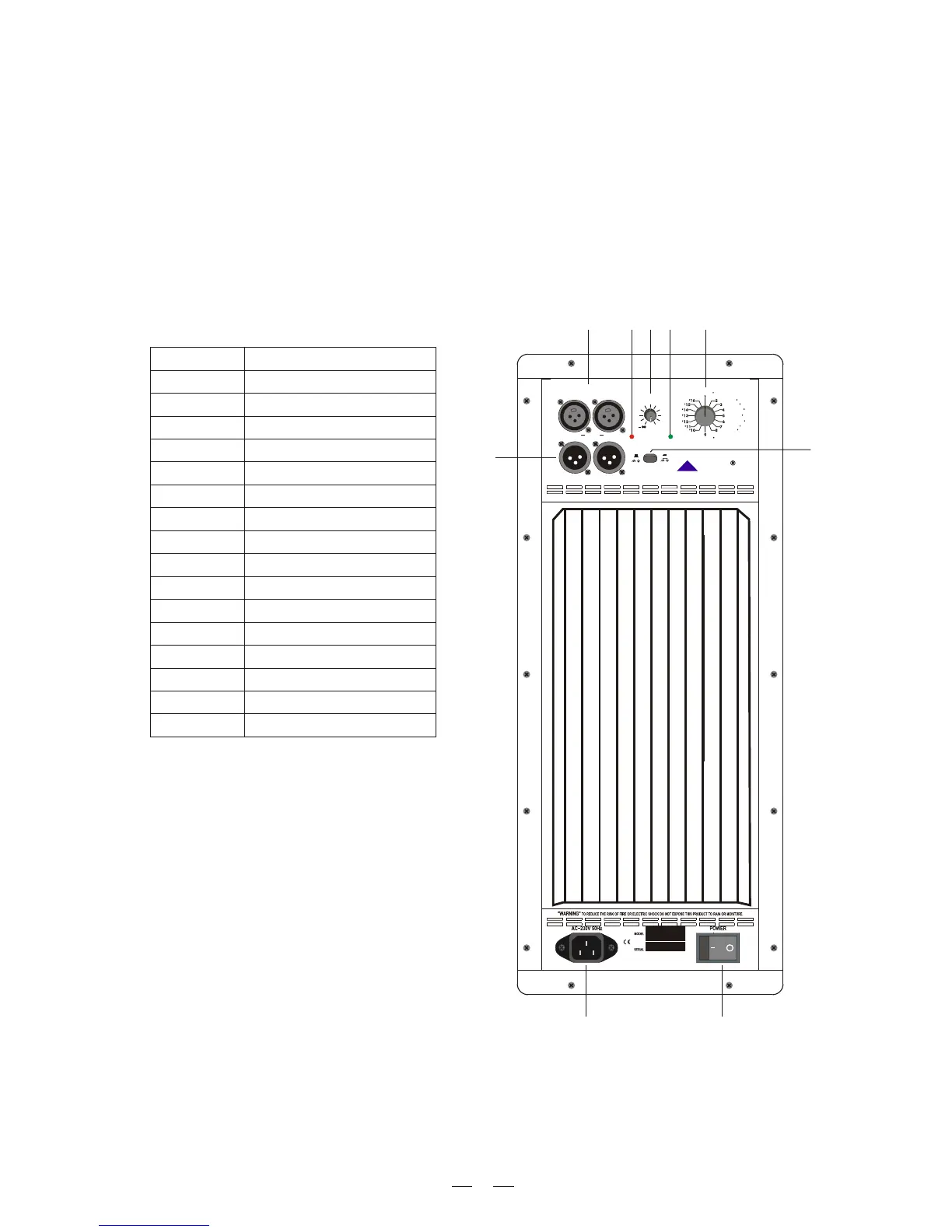

-. Active Subwoofer Speaker for SR500SA
(1) Bi-polar main power switch
(2) Input AC power socket
(3) Ground switch
(4) POWER, blue LED, indicate ON status
(5) SIGN / LIMIT, green/red LED
(6) LINK OUT on XLR connector
(7) LINE / MIC IN on XLR connector
(8) Main VOLUME control
(9) PRESETS control with 16 presets as follows
(1)(2)
(3)
(4)(5)
(6)
(7) (8) (9)
PL
SHIELD
VOLUME
+4dB
SIGN/LIMIT
LEFTRIGHT
LINKLINK
INPUTS
BAL +4dB
LTO
SUBWOOFER ACTIVE WITH
SR500SA
DSP PROCESSOR
1
3
2
JT
1
3
2
JT
80Hz BOOST 0
80Hz BOOST 180
100Hz BOOST 0
100Hz BOOST 180
120Hz BOOST 0
120Hz BOOST 180
140Hz BOOST 0
140Hz BOOST 180160Hz BOOST 180
160Hz BOOST 0
100Hz FLAT 0
100Hz FLAT 180
120Hz FLAT 0
120Hz FLAT 180
140Hz FLAT 0
140Hz FLAT 180
Preset NO
Descriptions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
80Hz BOOST 0°
80Hz BOOST180°
100Hz BOOST 0°
100Hz BOOST 180°
120Hz BOOST 0°
120Hz BOOST 180°
140Hz BOOST 0°
140Hz BOOST 180°
160Hz BOOST 0°
160Hz BOOST 180°
100Hz FLAT 0°
100Hz FLAT 180°
120Hz FLAT 0°
120Hz FLAT 180°
140Hz FLAT 0°
140Hz FLAT 180°
