Altronix acm8cb - Typical Application Diagram

- 4 - ACM8/CB Sub-Assembly

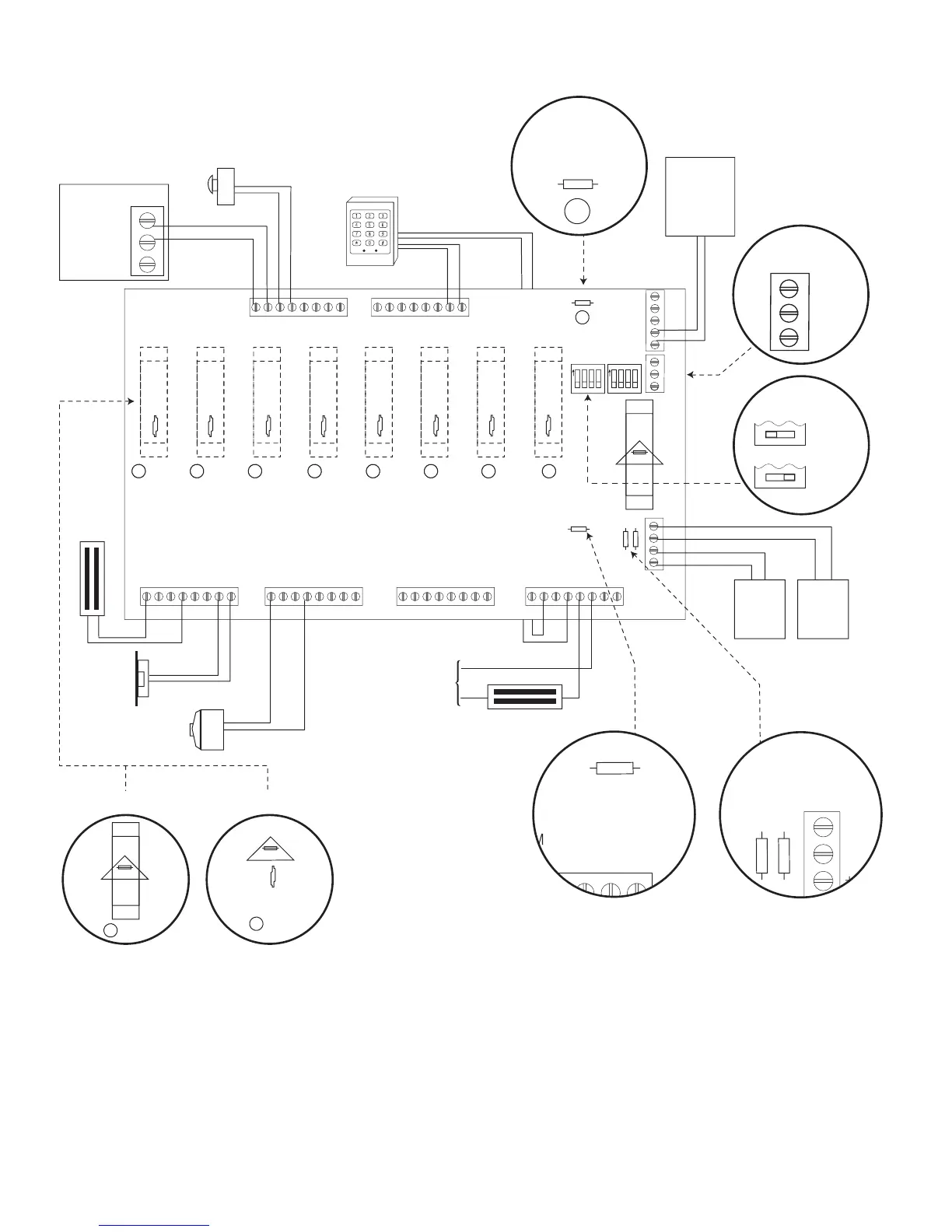

Typical Application Diagram:
NC
NO
C
Normally Open (N.O.)
Door Releasing
Device
Access Control Panel
Output
Relay
Mag.
Lock
MAG.
LOCK
Electric
Strike
Electromagnetic
Door Holders
AC or DC
Power
Supply
(optional)
AC or DC
Power
Supply
(req'd.)
FACP
(Fire Alarm
Control
Panel)
UL Listed
Power Supply
For this application
corresponding
fuse F8 must be
removed.
ACM8CBACM8
LED1
F1
3.5A 250V
LED1
2A 250V
Keypad
NC C NO COM
OUTPUT 1
LED1
F1
NC C NO COM
OUTPUT 2
IN GND
1
IN GND
2
IN GND
3
IN GND
4
IN GND
5
IN GND
6
IN GND
7
MAIN
IN GND
8
LED2
LED3
LED4
LED5
LED6
LED7
LED8
J2
TRG
FACP
NC C NO COM
OUTPUT 3
NC C NO COM
OUTPUT 4
NC C NO COM
OUTPUT 5
NC C NO COM
OUTPUT 6
NO C NC + INP --- T + RET -
NC C NO COM
OUTPUT 7
NC C NO COM
OUTPUT 8
--- +
Power
--- +
Control
F2
F3
F6 F7 F8
F4
F5
J1
J3
FACP INTERFACE
10A 250V
FACP Dry
Form "C" Output
NO C NC
FACP
1 2 3 4
ON
1 2 3 4
ON
Enabled
Disabled
FACP Interface
SW1-SW8
ON
1
ON
1
J2
--- +
Control
J1
Intact = One P/S Input
Cut = Dual P/S Input
NC C NO COM
OUTPUT 8
J3
Intact = DC Input
Cut = AC Input
LED1
LED2
LED3
LED4
LED5
LED6
LED7
LED8
TRG
FACP
Intact = Dry Input
Cut = Wet Input
Fig. 1
Fig. 1b
WARNING: To reduce the risk of fire or electric shock, do not expose the
unit to rain or moisture.
Replace fuses (ACM8 only) with the same type and rating, 3.5A/250V.
Fig. 1a
Fig. 1cFig. 1d
