Altronix AL300ULM User Manual

M series - 7 -

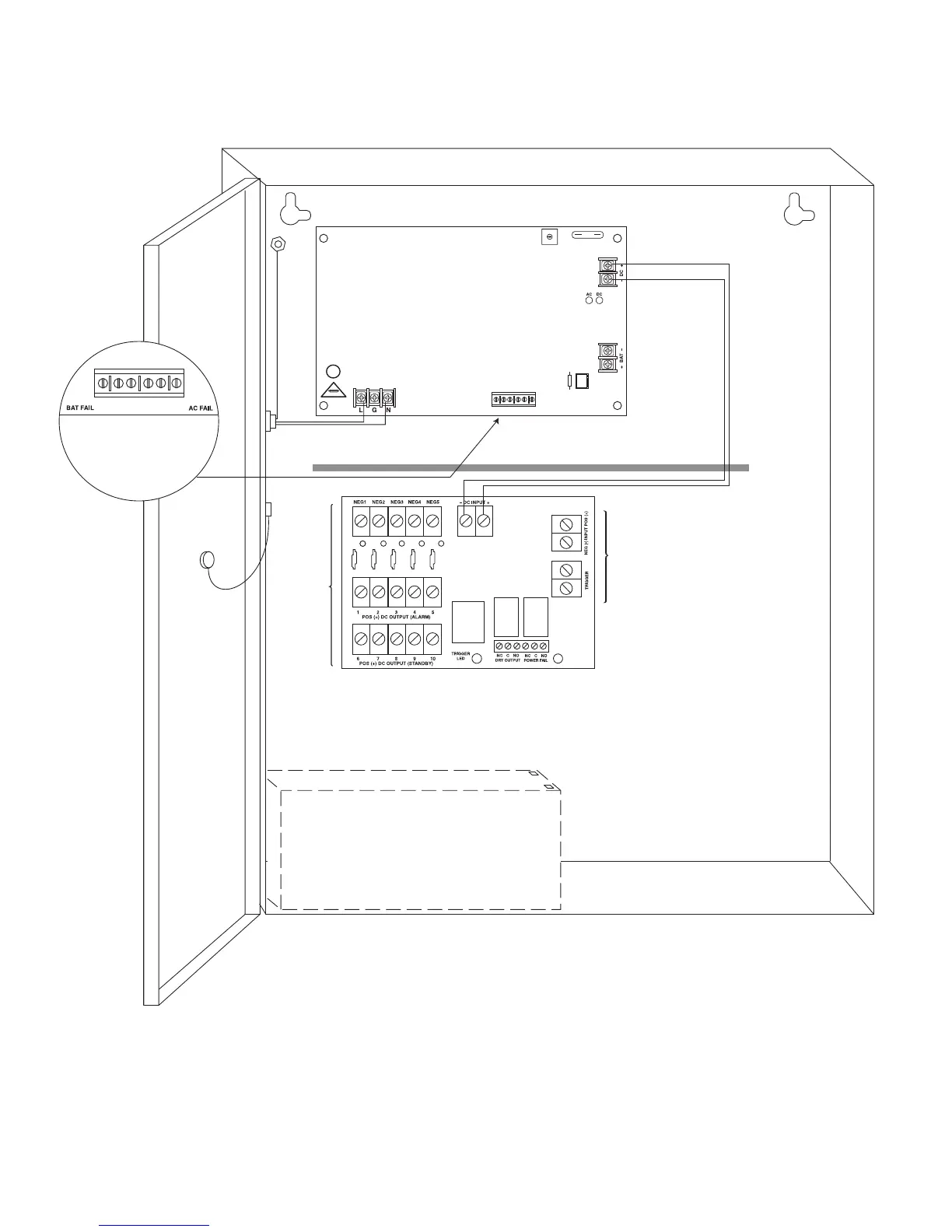

Fig. 3 - AL1012ULM
Fig. 3a
Door
Wire Strap
(from Enclosure
to Door)
115VAC power mains
non power-limited
non power-limited
Battery Connections
non power-limited
Divider
Battery and AC
Supervision Circuit
(power-limited).
Class 1
DC Outputs
to devices
(power-limited)
CAUTION: De-energize unit prior to servicing. For continued protection
against risk of electric shock and fire hazard replace fuses with the same type
and rating. Do not expose to rain or moisture.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
CAUTION: Optional rechargeable stand-by batteries must match the power supply
output voltage setting.
NC C NO NC C NO
BAT FAIL AC FAIL
AC DELAY
VR1
15
5A 250V
NC C NO NC C NO
Earth
ground
Optional Rechargeable
Stand-by Battery
Fire Alarm
Inteface
Power-limited
Battery & AC
Supervision Circuit
(power-limited)
