Altronix M Series User Manual

- 6 - M series
+ DC ---
BAT FAIL
NC C NO NC C NO
+ BAT ---
AC FAIL
LG N
5A 250V
SW1
DCAC BAT
Wire
Strap
(from
Enclosure
to Door)
115VAC
power mains
non power-
limited
Class 1
Divider
NC C NO
DRY OUTPUT
TRIGGER
LED
6 78910
POS (+) DC OUTPUT (STANDBY)
NC C NO
POWER FAIL
TRIGGER
1 2345
POS (+) DC OUTPUT (ALARM)
NEG1 NEG2 NEG3 NEG4 NEG5
-- DC INPUT +
NEG (-) INPUT POS (+)
DC Outputs to devices
(power-limited)
Fire Alarm
Interface
Power-limited
non power-limited
Battery Connections
non power-limited
NC C NO NC C NO
AC FAIL
BAT FAIL
Battery and AC
Supervision Circuit
(power-limited)
Switch Detail
CAUTION: De-energize unit prior to servicing. For continued protection against risk of
electric shock and fire hazard replace fuse with the same type and rating.
Do not expose to rain or moisture.
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
CAUTION: Optional rechargeable stand-by batteries must match
the power supply output voltage setting.
Optional Rechargeable
Stand-by Battery
Optional Rechargeable
Stand-by Battery
Earth
Ground
OFF - 24V
ON - 12V
ON
OFF - 24V
ON - 12V
ON

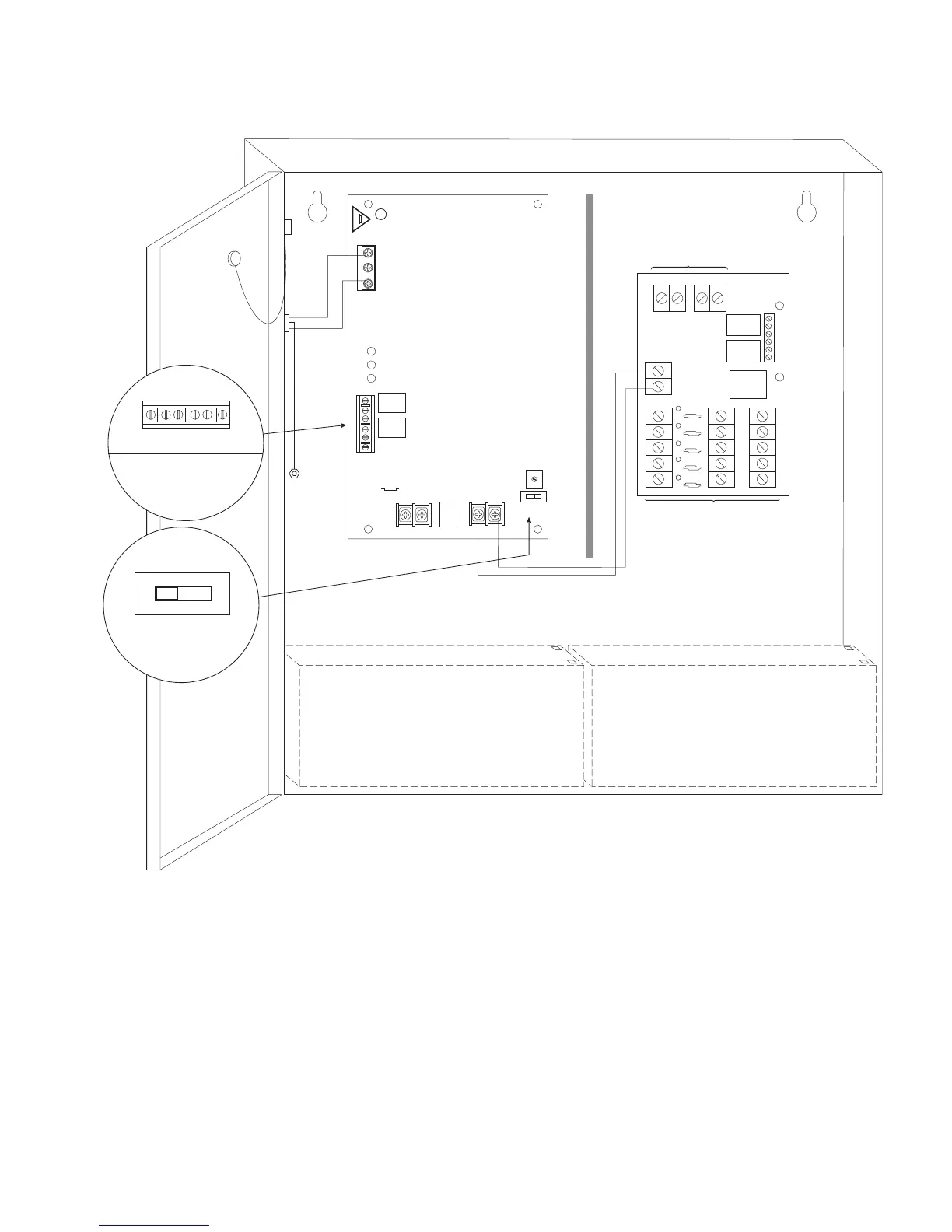

Fig. 2 - AL600ULM
Fig. 2a
Fig. 2b
