- 8 - M Series

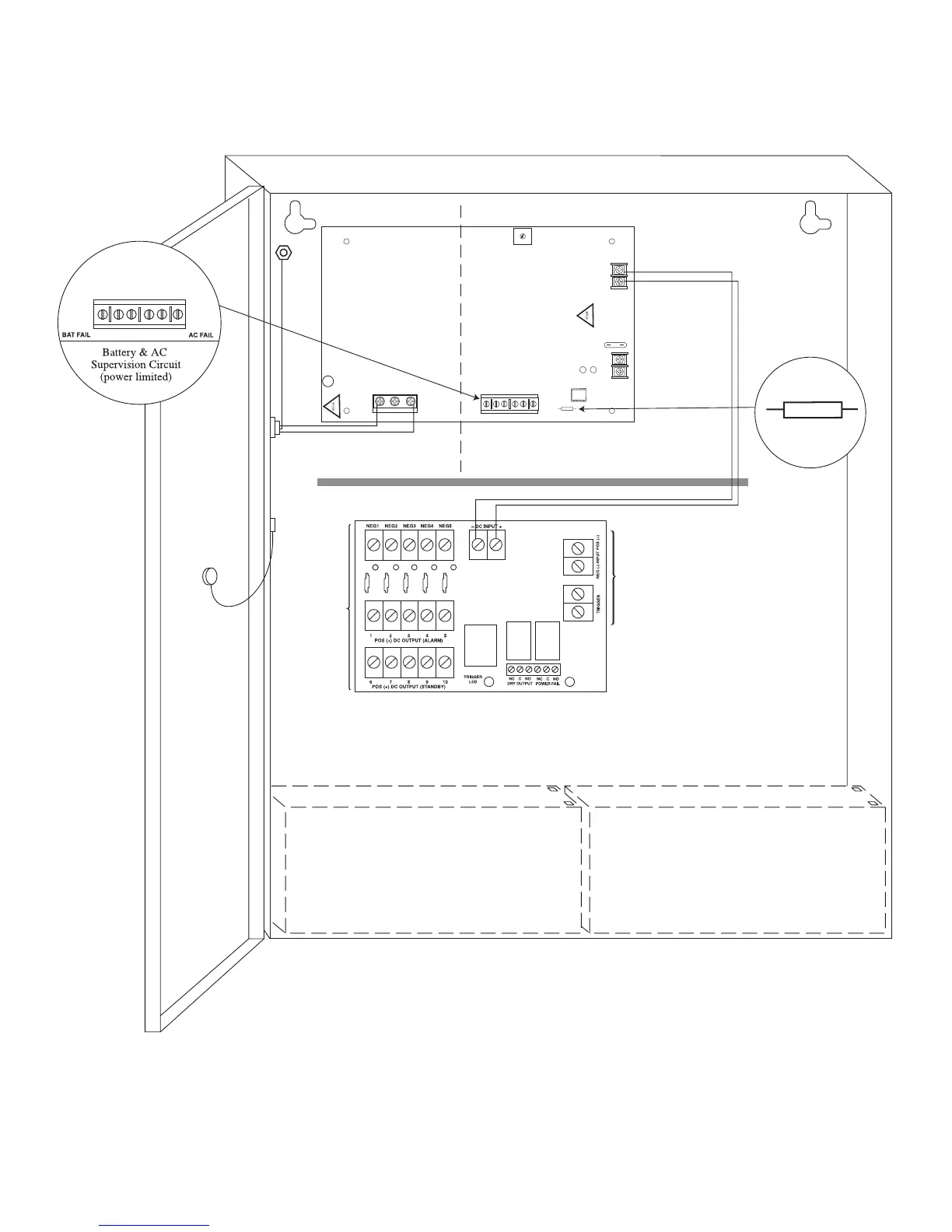

Fig. 3 - AL1012ULM
+ BAT -
L G N
BAT FAIL NC C NO NC C NO AC FAIL
AC
DC
- DC +
BAT FAIL NC C NO NC C NO AC FAIL
Battery & AC
Supervision Circuit
(power-limited)
AC Delay
J1
AC Delay
CAUTION: De-energize unit prior to servicing. For continued protection
against risk of electric shock and fire hazard replace fuses with the same type
and rating. Do not expose to rain or moisture.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
CAUTION: Optional rechargeable stand-by batteries must match the power supply
output voltage setting.
- DC INPUT +
POS (+) DC OUTPUT (ALARM)
POS (+) DC OUTPUT(STANDBY)
6 7 8 9 10
1 2 3 4 5
TRIGGER
LED
POWER
ON
LED
NEG1 NEG2 NEG3 NEG4 NEG5
TRIGGER
NC C NO NC C NO
DRY OUTPUT POWER FAIL
MOM5_S
- INPUT +
DC Outputs
to devices
(power-limited)
Fire Alarm
Inteface
Power-limited
115VAC
power mains
non power-limited
Class 1
Earth
ground
Battery
connections
non power-limited
non power-limited
Wire Strap
(from Enclosure
to Door)
Optional Rechargeable
12VDC Stand-by Battery
Fig. 3a
Fig. 3b
To Next Page
