1. The regulator goes directly into the cylinder valve.Always
make sure the regulator bottoms fully. The use of any adap-
tors is illegal.
2. Screw the regulator into the cylinder valve. DO NOT use a
tool to tighten the regulator; it is to be hand-tightened only.

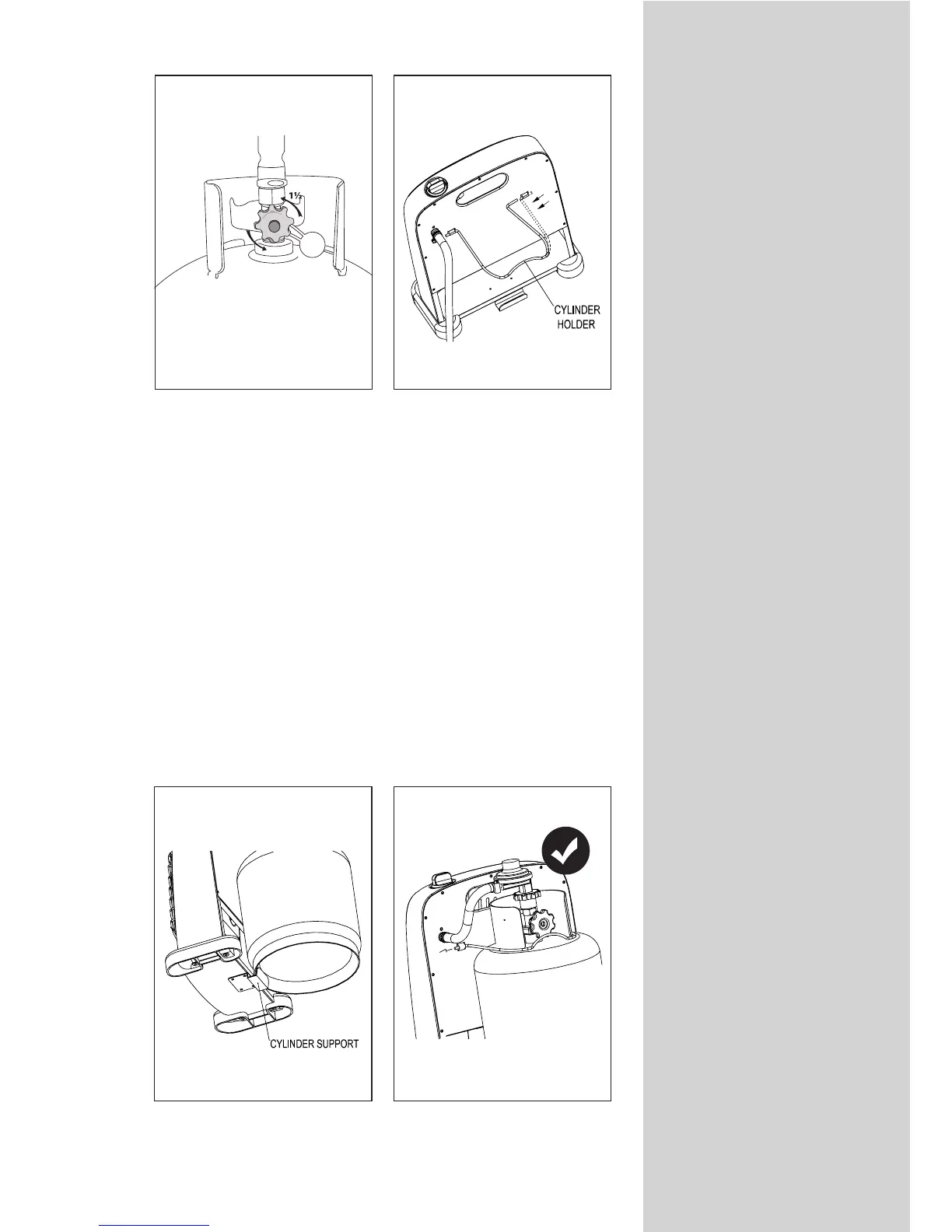

3. Open the control valve 1½ turns to the left (anti-clockwise).
(Figure C)
4. Push the control knob down for at least 20 seconds, but
DO NOT try to ignite the heater. This will allow gas to ow
through the heater,making the leak test possible.
5. DO THE LEAK TEST (page 4)
6. Hold up the cylinder holder (FIG D), place the lled gas
cylinder onto the back of the heater with the cylinder valve
wheel facing outwards. The cylinder foot ring locates onto
the cylinder support foot ring (FIG E). Secure the cylinder by
locating the cylinder holder over the cylinder valve protection
shroud and connecting the regulator (FIG F).
4
Fig.C Fig.D
