6. Description of Display Screens
6-5

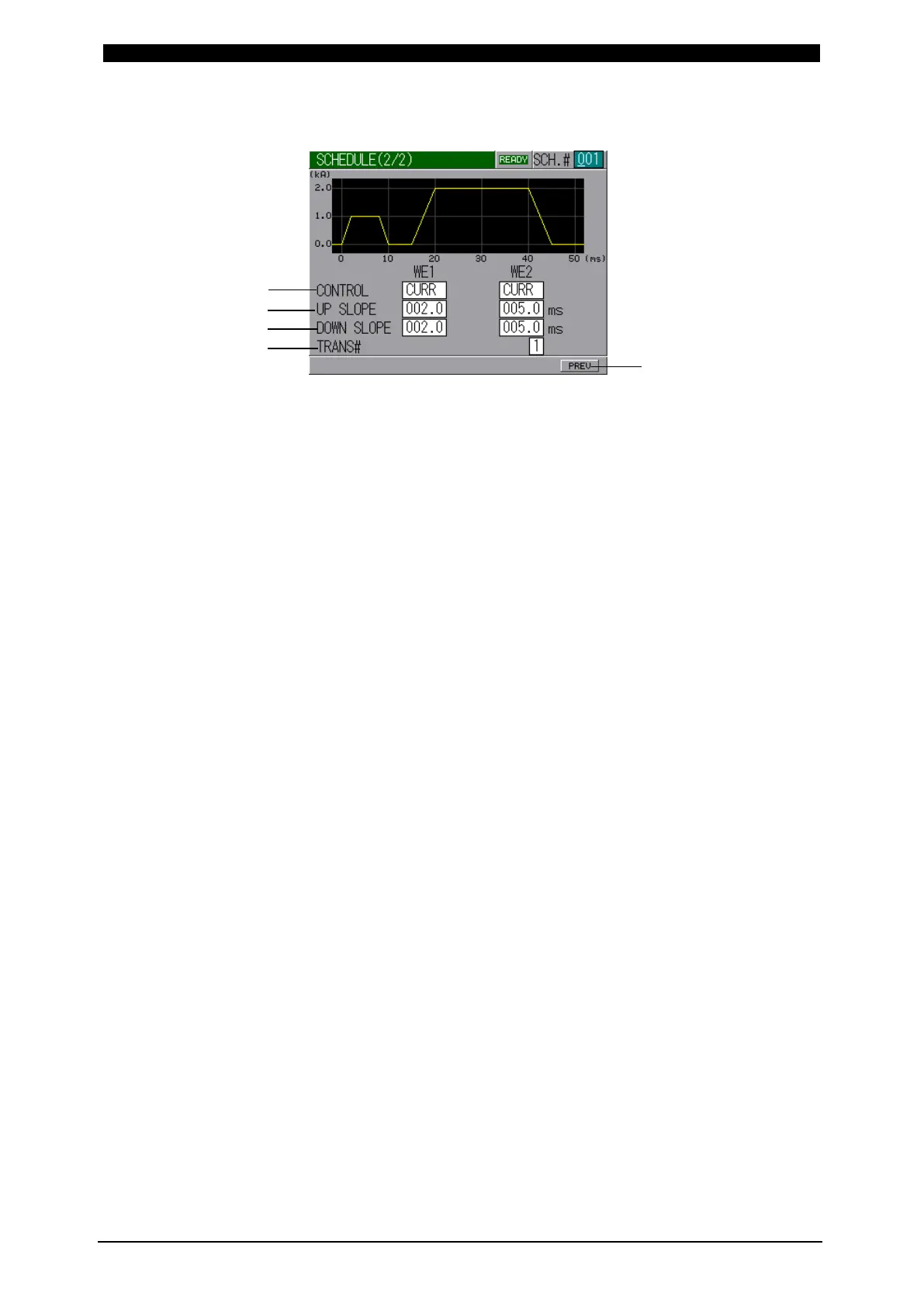

SCHEDULE (2/2) Screen
As the following, each item of (a) to (e) is described.
(a) CONTROL
Sets a control method for WE1 and WE2 respectively.
CURR: Constant Current Control
VOLT: Constant Voltage Control
COMB: Constant Current/Constant Voltage Combination Control
POWER-H: Constant Power Control (HIGH Range)
POWER-L: Constant Power Control (LOW Range)
(b) UP SLOPE
Set the upslope time (to increase the weld current gradually) (See 9.
Timing Chart). Set it for WE1 and WE2 respectively.
(c) DOWN SLOPE
Set the downslope time (to decrease the weld current gradually) (See 9.
Timing Chart). Set it for WE1 and WE2 respectively.
(d) TRANS#
Indicates the number of a transformer.
Works only at the time when Transformer Selector MA-650A is used.
(e) PREV
Displays SCHEDULE (1/2) Screen.
(a)
(b)
(c)
(d)
To Next Page
