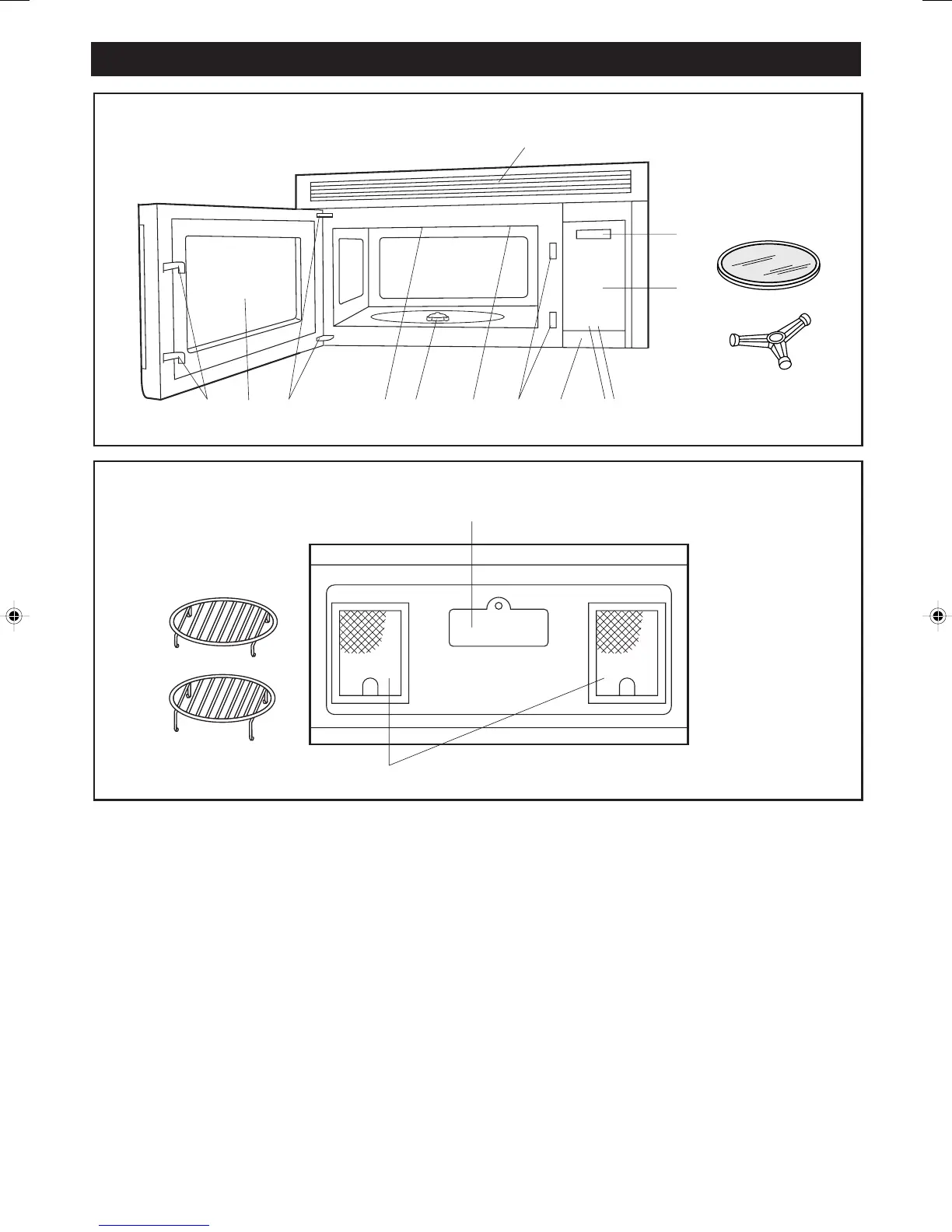

PART NAMES
BOTTOM VIEW
(Rear of Microwave)
1. Oven door with see-through window.
2. Door hinges.
3. Waveguide cover
DO NOT REMOVE.
4. Turntable motor shaft.
5. Oven light.
It will light when oven is operating or door is open.
6. Safety door latches.
The oven will not operate unless the door is
securely closed.
7. One touch DOOR OPEN button.
Push to open door.
8. VENT HI / LO / OFF button.
Push for high/low/off.
9. LIGHT button.
Push for on/off.
(Front of Microwave)
13
14
17
18
3
21
4
6
5
6
7
89
10
11
15
16
12
FRONT VIEW
10. Auto-Touch control panel.
11. Time display: Digital display, 99 minutes
99 seconds.
12. Ventilation openings.
13. Light cover.
14. Grease filters.
15. Removable ceramic turntable.
The turntable will rotate clockwise or
counterclockwise. Only remove for cleaning.
16. Removable turntable support.
Place the turntable support on the floor of the
oven cavity and the turntable on the turntable
support.
17. Removable low rack for broiling and meat and
poultry roasting.
18. Removable high rack for two level baking.
