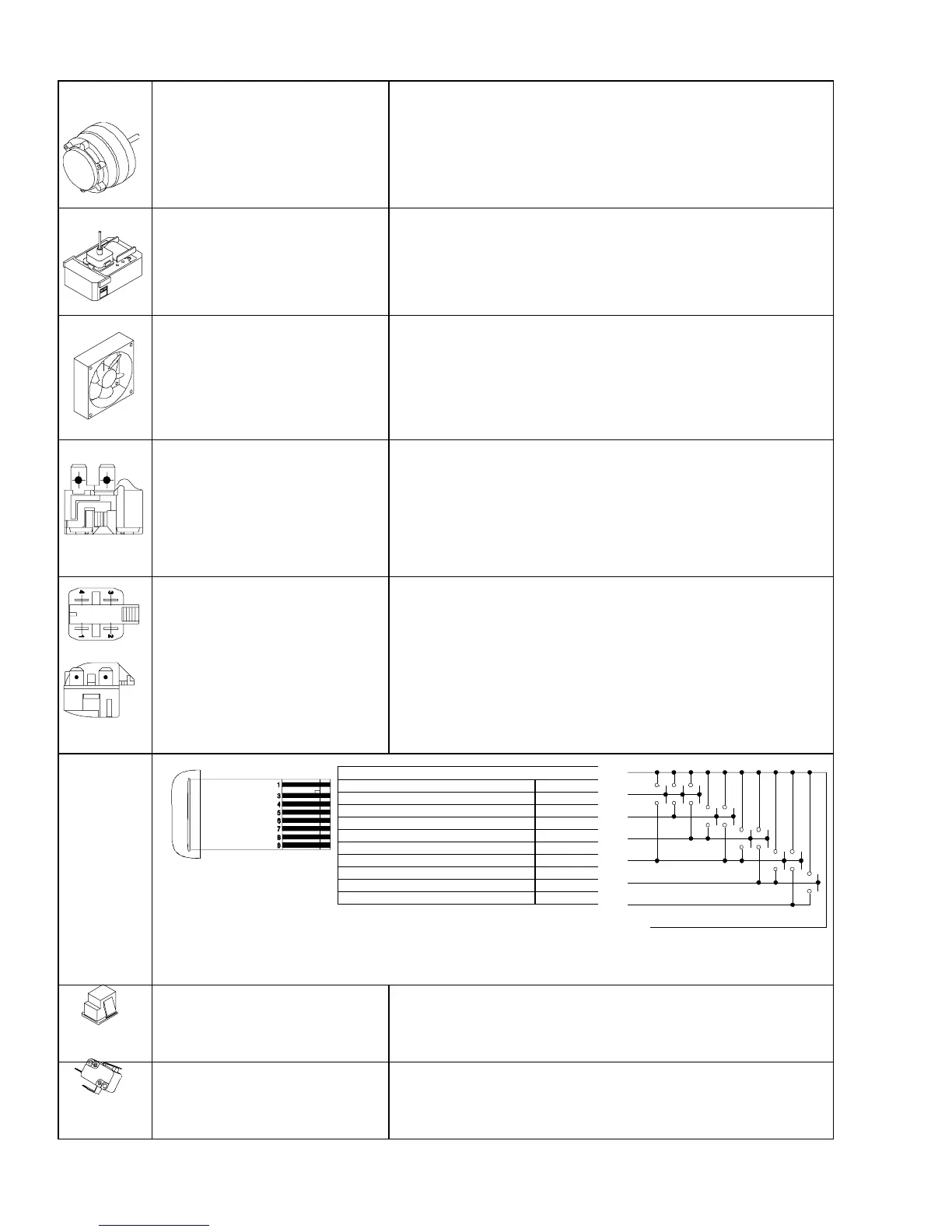

Component Specifications
10522103 Motor, condenser PSC Volt
Rotation (facing end opposite
shaft)
RPM
Watt
Current
Resistance
115 VAC, 60 Hz
Clockwise
1300 RPM
6.4 W
0.05 A
480
Ω
10654207 Motor, ECM evaporator fan Volt
Rotation (facing shaft)
RPM
Watt
115 VAC, 60 Hz
Counterclockwise
2150 RPM
2.2 W
12075003 Motor and blade, refrigerator fan and
condensate evaporation fan
Volt
Rotation (facing shaft)
RPM
Watt
24 VDC
Counterclockwise
3300 RPM
1.4 watts
10377015 Overload Volt
Ult. trip amps @ 158°F (70°C)
Close temperature
Open temperature
Short time trip (seconds)
Short time trip (amps @ 77°F
(25°C))
115 VAC
3.51 A
142°F (61°C) ±9°
257°F (125°C) ±5°
10 seconds
14 A
10097202 Relay Resistance
With power off check:
Across terminals 2 & 3
Shorted
Open
3

12
Ω
0
Ω
Very high or infinite ohms
12235201 Switch, Keyboard
C3680306 Switch, auger interlock Type
Volt
Current
DPST, NO
250/125 VAC
10/5 A
12074904 Switch, refrigerator light (left opening
door hinge)
Type
Volt
Current
SPST, NC
125/250 VAC
3 A
S10S9S8S7S6S5S4S3S2S1
1
3
6
PIN NO.
7
4
8
5
PERIMETER
STATIC GUARD
Switch Functions
Display On S1
Freezer Tem perature S2
Refrigerator Tem perature S3
Warmer S4
Colder S5
S6
Max Cool S7
Fast Freeze S8
Alarm Off S9
Display Off S10
*
