Amana B136CAL3 - Additional Part Numbers

February 1998 7 12074208
Component Specifications
Additional Part Numbers
12196401 Basket, bottom feezer
12234601 Basket, top freezer
B5742603 Blade, condenser fan
12059901 Blade, evaporator fan
12061902 Condenser assembly
12056901 Crisper pan assembly
12144601 Crisper, pan
12073101 Deli drawer lid
12073201 Deli drawer top
12073301 Deli drawer
12039601 Door shelf assembly (refrigerator)
12039701 Door shelf assembly (refrigerator)
12097401 Dairy modeule assembly
14036505 Egg tray
12179801 Evaporator
10933002 Gasket, freezer door
10933001 Gasket, refrigerator door
D7813004 Harness, ice maker
12193401 Ice pan
R0167203 Module & motor assembly, ice maker
R0156669 Mold & heater assembly, ice maker
12201601 Overlay, keyboard
12021401 Shelf, crisper
12021301 Shelf, refrigerator
12104901 Shelf snugger
12296301 Shut off arm, ice maker
12096901 Socket, light
R0161060 Thermostat, ice maker (order
R0195019 cement alumilastic also).
10423129 Utility bin
14036404 Utility bin lid
12074906 Switch, refrigerator light (right opening
door hinge)
Type
Volt
Current
SPST, NC
125/250 VAC
3 amps

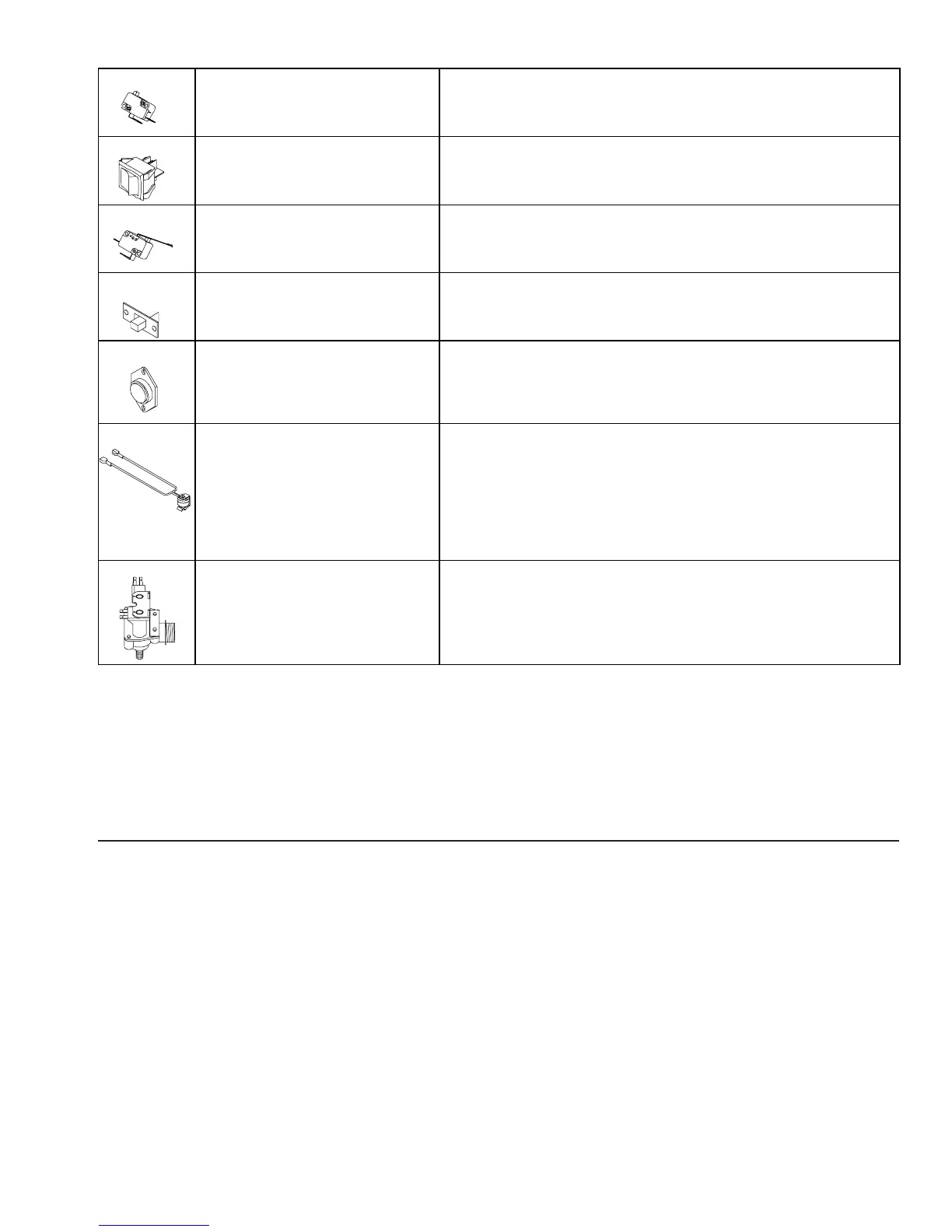

12074801 Switch, power Type
Volt
Current
DPST
125 VAC
15 A
12401402 Switch, freezer light, sealed Type
Volt
Current
SPST, NC
125/250 VAC
5.0/5/0 A
10544502 Switch, showroom Type
Volt
Current
SPDT
125 VAC
6 amps
C8983701 Thermistor Check resistance across
terminals
Bell Curve resistance (See
Page 11)
@77° F
@45° F
30,000 ohms ± 1% ohms
68,200 ohms ± 2% ohms
10442407 Thermostat Volt
Watt
Current
Resistance across terminals
Above 55° ±6°F
Below 20° ±8°F
Between 55° ±6°F and
20° ±8°F
120 VAC
1000 watts
10 amps
Open
Closed
Will stay in current state (either open or
closed) until either 55° ±6°F and 20°
±8°F is reached.
12070801 Valve, water Volt
Watt
Water pressure (inlet)
Max
Min
Fill rate
120 VAC, 60 Hz
20 watts
120 PSI
20 PSI
140 ±10 CC's at 7.5 seconds
