Amana B136CAL3 - Component Specifications

February 1998 5 12074208

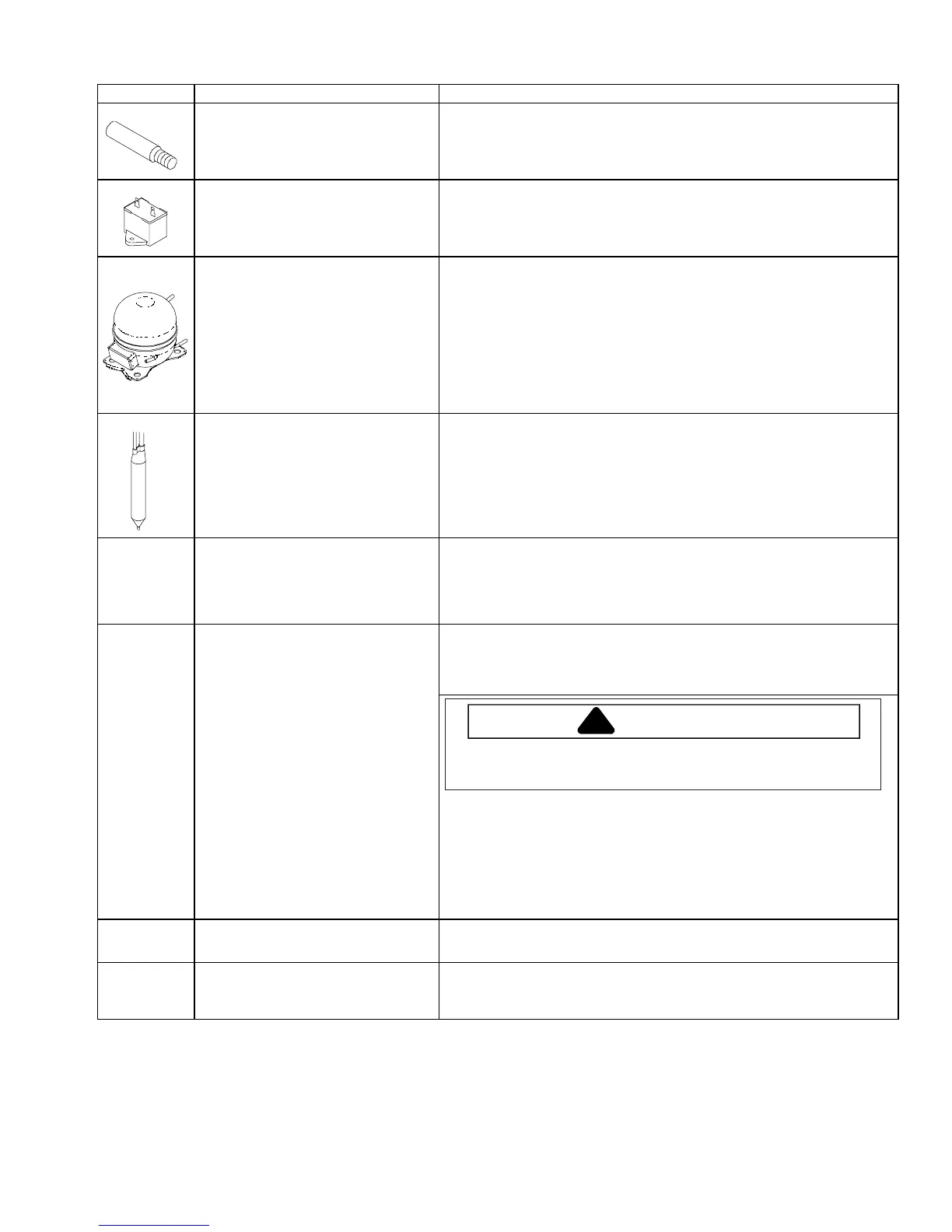

Component Specifications
Component Description Test Procedures
A3079001 Bulb Volt
Watt
115 VAC
40 watts
C8931604 Capacitor, compressor run Volt
Capacitance
220 VAC
15 Mfd +10%
-5%
12049702 Compressor Type
BTUH
Volt
Watt
Current
Lock rotor
Full load
Resistance
Run Windings
Start Windings
Fan Cooled, R134a refrigerant
970 BTUH
115 VAC 60 Hz
176 watts
21.3 A
1.6 A
2.60
Ω
4.35
Ω
B2150504 Drier Drier must be changed every time the system is opened for testing or
compressor replacement.
Desiccant (20) 8 x 12 4AXH - 7 M.S. -Grams
10428411 Heater, evaporator Volt
Wattage
Resistance
115 VAC
450 ± 5% W
30 ± 5%
Ω
Volt
Wattage
Resistance
115 VAC
20 W
661 ±7.5
Ω
12401301 Heater, mullion
For service use only.
Foamed in place. Not powered from
the factory.
To avoid risk of electrical shock which can cause death or
severe injury, disconnect electrical power to unit before
servicing.
To connect mullion heater to power:
1. Disconnect power to unit using power switch.
2. Remove toe grille. Locate water valve wiring harness.
3. Carefully, slit wiring harness vinyl sleeve to expose one black and
one white lead bent with bullet terminators.
4. Locate mullion heater leads at the left side of cabinet and connect to
black and white leads.
5. Wrap vinyl sleeve with electrical tape to close slit.
12106801 High voltage circuit board, PC See "Electronic Functional
Description"
12067101 Low voltage circuit board, PC See "Electronic Functional
Testing"
WARNING
!
