Amana HDC12 Service Training Manual

21

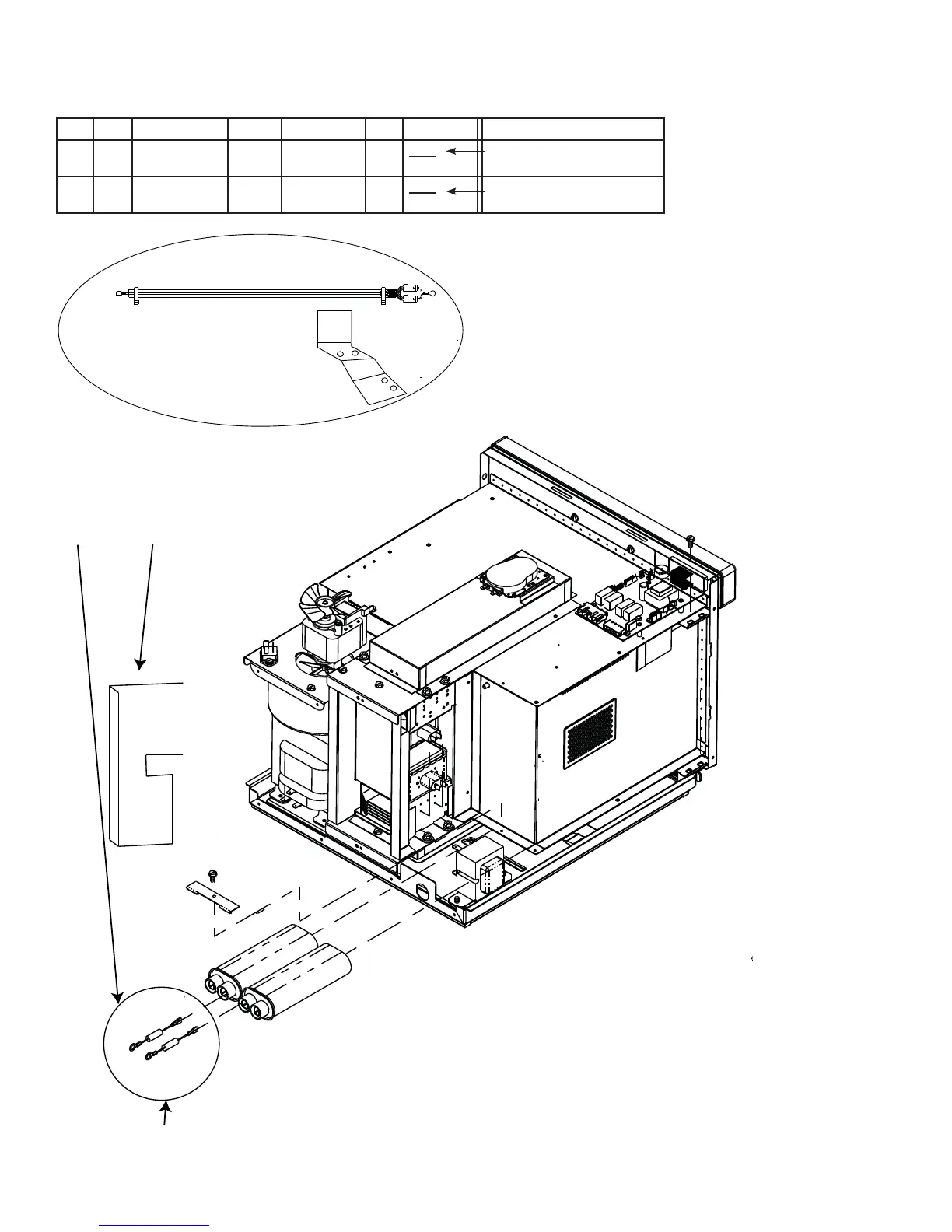

Capacitor / Diode Location
Capacitor / Diode location starting S/N 0902100848 and location prior to S/N 0902100848
* Use caution when looking up parts to assure you get the correct diode.
Flow divider is removed on this conguration
to improve airow to short lead diode.
Used on models starting at
serial number 0902100848
Used on models starting prior
to serial number 0902100848
Img Ref PartNumber Series Description Qty Note
1 7 13091701 DIODE 2
Note Used starting at serial number
0902100848
1 7 R9800022 KIT, DIODE 2
Note Used prior to serial number
0902100848
