Amana Menumaster MCHDC521 User Manual

Disassembly
To avoid the risk of electrical shock, personal injury, or death, disconnect power to oven and discharge capacitors
before following any disassembly procedure.
16

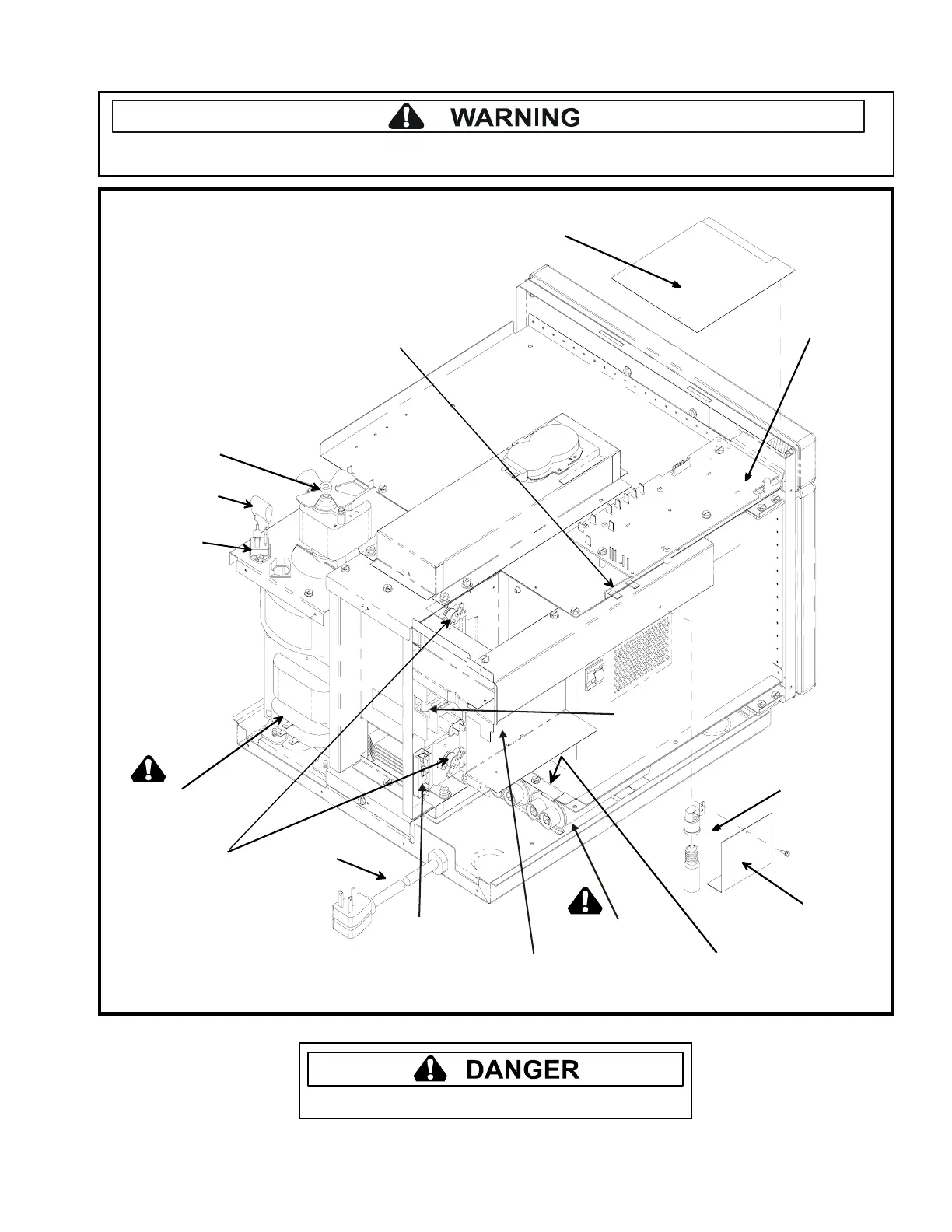

Control
board
Capacitors
Cavity
thermal
cutout
High Voltage
Transformer
Power cord
Blower
motor
Mounting bracket
Triac
Snubber
Magnetron TCO
Lamp and
receptacle
Spill
shield
Lamp
barrier
Line filter
(Located behind exhaust duct.)
Fuse
Terminal
Block
