Amana PBC092E00AX User Manual

15

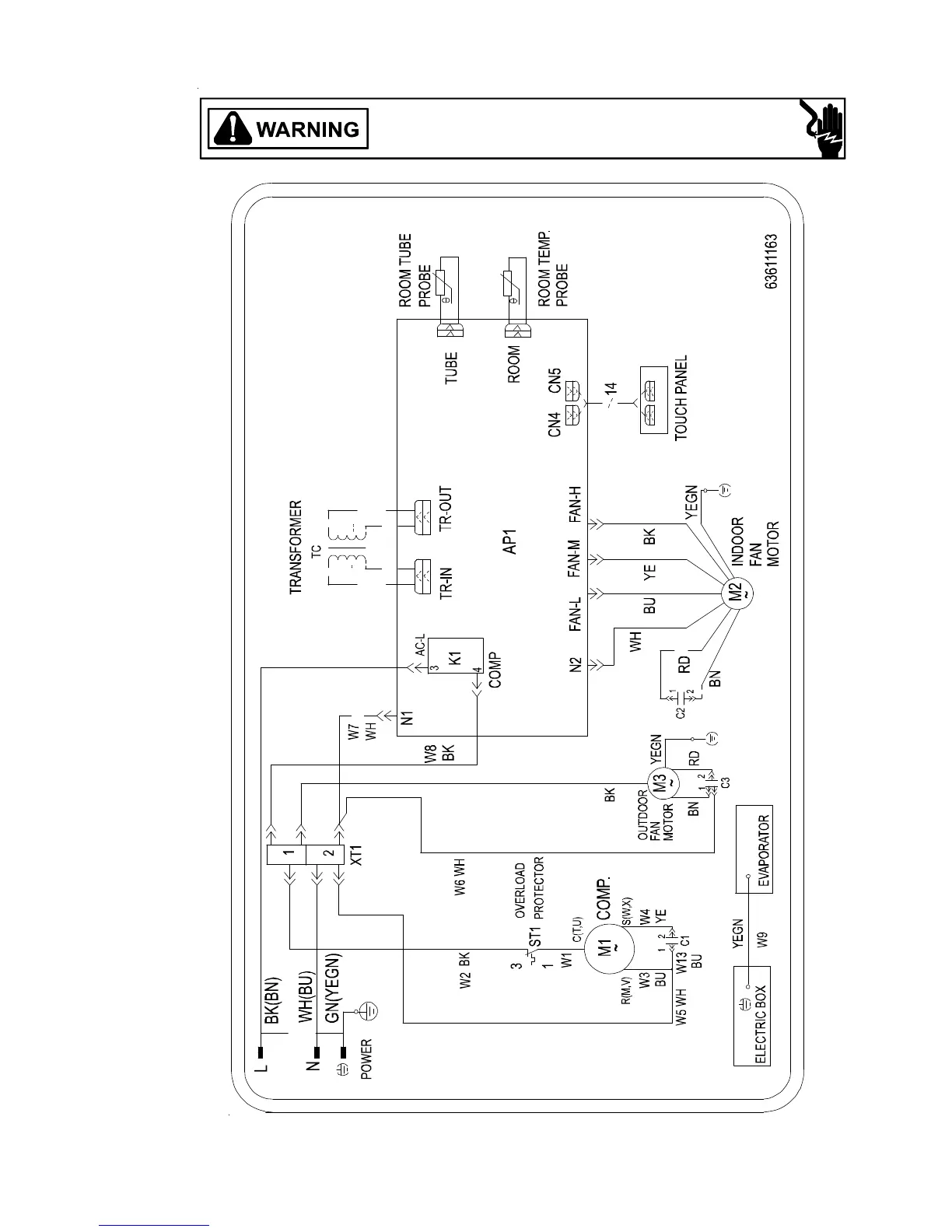

WIRING DIAGRAMS
HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
PBC***E00[A/B]*
115V units:C2=4uF,C3=15uF pt39,42;230V units:C2=1.5uF or 2.5uF,C3=2.5uF
II
I
