9

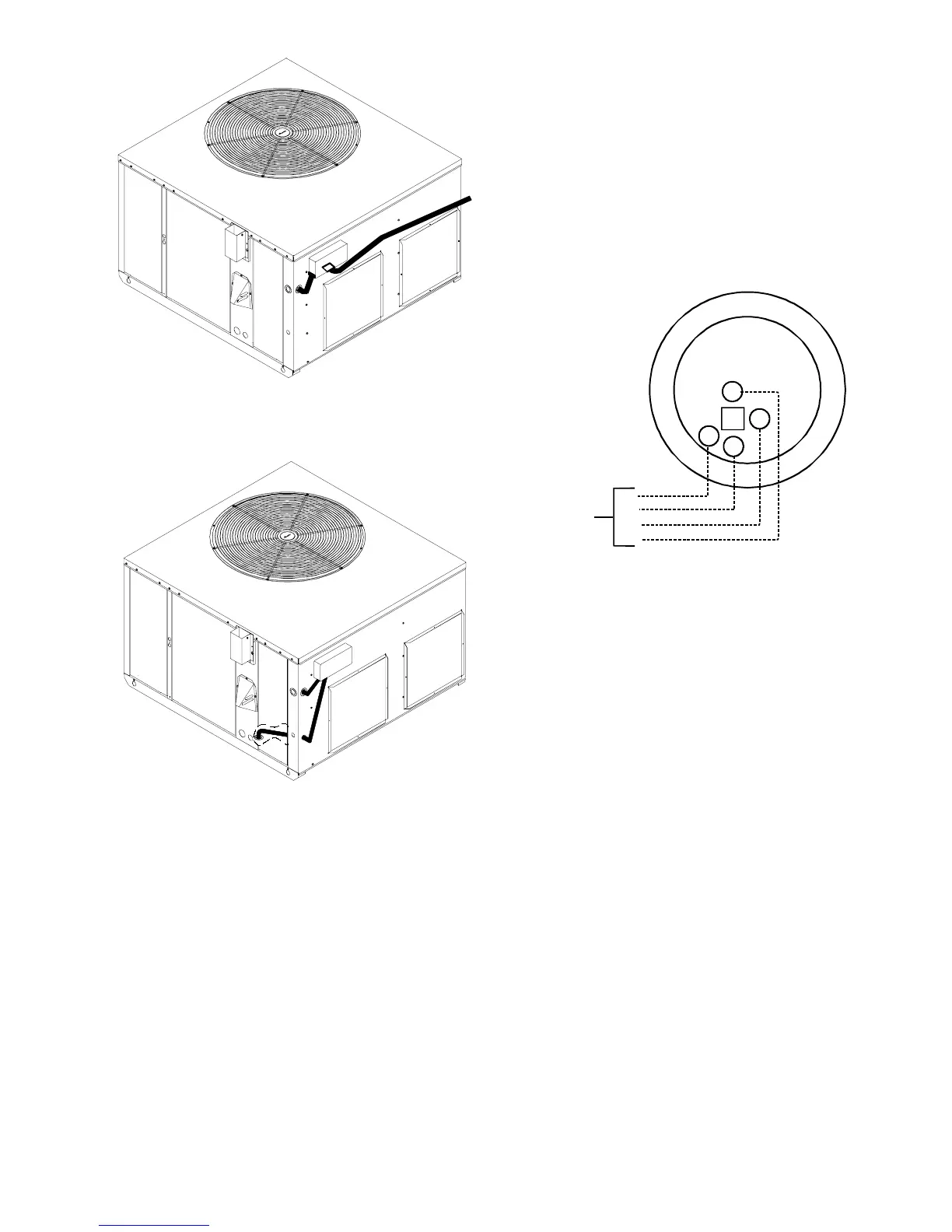

Electrical Power Directly To Junction Box
Electrical Power Routed Through
Bottom of Unit
Figure 5
Typical Electrical Wiring
Unit Voltage
The unit transformer is factory connected for 230V op-
eration. If the unit is to operate on 208V, reconnect the
transformer primary lead and induced draft blower mo-
tor leads as shown on the unit wiring diagram.
Heat Anticipator Setting
The heat anticipator in the room thermostat must be
correctly adjusted to obtain the proper number of heat-
ing cycles per hour and to prevent the room tempera-
ture from overshooting the room thermostat setting.
Heat anticipator must be set at 0.4 amps.
G
Y
W
R
R
W
Y
G
From
Unit
Figure 6
Typical Thermostat and Unit 24 V Wiring
Hookup
To Next Page
