SYSTEM OPERATION
Indoor
Coil
Accumulator
Outdoor
Coil
Thermostatic
Expansion
Valve
Check Valve
Reversing Valve
(De-Energized)
Indoor
Coil
Accumulator
Outdoor
Coil
Thermostatic
Expansion
Valve
Check Valve
Reversing Valve
(Energized)

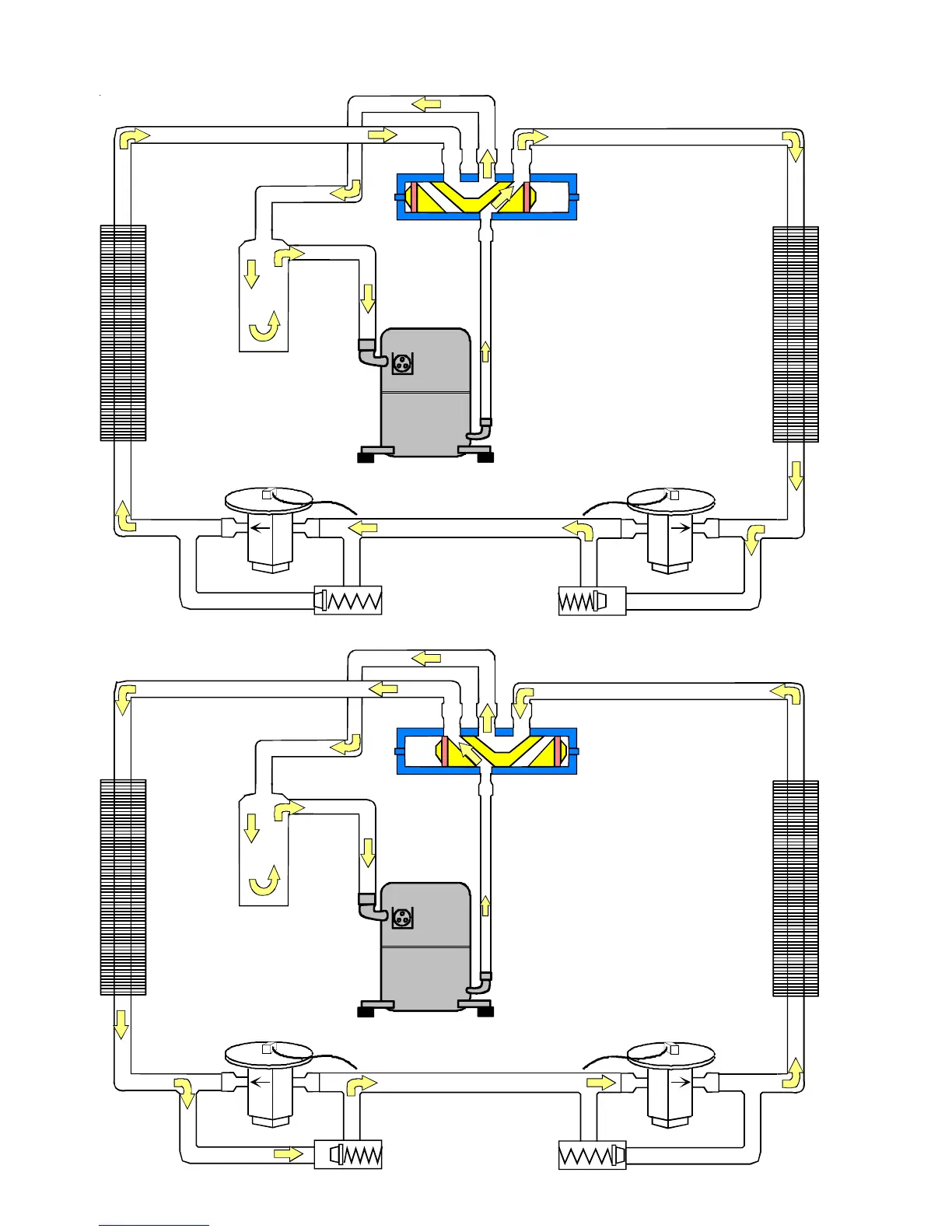

Typical Heat Pump System in Cooling
Typical Heat Pump System in Heating
Expansion device may not be as
shown. Refer to product parts
manual for actual part description.
Expansion device may not be as
shown. Refer to product parts
manual for actual part description.
