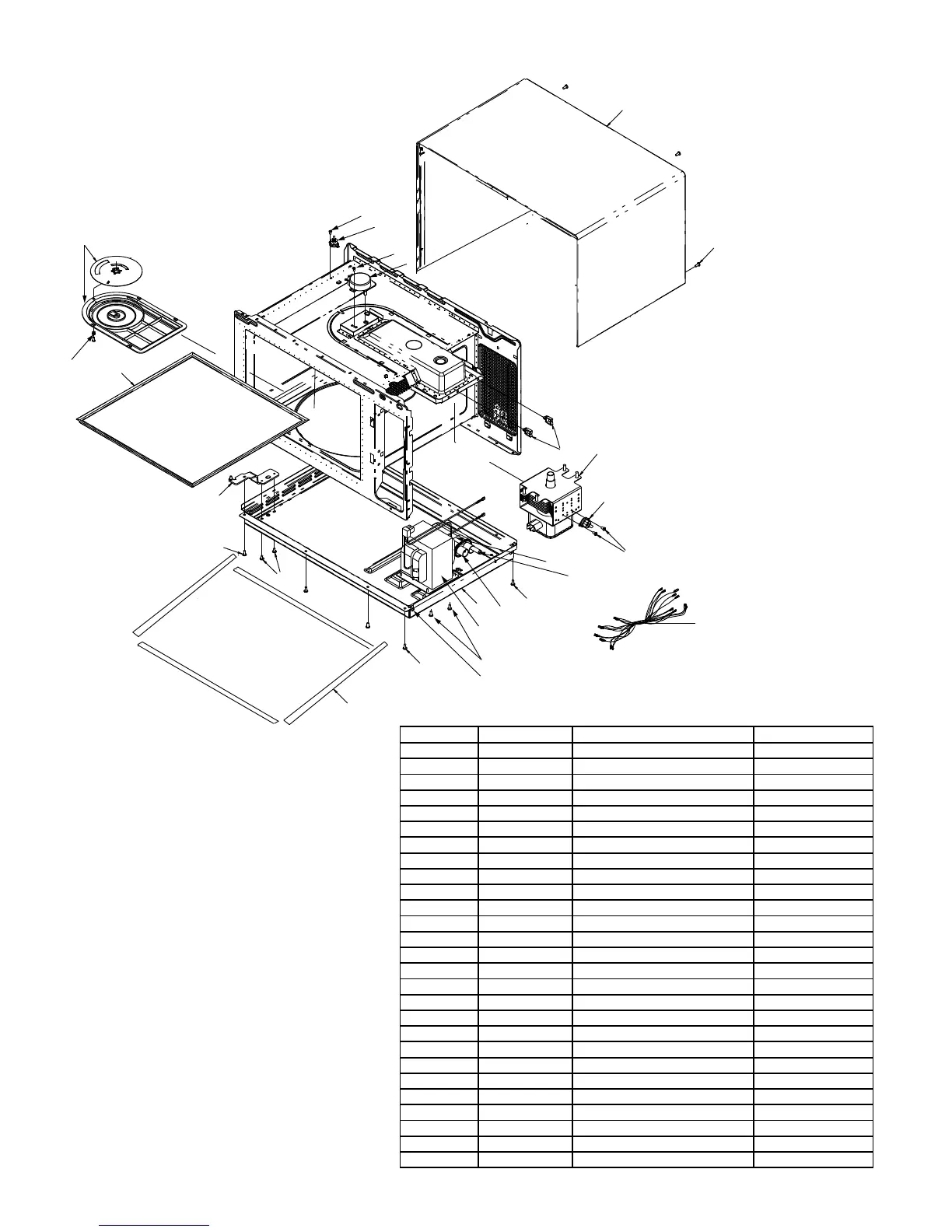

Components Location (Oven Cavity)
25
18
2
3
4
5
6
7
8
9
10
13
15
16
17
11
12
14
19
20
21
22
23
24
26
27
1
Reference Part Number Description Quantity
1 12002625 KIT, COVER / STIRRER BLADE/ RIVETS 1
2 54127062 SCREW 1
3 54127037 THERMAL CUTOUT, CAVITY 1
4 54127062 SCREW 1
5 56002013 MOTOR, ANTENNA 1
6 B5667304 CLIP -WIRE 2
7 14114048 MAGNETRON 1
8 54127038 THERMAL CUTOUT, MAG 1
9 54116025 SCREW 2
10 54127064 SCREW 1
11 54127061 SCREW 4
12 54127015 CAPACITOR- 1.05 1
13 54127001 BASEPAN ASSY 1
14 54127011 TRANSFORMER HV 1
15 54127064 SCREW 3
16 54127061 SCREW 2
17 54127029 HINGE, LOWER 1
18 54127019 TRAY, CERAMIC 1
19 54127045 WRAPPER 1
20 54127064 SCREW 4
21 54127042 HARNESS, MAIN 1
22 53001724 BRACKET, CAPACITOR 1
23 20036801 DIODE 1
24 R0000413 BASEPAN GASKET 1
25 54116064 RIVET ASSY 1
26 54116021 SCREW 4
27 54127066 SCREW 1
