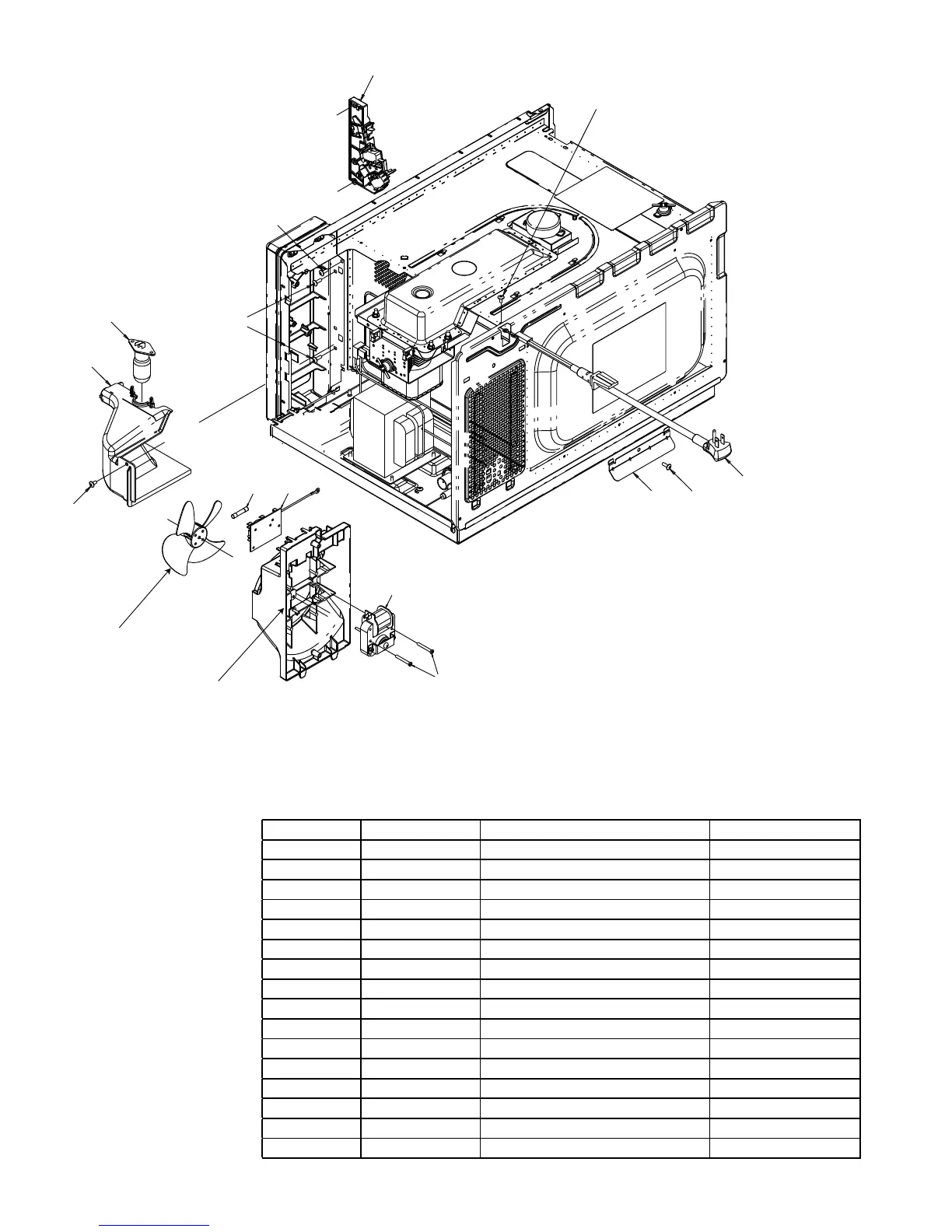

Amana RCS Series - Components Location (Blower; Interlock); Blower and Interlock Component Identification

13
1
2
3
4
1
5
6
7
8
9
10
11
12
13
16
15
14
Reference Part Number Description Quantity
1 54116017 SCREW 1
2 54127039 DUCT, MAG 1
3 54127049 LAMP / SOCKET ASSY 1
4 54116017 SCREW 2
5 54116017 SCREW 1
6 54127009 INTERLOCK SWITCH ASSY 1
7 54116017 SCREW 1
8 54127048 POWER CORD 1
9 54116017 SCREW 1
10 54127040 BRKT, INLET AIR 1
11 54127036 FUSE BLOCK / FILTER ASSY 1
12 20034003 FUSE 1
13 54127065 SCREW 2
14 54127056 MOTOR, BLOWER & BLADE 1
15 56112070 BLADE, FAN 1
16 54127059 BRKT, BLOWER 1
Components Location (Blower / Interlock)
