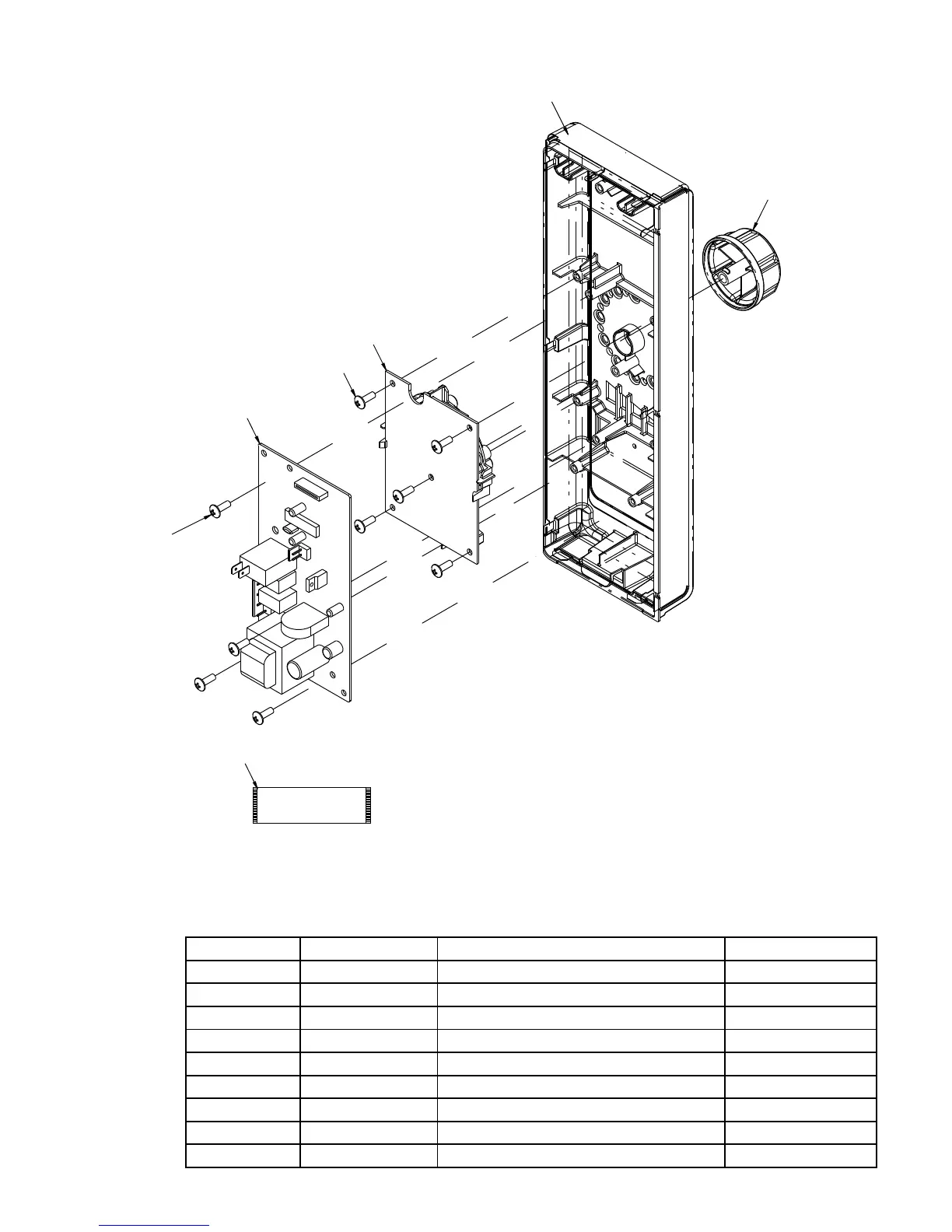

Components Location (Dial Control)
1
2
3
5
6
4
7
R
eference
Par
t Number
Description
Quantity
1
54127053
KNOB
1
2
54127002
ESC / T
OUCH P
ANEL
ASSY (RCS10DSE)
1
2
54127004
ESC / T
OUCH P
ANEL
ASSY (MCS10DSE)
1
3
54127031
BOARD, LED (RCS10DSE)
1
3
54127054
BOARD, LED (MCS10DSE)
1
4
54127067
SCREW
5
5
54127030
BOARD, HV / L
V
1
6
54127067
SCREW
4
7
54127032
HARNESS, PCB
1
13
15
Table of Contents
Table of Contents
2
Important Information
3
Important Safety Information
4
Important Safety Instructions
5
Save These Instructions
5
Installation
7
6Shfl¿Fdwlrqv
8
Quick Start Reference Guide (Electronic Mechanical Dial)
9
Manual Operation
10
Preprogrammed Pads
10
Quick Start Reference Guide (Electronic Control)
10
Components Location
12
Performance Testing Procedures
17
Component Testing Procedures
18
Troubleshooting
20
Schematic / Wiring Diagrams
