RS5290000 Rev. 0 58 April 1998
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit and discharge
capacitor through a resistor before attempting to service, unless test procedures require power to be connected.
Ensure all earthing wires are connected before certifying unit as repaired and/or operational.
WARNING

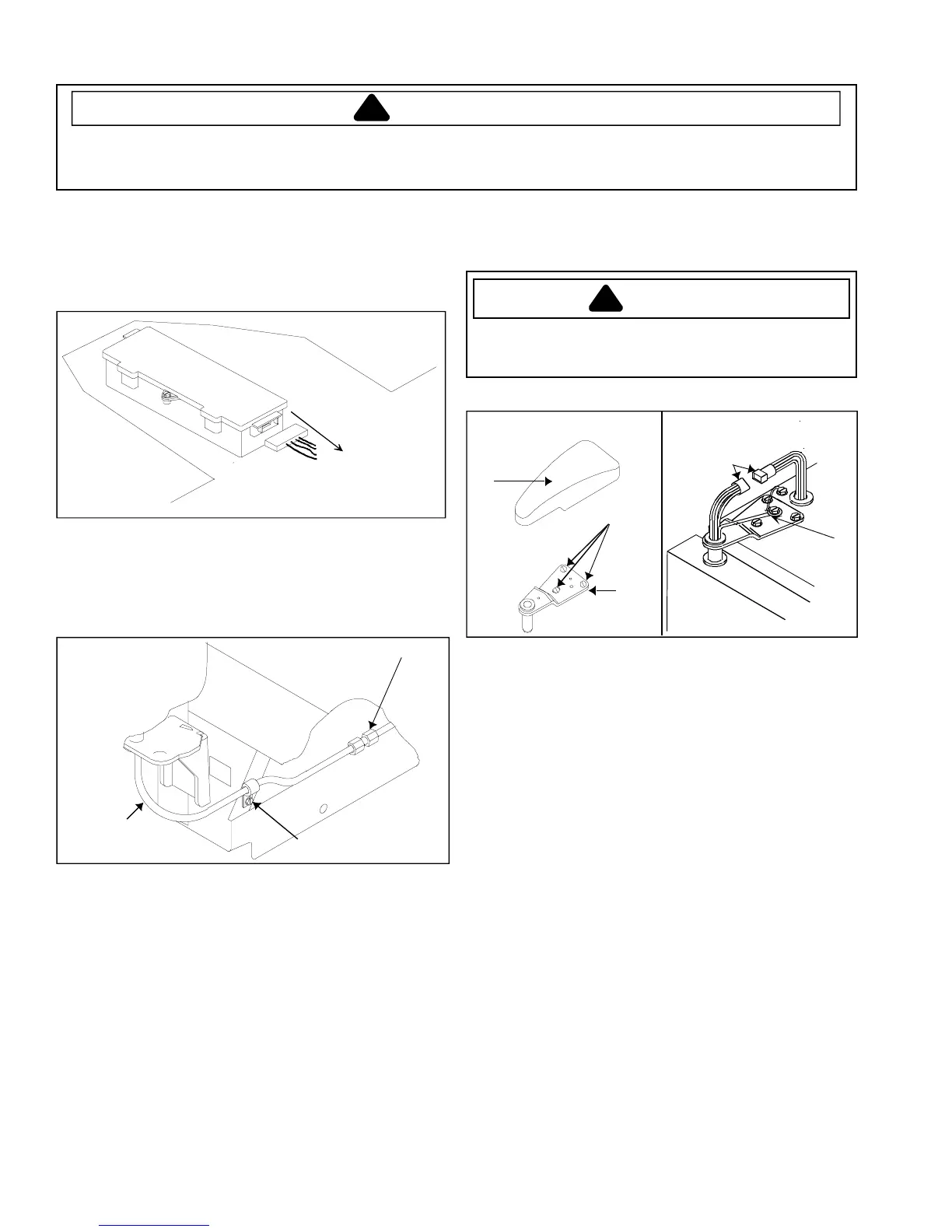

Disassembly
Freezer or Refrigerator Door
1. Remove toe grille.
Electronic Models
2. Unplug wiring harness from voltage box.
High Voltage Box
Dispenser Models
3. Loosen water tube clamp screw. Loosen plastic
water tube union nut. Pull water tube away from
union nut and through tube clamp.
Plastic water tube
union nut
Water tube
clamp screw
Water tube
Water Tube Connection
Door Stop and Top Door Closure
1. Remove door from cabinet.
2. Remove screw mounting top door closure.
3. Remove two screws mounting door stop to bottom
edge of door.
Freezer Door Top Hinge
1. Secure freezer door to cabinet in closed position
with strapping tape.
To prevent personal injury or property damage due to
door falling, always secure door to cabinet with
strapping tape before top hinge is removed.
Hinge
cover
Door
hinge
screws
Wire
harness
connectors
Top
hinge
Ground
wire
2. Remove freezer hinge cover.
3. Unplug cabinet to freezer door wiring harness
connector blocks.
4. Remove earthing screw and three freezer hinge to
cabinet mounting screws.
5. If present, slide hinge and nylon door bushing out
of door and off freezer door wiring harness.
Combination Door Closure and Lower Hinge
1. Remove door from cabinet.
2. Remove one bottom door closure mounting screw
and remove closure.
3. Remove two hinge mounting screws and door
hinge.
CAUTION
To Next Page
