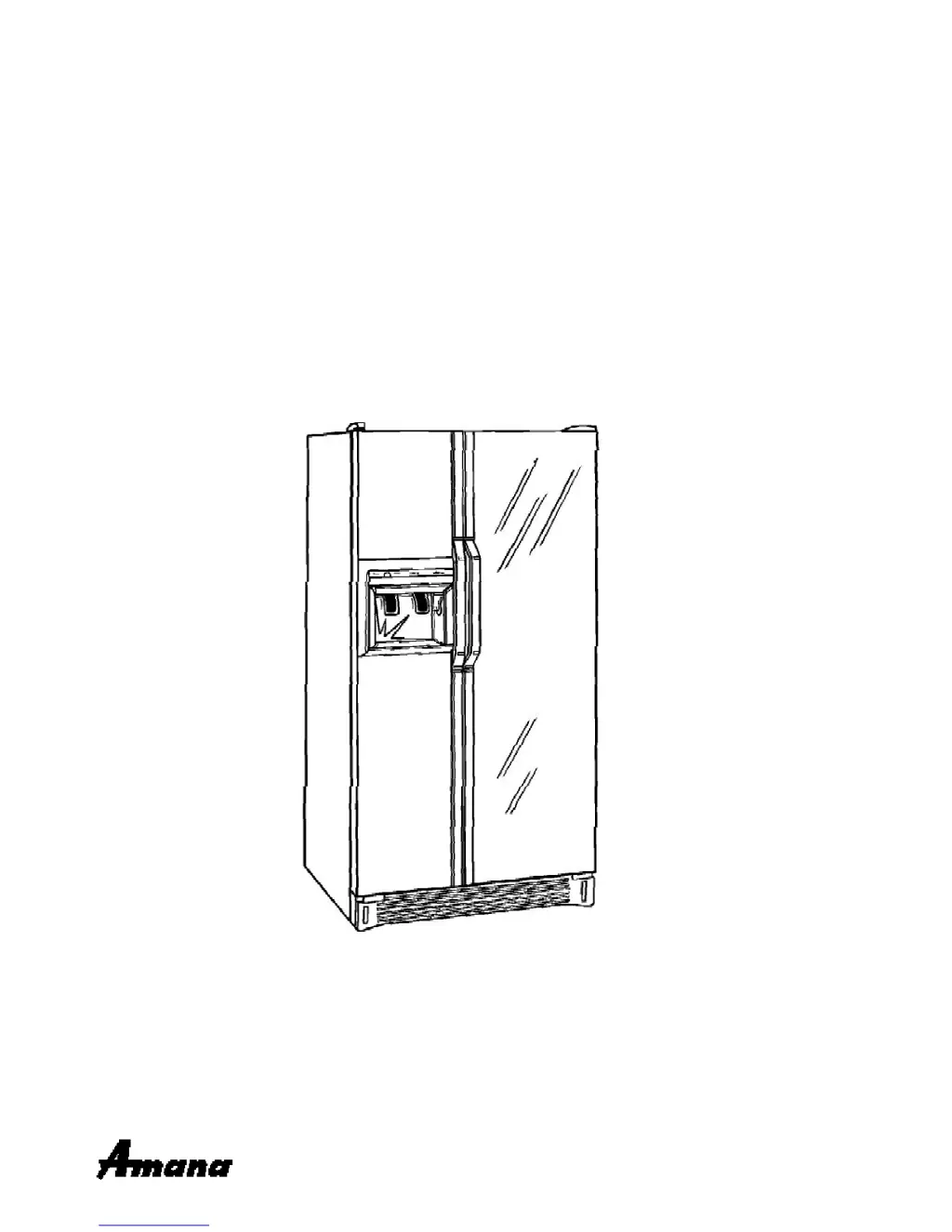

This Base Manual covers all
"V" series SxS Refrigerators
with foam-in-place doors.
Refer to individual Technical Sheet
for information on specific models.
Service
This manual is to be used by qualified appliance
technicians only. Amana does not assume any
responsibility for property damage or personal
injury for improper service procedures done by an
unqualified person. RS1300004
Revision 1
September 2001
“V” Series
Side-by-Side Refrigerators
with Foam-in-Place Doors

Table of Contents

Questions and Answers

  • D
    David MartinezJul 31, 2025
    What to do if my Amana V Series section is too warm?
    • M
      mjonesJul 31, 2025
      If your Amana Refrigerator section is too warm, consider the following: * Avoid excessive door opening. * Do not overload shelves. * Avoid placing hot food in the refrigerator. * Ensure the refrigerator temperature control is set correctly to a colder setting. * Check the door seal. Level the cabinet, adjust the hinges, or replace the door gasket if needed. * Make sure refrigerator airflow is not restricted. Check the damper operation, temperature control, and evaporator fan. * Check if the interior light stays on, as this can generate heat. Inspect the switch and adjust the door. * A faulty evaporator fan can cause this issue. Check the fan switch, fan, and wiring. * In some cases, a faulty compressor can be the cause and may require replacement.
  • W
    William CollinsAug 8, 2025
    Why is my Amana Freezer and Refrigerator too warm?
    • S
      Stephanie BerryAug 8, 2025
      If both the freezer and refrigerator sections of your Amana appliance are too warm, consider these potential causes: * Adjust the temperature controls if they are set too warm. * Check and correct poor door seals by leveling the cabinet, adjusting the hinges, or replacing the door gaskets. * Clean a dirty condenser or obstructed grille. * Check and replace faulty temperature controls if necessary. * Inspect the evaporator for heavy frost, indicating a defrost malfunction. * Look for a refrigerant shortage or flow restriction, and repair, evacuate, and recharge the system if needed.
  • T
    Tammy SalasAug 13, 2025
    What causes an Amana V Series section to be too cold?
    • L
      Larry JonesAug 13, 2025
      If your Amana Refrigerator section is too cold, it could be due to: * The refrigerator temperature control being set too cold; adjust as needed. * Improperly adjusted refrigerator airflow; adjust the beverage chiller and chiller fresh temperature controls, and ensure the deli boot seals against the air-supply orifice.
  • C
    Christopher PerezAug 17, 2025
    What causes my Amana Freezer to be too cold?
    • W
      wmillerAug 17, 2025
      If your Amana freezer section is too cold: * Adjust the temperature control if it is set too cold. * Test and replace the freezer temperature control if it's faulty.
  • L
    Laura KelleyAug 21, 2025
    Why does my Amana V Series Refrigerator run continuously and is too cold or warm?
    • N
      newmanmaryAug 21, 2025
      If your Amana unit runs continuously and the temperature is either too cold or too warm, it could be due to a faulty defrost timer, cold control, defrost terminator, or high-voltage board (on electronic units). Check these components and replace any that are faulty.
  • S
    scott86Oct 25, 2025
    Why is my Amana Refrigerator not running?
    • E
      Elizabeth MontoyaOct 25, 2025
      Your Amana Refrigerator might not be running due to several reasons: * There may be no power to the unit. Check the outlet, fuse box, or circuit breaker. * The power switch might be off or faulty (electronic models only). Check the switch on the high-voltage board. * The service cord could be faulty. Use a test light to check for current at the unit. * There might be low voltage. Check the input voltage. * The freezer temperature control could be faulty. Ensure all connections are tight. Jumper across the control to test it. * The timer could be faulty. Check with a test light and replace if needed. * The high-voltage board, compressor/condenser-fan relay (electronic models only), or defrost timer (non-electronic models) might be faulty. Check and replace if necessary. * T...
  • G
    garrettcarrieNov 3, 2025
    How to fix an Amana Refrigerator that runs continuously?
    • M
      Michael MunozNov 3, 2025
      If your Amana Refrigerator runs continuously, here are some things to check: * Adjust the temperature control if it's set too cold. * Test and replace the temperature control if it's faulty. * Clean a dirty condenser or obstructed grille. * Ensure a proper door seal by leveling the cabinet, adjusting the hinges, or replacing the door gasket(s). * Check the interior light switch and adjust or replace if necessary. * Inspect the condenser fan or evaporator fan, checking the fan switch, fan, and wiring; replace if necessary. * Check for refrigerant shortage or flow restriction; repair, evacuate, and recharge the system if needed. * Address refrigerant overcharge by evacuating and recharging the system. * Look for air in the system, repair any low-side air leaks, evacuate, a...

Summary

Important Information

Important Safety Notices and Symbols

Key safety warnings, notices for consumers, and explanation of safety symbols.

Product Design

Refrigeration, Temperature, and Defrost Systems

Overview of the refrigerator's cooling, temperature control, and defrost mechanisms.

Troubleshooting Procedure

Symptom-Based Troubleshooting Charts

Charts correlating symptoms to possible causes and corrective actions.

System Diagnosis and Symptom Analysis

Detailed analysis of system issues like overcharge, shortage, restriction, and air.

Service Procedures

Service Equipment and HFC134 a Basics

Evacuation, Charging, and Component Replacement

Steps for system evacuation, charging, and replacing parts like driers and compressors.

Disassembly

Door and Cabinet Component Disassembly

Water System and Machine Compartment Components

Electronic Controls

Keyboard, Display, and Basic Settings

Alarms, Program Mode, and Defrost Options

Electronic Testing and Control Board Checks

Procedures for testing electronic controls, sensors, and the control board.

Icemaker

Icemaker Operation, Specifications, and Testing

Icemaker Water Fill, Temperature, and Troubleshooting

Ice and Water Systems

Electronic Dispenser Operation and Features

Ice and Water System Troubleshooting
