amaran F22c - Connect a standard DMX controller; The DMX interface schematic; DMX Channel Selection

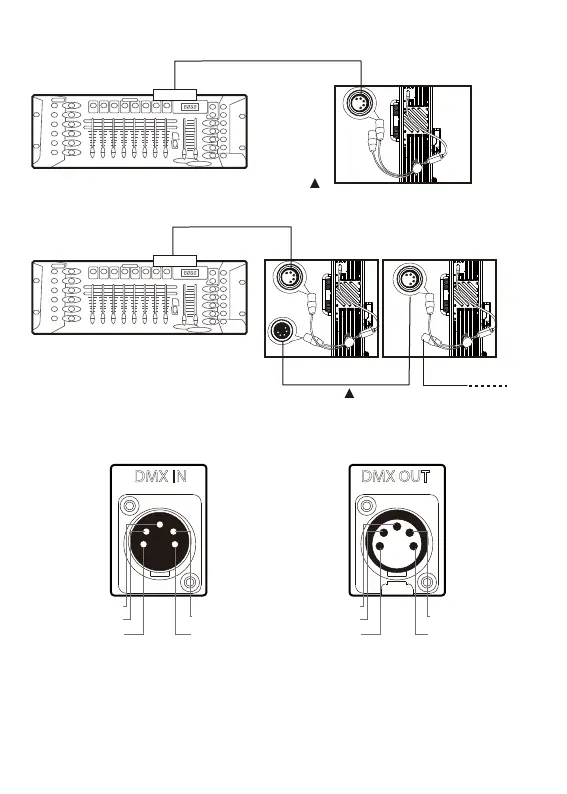

3.2 Connect a standard DMX controller
3.3 The DMX interface schematic:
3.4 DMX Channel Selection
In DMX mode, match the channel of your DMX controller with the light, and then
control the light via DMX controller.
-17-
Connecting DMX to only one light
DMX512
OUTPUT
DMX512
DMX
DMX512
OUTPUT
DMX512
DMX
DMX
DMX
DMX
Daisy chaining multiple lights using DMX
Signal Common
Data 2+ (Optional
Secondary Data Link)
Data 2- (Optional
Secondary Data Link)
Data 1-
(Primary Data Link)
Data 1+
(Primary Data Link)
PUSH
1
2
3
4
5
Data 2+ (Optional
Secondary Data Link)
Data 2- (Optional
Secondary Data Link)
Signal Common
Data 1-
(Primary Data Link)
Data 1+
(Primary Data Link)
PUSH
1
2
3
4
5
