Setting Up the Light
-7-
Front of the frame Back of the frame
2

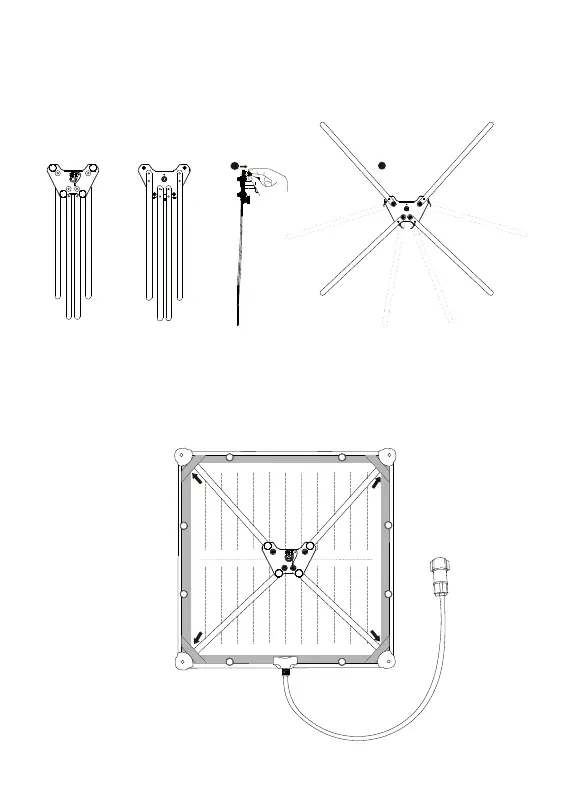

1. Disassembly and assembly of X-type frame. After pulling out the bolts in the
direction shown in the picture, unfold the four support rods, and then loosen the
fixing bolts to lock the support rods.
2.Disassembly and assembly of the lamp body and X-shaped bracket. Insert the
four support rods into the blocks at the four corners of the lamp body in turn.
When removing, pull out the four support rods in turn in the opposite direction.
1
